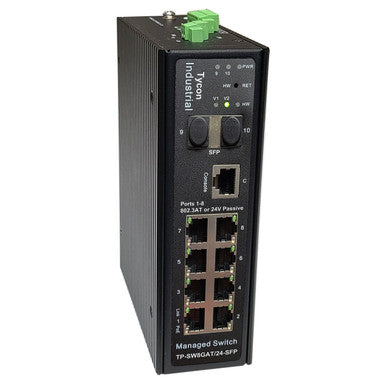

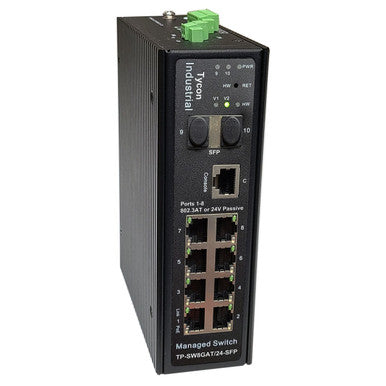

Tycon TP-SW8GAT/24-SFP 10-Port Industrial Managed Gigabit PoE Switch PoE DIN Rail Mount

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-SW8GAT/24-SFP 10-Port Managed Gigabit 802.3at/24V PoE Industrial Switch

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TP-SW8GAT/24-SFP is a managed industrial Layer 2+ Gigabit PoE switch with eight configurable 802.3af/at or 24V passive PoE ports, two 1Gb SFP fiber ports, dual DC inputs, and DIN rail mounting.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Managed industrial Layer 2+ Gigabit Ethernet switch
• Eight configurable 802.3af/at or passive 24V PoE ports
• Up to 30W PoE per port
• Maximum total PoE power budget of 240W
• Two 1Gb SFP ports supporting single-mode or multimode fiber transceivers
• 10/100/1000 Mbps Ethernet with auto-negotiation
• Management via WEB, CLI, TELNET, SSH, and SNMP
• PoE port enable/disable, mode control, priority, power limitation, scheduling, PD detection, and PD alive check
• VLAN, STP/RSTP/MSTP, ERPS ring, link aggregation, IGMP snooping, ACL, and QoS support
• Layer 3 functions include virtual VLAN interface, ARP, and static routing
• Dual 37-57VDC power inputs for primary and backup power
• 6kV normal-mode and 2kV differential-mode surge protection
• Conformal-coated electronics for moisture protection
• Metal enclosure with integrated DIN rail and wall mounting
• IP40 environmental protection
• Wide -40°C to +75°C operating temperature range

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: TP-SW8GAT/24-SFP
• Switch Type: Managed Industrial Layer 2+ PoE Switch
• Ethernet Ports: 8 x 10/100/1000 Mbps RJ45
• PoE Ports: Ports 1-8 configurable for IEEE 802.3af/at or 24V passive PoE
• Maximum PoE Output: 30W per port
• Total PoE Power Budget: Up to 240W
• Fiber Ports: 2 x 1Gb SFP
• Fiber Compatibility: 1G single-mode or multimode
• Ethernet Transmission Speed: 10/100/1000 Mbps auto-negotiation
• Connections: Shielded RJ45 and shielded SFP/LC, grounded to case
• Power Input: Dual 37-57VDC wire terminal inputs
• Maximum Power Input Wire Size: 12AWG
• Self Consumption: Less than 3W typical
• PoE Protection: Over-voltage, over-current, and short-circuit protection
• Surge Protection: 6kV normal mode / 2kV differential mode
• ESD Protection: 15kV air / 8kV contact
• Management Methods: WEB, CLI, TELNET, SSH, SNMP
• VLAN: Up to 4094 active VLANs; port-based, IEEE 802.1Q, 802.1ad Q-in-Q, private VLAN, GARP/GVRP
• Spanning Tree: STP 802.1d, RSTP 802.1w, MSTP 802.1s
• Ring Network: G.8032 ERPS, less than 20ms switching
• Link Aggregation: Static/manual and LACP
• IGMP: IGMP v1/v2/v3 snooping; up to 256 multicast groups
• Jumbo Frames: Up to 9216 bytes
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88Mpps at 64 bytes
• Forwarding Mode: Store and Forward
• Address Table: 8K MAC, self-learning
• RAM / Flash: 1Gb / 128MB
• Environmental Protection: IP40
• Operating Temperature: -40°C to +75°C (-40°F to 167°F)
• Operating Humidity: 5% to 95% RH, non-condensing
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• MTBF: 50,000 hours
• Certifications: CE, FCC, RoHS
• Dimensions: 165 x 145 x 53.5mm (6.5 x 5.7 x 2.1 in.)
• Weight: 0.9kg (2 lb.)
• Manufacturer Warranty: 5 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor network installations
• Cameras and wireless radios
• Factory networks
• PoE lighting applications
