Tycon TP-SW8GBT/AT/PSV-U 10-Port Gigabit PoE Industrial Network Switch

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TP-SW8GBT/AT/PSV-U 10-Port Managed Gigabit PoE Industrial Network Switch

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

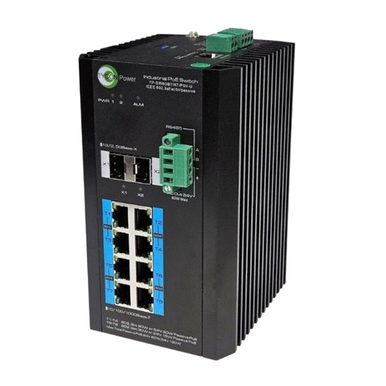

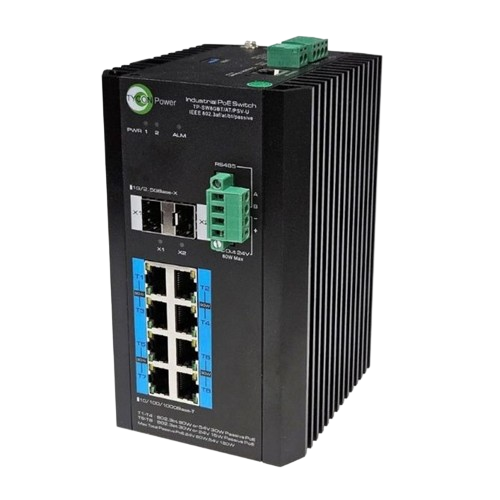

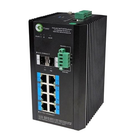

Tycon TP-SW8GBT/AT/PSV-U is an industrial managed PoE switch with eight configurable Gigabit PoE ports, two 1/2.5Gb SFP ports, 12-57VDC dual inputs, and up to 240W total output.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Industrial Layer 2 managed Gigabit PoE switch
• Ports 1-4 configurable for IEEE 802.3bt 90W or passive 54V 30W PoE
• Ports 5-8 configurable for IEEE 802.3af/at 30W or passive 24V 15W PoE
• Two 1.0/2.5Gb SFP ports support single-mode or multimode fiber transceivers or RJ45 transceivers
• 12-57VDC dual power inputs support primary and backup power
• Integrated DC/DC function supports PoE operation across the specified DC input range
• Up to 240W total output at 57VDC input
• PoE watchdog can detect and restart a connected device that stops working
• Q-PoE provides PoE power during switch startup
• Management via WEB, CLI, TELNET, SSH, and SNMP
• VLAN, port mirroring, port isolation, IGMP snooping, LLDP, storm control, and PoE management
• STP, RSTP, MSTP, ERPS ring topology, link aggregation, QoS, and jumbo frame support
• Configurable alarm relay and RS485 serial interface
• USB 3.0 port for charging or powering USB devices
• 24VDC auxiliary power output
• Surge-protected ports and shielded RJ45 connections
• Fanless metal enclosure
• DIN rail, wall, or desktop mounting
• IP40 environmental protection
• -40°C to +75°C operating temperature range

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: TP-SW8GBT/AT/PSV-U
• Switch Type: Industrial Layer 2 Managed Gigabit PoE Switch
• Ports 1-4: IEEE 802.3bt 90W or passive 54V 30W PoE
• Ports 5-8: IEEE 802.3af/at 30W or passive 24V 15W PoE
• Ports 9-10: 1.0/2.5Gb SFP
• Ethernet Speed: 10/100/1000 Mbps auto-negotiation
• SFP Compatibility: 1G/2.5G single-mode or multimode fiber or RJ45 transceivers
• Connections: Shielded RJ45 and shielded SFP/LC, grounded to case

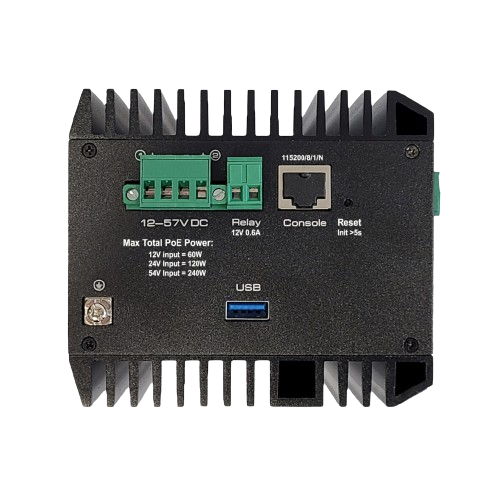

• Power Input: Dual 12-57VDC wire-terminal inputs
• Maximum Wire Size: 12AWG
• Total Power Output at 57VDC Input: 240W
• Total Power Output at 24VDC Input: 120W
• Total Power Output at 12VDC Input: 60W
• Self Consumption: Less than 11W typical
• PoE Standards: IEEE 802.3af/at/bt and passive PoE
• PoE Protection: Over-voltage, over-current, and short-circuit protection
• Data Port Surge Protection: IEC61000-4-5, ±6kV
• ESD Protection: IEC61000-4-2 Level 3, 15kV air / 8kV contact
• Management: WEB, CLI, TELNET, SSH, SNMP
• VLAN: Up to 4094 active VLANs; IEEE 802.1Q
• Spanning Tree: STP 802.1d, RSTP 802.1w, MSTP 802.1s
• Ring Network Protocol: G.8032 ERPS, less than 20ms
• Link Aggregation: Manual aggregation and LACP
• IGMP: IGMP v1/v2 snooping; up to 256 multicast groups
• QoS: IEEE 802.1p COS and DSCP classification
• Jumbo Frame Support: 9kB
• Switching Capacity: 28Gbps non-blocking
• Packet Forwarding Rate: 19.344Mpps
• Forwarding Mode: Store and Forward
• Memory: 165MB
• MAC Table: 16K MAC, self-learning
• Port Buffer: 2MB
• Console Port: 115200 baud
• Alarm Relay: 12V, 0.6A switching
• Serial Interface: RS485
• USB Port: USB 3.0 for charging/powering USB devices
• DC Power Output: 24VDC, 0.25A
• Ethernet Cable Compatibility: Category 5 or higher
• Ethernet Network Distance: Up to 100m
• Fiber Optical Range: Up to 120km, dependent on compatible transceiver
• Environmental Protection: IP40
• Operating Temperature: -40°C to +75°C (-40°F to 167°F)
• Operating Humidity: 5% to 95% RH, non-condensing
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• MTBF: 50,000 hours
• Certifications: CE, FCC, RoHS
• Dimensions: 163 x 110 x 95mm (6.4 x 4.3 x 3.7 in.)
• Weight: 1.724kg (3.8 lb.)
• Manufacturer Warranty: 3 years

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Outdoor network installations
• Off-grid systems
• Cameras and wireless radios
• PoE lighting applications
• Factory floor networks
