TYCON
Tycon Voltage Converter 18-32VDC IN. 12V @ 1.25A 15W OUT. 12inch 18AWG wires
Product identifier
SKU
TP-VR-2412
$53.29
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

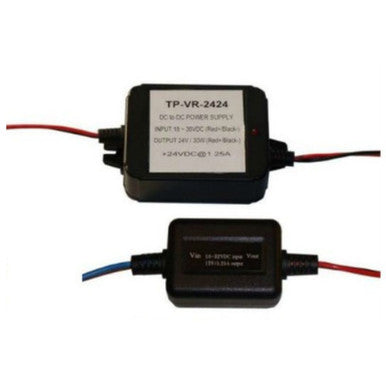

The TP-VR-2412 series of sealed DC to DC regulators offer high output regulation in a compact sealed enclosure.
They have 12" long 18AWG leads on input and output for universal connectivity.
Features
- Compact Size, Sealed Design
- High Output, Short Circuit Protected
- 12" 18AWG Lead Wires
Applications
- Security Systems
- Remote Power Systems
- Marine Applications
- Wireless Base Stations
Dimensions (LxWxH)
- 2.75 x 1.25 x 1” (70x32x25mm)
Weight
- 1.5oz (43g)
Technical Description
- DC Input Voltage Range: 18V to 32VDC
- DC Voltage Output: 12VDC @ 1.25A
- Maximum Power Dissipation: 15W
- Efficiency: 80%
- Load / Line Regulation: 5% / 1%
- Ripple / Noise: 2% / 5%
- Wire Gauge: 18AWG
- Lead Wire Length: 12"
- Operating Temperature: -40°F to 149°F (-40°C to +65°C)
- Operating Humidity: 0 to 99% RH
More Information
MFRPartNum:
TP-VR-2412
Datasheet:
