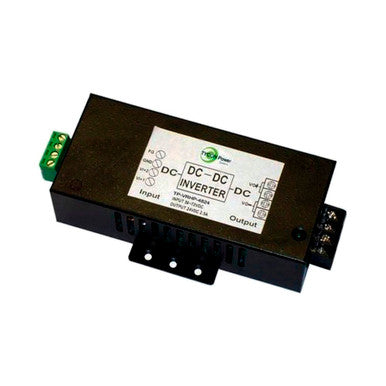

Tycon TP-VRHP-1224 DC to DC Converter 70W 24VDC DIN Rail
Product identifier
SKU
TP-VRHP-1224
$131.74
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
The TP-VRHP series of DC to DC converters offer high output voltage conversion in a compact metal enclosure. They have wire terminal inputs and outputs for maximum flexibility. The units come with DIN rail adapters for DIN rail mounting. They provide power output up to 250W.
Features
- High Output, Short Circuit Protected
- Metal Enclosure, DIN rail mounting
- Industrial Temperature Operation
- Most Models Isolated Input to Output
- Low Voltage Disconnect
Applications
- Security Systems
- Remote Power Systems
- Telecom Applications
- Wireless Base Stations
Dimensions (LxWxH)
- 5.24 x 3 x 1.5” (133x75x38mm)
Weight
- 10.5oz (298g)
Technical Description
- DC Input Voltage Range +/-: 10 to 15VDC
- DC Voltage Output: 24VDC @ 2.9A
- Maximum Power: 70W
- Input / Output Isolation: NonIsolated
- Efficiency: >85%
- Load / Line Reg: 5% / 1%
- Ripple / Noise: 2% / 5%
- Isolation: 1500VDC Min. / 100M Ohms Min
- Wire Gauge: 12AWG Max
- Protections: Short Circuit, Overvoltage, Overload
- Operating Temp: -22°F to 149°F (-30°C to +65°C)
- Operating Humidity: 0 to 90% RH
More Information
MFRPartNum:
TP-VRHP-1224
