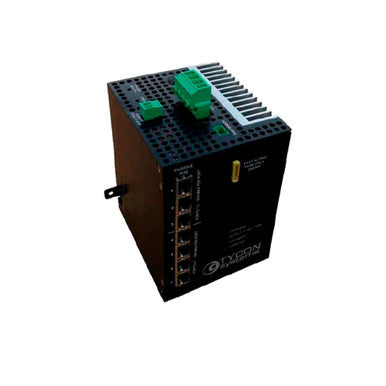

Tycon TPDIN-SC48-20 48V 20A MPPT Smart Solar Charge Controller Passive PoE Switch

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Tycon TPDIN-SC48-20 48V 20A MPPT Solar Charge Controller 7-Port Gigabit PoE Switch

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Tycon TPDIN-SC48-20 combines a 48V 20A MPPT solar charge controller with remote monitoring and a 7-port Gigabit PoE switch supporting selectable 802.3at, 24V, and 48V outputs.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 48VDC 20A MPPT solar charge controller
• Integrated 7-port Gigabit Layer 2 PoE switch
• Ports 1-4 selectable for IEEE 802.3at, 48V passive PoE, 24V passive PoE, or OFF
• Ports 5-7 selectable for 48V passive PoE, 24V passive PoE, or OFF
• Maximum 0.645A output per PoE port
• Temperature-compensated smart battery charging
• Supports GEL, AGM, wet lead-acid, and lithium battery charging profiles
• Balance charge mode for applicable battery profiles
• Remote monitoring and control through web browser and SNMP
• Measures and logs battery voltage, battery current, input voltage/current, load current, and battery temperature
• Programmable ping watchdog supports automatic PoE port power cycling
• Automatic low-voltage battery disconnect and recovery
• 24VDC or 48VDC selectable auxiliary wire-terminal output
• Auxiliary output supports temperature, voltage, or time-based control
• Automated email alerts support user-programmed limits
• Solar input or compatible external DC source can be used for battery charging
• Surge and overload protection on inputs and outputs
• DIN rail or screw-tab mounting

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Tycon
• Model: TPDIN-SC48-20
• Controller Type: MPPT
• Battery Voltage: 48VDC
• Battery Current: 20A maximum
• Battery Compatibility: GEL, AGM, wet lead-acid, lithium
• Solar Input Voltage: 56-100VDC
• Maximum Solar Panel Open-Circuit Voltage: 100VDC
• Maximum Solar Panel Power-Point Voltage: 90VDC
• Solar Input Current: 20A maximum
• Typical Controller Efficiency: 96% at specified 68VDC input, 10A load, 25°C conditions
• MPPT Tracking Frequency: 19Hz
• Temperature Compensation: -3mV/°C/2V
• Low-Voltage Disconnect: 42-48V, configurable through web interface
• Low-Voltage Disconnect Recovery: 44-54V, configurable through web interface
• PoE Switch: 7 x RJ45 10/100/1000 Mbps Gigabit Ethernet ports
• Switch Type: Layer 2 with automatic crossover
• Ports 1-4 PoE Modes: IEEE 802.3at, 48VDC passive, 24VDC passive, or OFF
• Ports 5-7 PoE Modes: 48VDC passive, 24VDC passive, or OFF
• PoE Output Current: 0.645A maximum per port
• Passive PoE Pinout: Pins 4,5 V+ and pins 7,8 V-; Mode B
• Auxiliary DC Output Voltage: 24VDC or 48VDC, selectable
• Auxiliary DC Output Current: 2.25A maximum continuous; 3A maximum peak
• Maximum Combined Output: 222W total
• 48VDC Output Allocation: Up to 150W
• 24VDC Output Allocation: Up to 72W
• Port ESD Protection: IEC 61000-4-2, 15kV air / 15kV contact
• EFT Protection: IEC 61000-4-4, 40A (5/50ns)
• Lightning Protection: IEC 61000-4-5, 25A (8/20µs)
• Measurement Accuracy: ±0.1V / ±0.1A / ±1°C
• Power Consumption: 3.5W typical
• Accessibility: Web browser and SNMP
• Data Logger: FIFO, 15,000 data sets with programmable logging interval
• Solar and Battery Wire Size: 8AWG
• Auxiliary Output Wire Size: 12AWG
• Fuse: 58V 20A automotive mini blade type
• Mounting: DIN rail or 4mm screw tab
• Operating Temperature: -40°C to +65°C (-40°F to 149°F)
• Operating Humidity: 0% to 90% RH
• Dimensions: 151 x 111 x 138mm (5.9 x 4.4 x 5.4 in.)
• Weight: 1.5kg (3.3 lb.)
• MTBF: Greater than 100,000 hours
• Certifications: FCC/CE EN55022, CE EN55024, CE/UL EN60950-1
• Manufacturer Warranty: 3 years
