Tycon Adapter Kit to add 4 additional 250-360W panels to the TPSM-350x2-TP
Product identifier
SKU
TPSM-350x6-AdapterKit
$900.50
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS

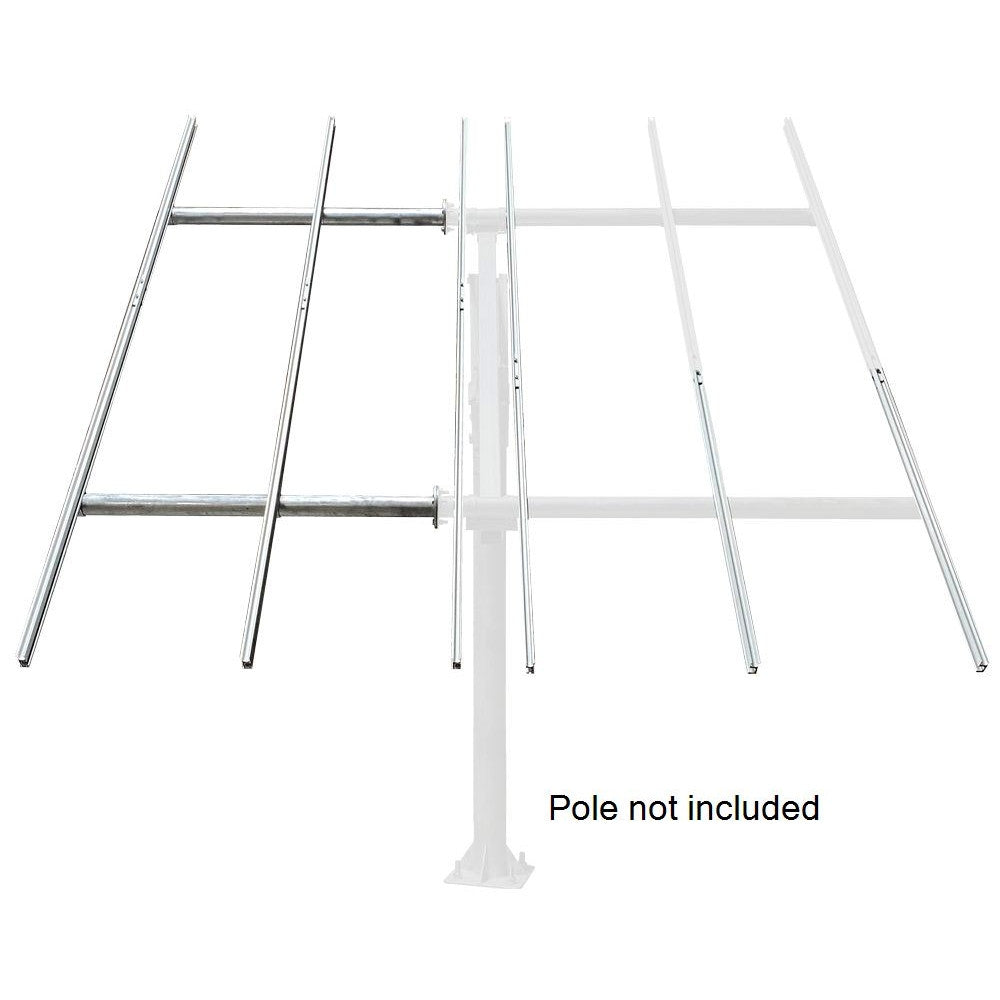

Tycon Solar’s TPSM-350x6-AdapterKit has all components needed to convert the TPSM-350x2-TP 2 panel solar mount to a 6 panel solar mount.
The kit consists of Qty 10 mounting rails, Qty 2 cross beam extensions and all the hardware needs for assembly including solar panel mounting brackets.
Features
- All components required to add an additional 4x 60-72 cell panels (nominally 230-360 watt) to the TPSM-350x2-TP 2 panel mount
- Stainless Steel, Galvanized Steel, and Anodized Aluminum constructio
Crate Outside Dimensions
- 1828 x 203 x 203mm (72 x 8 x 8”)
Shipping Weight
- 30kg (65lbs)
Technical Description
- U-Bracket with Grounding Plate: 2
- U-Bracket: 6
- 76 x 1300mm Extension Cross Beam: 2
- M8*30 Stainless Bolt with Flat Washer, Lock Washer and Nut: 16
- M12*36 Stainless Bolt with Flat Washer, Lock Washer and Nut: 8
- Vertical Rail – 1828mm Length: 4
- Vertical Rail: Extension – 1370mm Length 6
- Rail Couplers: 8

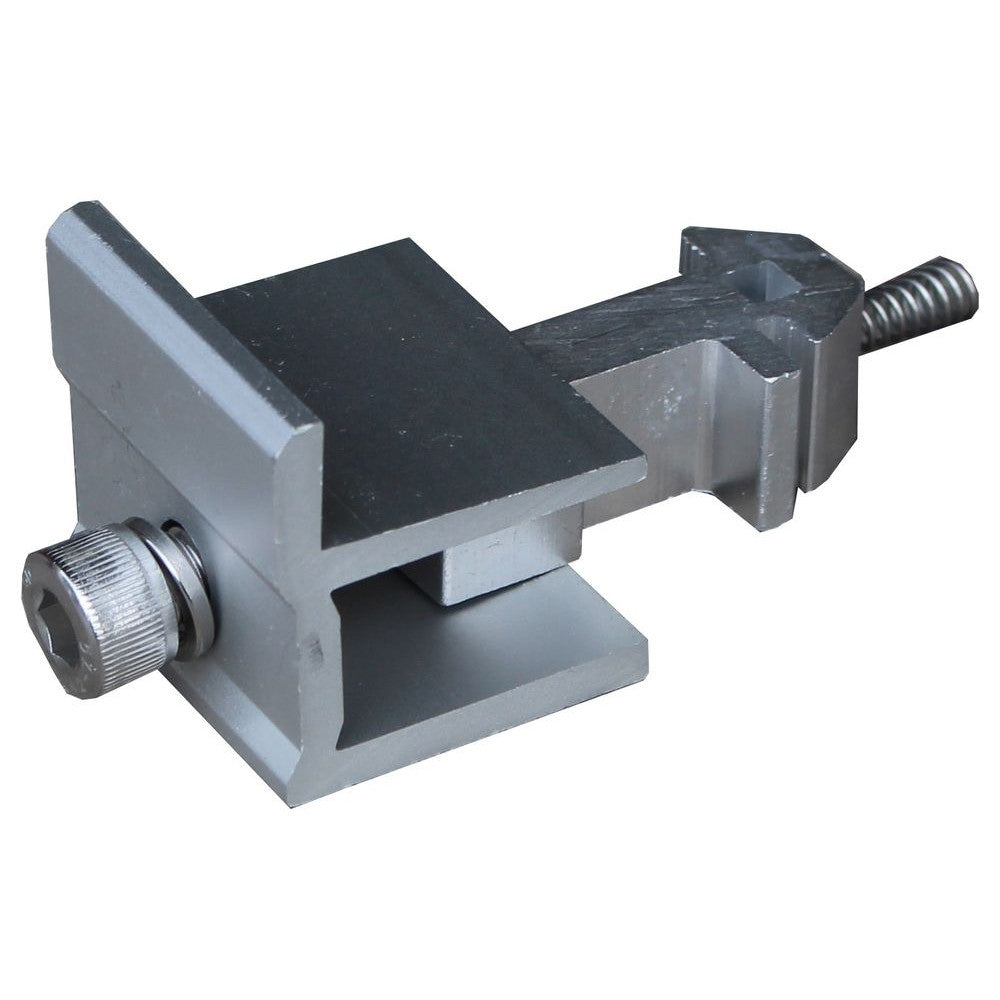

- Solar Panel End Clamps (35-50mm): 8
- Solar Panel Inner Clamps (35-50mm): 10
More Information
MFRPartNum:
TPSM-350x6-AdapterKit
