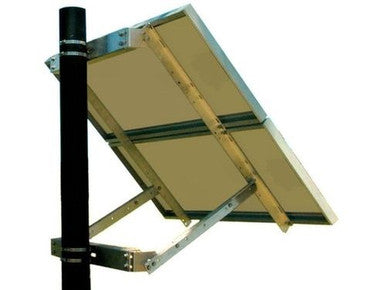

Tycon TPSM-80x4-UNI Solar Panel Mount 2-4 80W Panels Aluminum Pole
Product identifier
SKU
TPSM-80x4-UNI
$416.16
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
The TPSM series of solar panel mounts are designed to be used with Tycon solar panels but are flexible in their design and can be used with other manufacturer’s solar panels. The low cost simple designs reduces installation costs, saving the installer precious install time. The construction is heavy duty aluminum with all stainless steel hardware for very long service life in the harshest conditions.
Features
- Simple, Low Cost Design
- Flexible Side of Pole Mounting ( up to 4.5” dia. Pole)
- Heavy Duty Aluminum and Stainless Steel components for long life
- Easy to Install – Reduced Installation Time
- Quick tilt adjustment
- Certified for up to 110MPH Winds
Applications
- 2-4 80W Solar Panels
- Remote Power Systems
Shipping Dimensions
- 1372 x 152 x 127mm (54” x 6” x 5”)
Shipping Weight
- 10.6kg (23.3lb)
Technical Description
- Solar Panel Width: Up to 54”
- Typical Solar Panel Size: 120W to 360W
- Solar Panel Mount Type: Edge Clip
- Pole Diameter: 2” to 4.5”
- Pole Attach: Stainless Steel Hose Clamp (5/16” driver)
- Wind Speed Rating: 90MPH
- Tilt Adjustment: 15° to 65°
