UBIQUITI

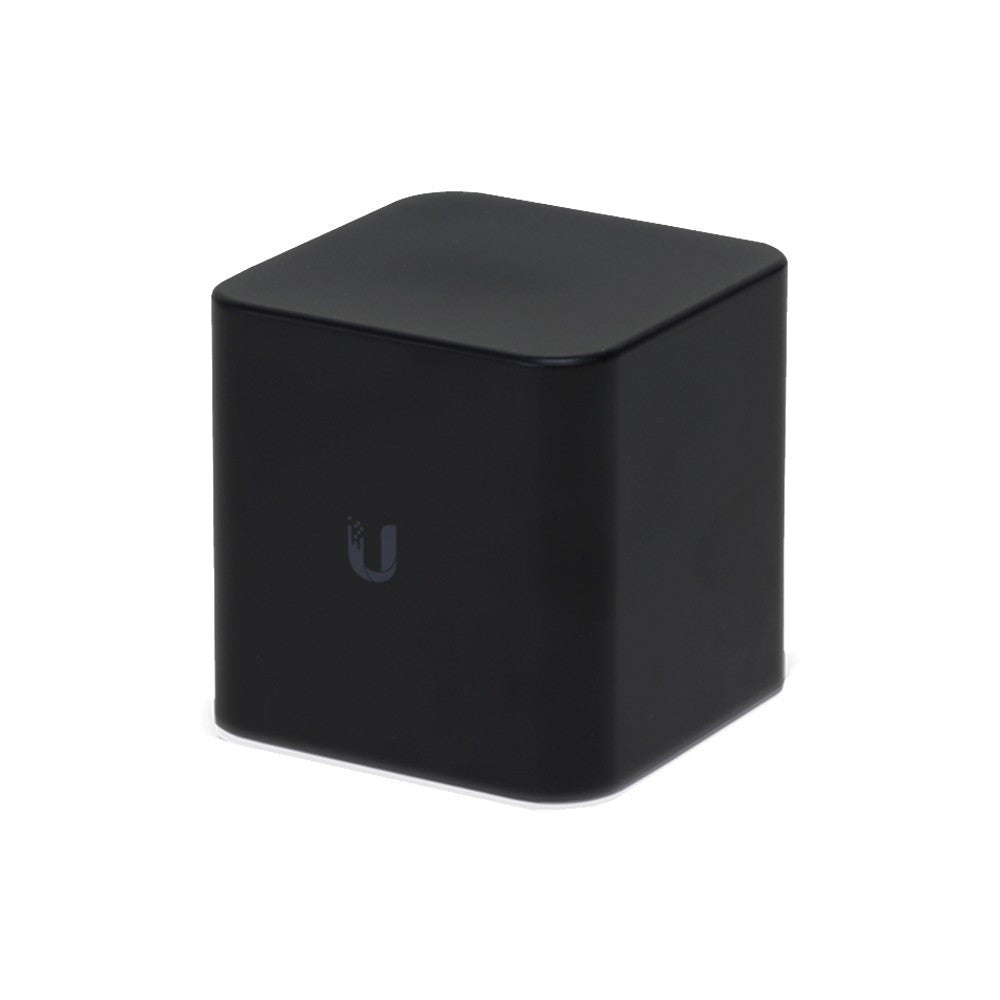

Ubiquiti UISP airCube Home WiFi Access Point (US Version)
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
High-performance home WiFi access point made to interoperate with airMAX CPE devices, with remote management by UISP.
PRODUCT TYPE / CATEGORY
Networking
Wireless Access Points
KEY FEATURES
• 802.11ac 2x2
• Integrated 24V PoE passthrough via included PSU
• UISP support for remote network management
• 87.8 x 89.5 x 89.25mm (3.46 x 3.52 x 3.51")
• 280 g (9.88 oz)
• International version ACB-AC

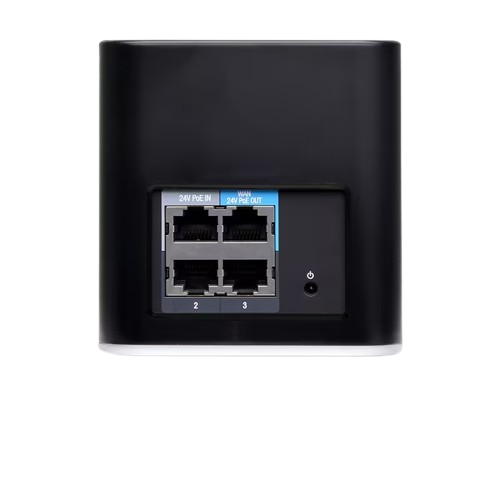

• Hardware Networking interface: (4) Gigabit Ethernet ports
• Management interface: WiFi / Ethernet
• Power method: 24V DC, 0.83A PoE 24V In on Ethernet port 1
• Power supply: 24V DC
• Supported voltage range: 22—26V
• Max. power consumption: 8.5W
• PoE Out: Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
• Operating frequency: 2.4 GHz/5 GHz
• Antenna gain 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
• Max. speeds 2.4 GHz: 300 Mbps
• 5 GHz: 866.7 Mbps
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: ACB-AC-US
• Product Type: Wireless Access Points
• 802.11ac 2x2
• Integrated 24V PoE passthrough via included PSU
• UISP support for remote network management
• 87.8 x 89.5 x 89.25mm (3.46 x 3.52 x 3.51")
• 280 g (9.88 oz)
• International version ACB-AC
• Hardware Networking interface: (4) Gigabit Ethernet ports
• Management interface: WiFi / Ethernet
• Power method: 24V DC, 0.83A PoE 24V In on Ethernet port 1
• Power supply: 24V DC
• Supported voltage range: 22—26V
• Max. power consumption: 8.5W
• PoE Out: Controllable 24V PoE Out (4, 5+, 7, 8-) on WAN Port
• Operating frequency: 2.4 GHz/5 GHz
• Antenna gain 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
• Max. speeds 2.4 GHz: 300 Mbps
• 5 GHz: 866.7 Mbps
• Max. TX power: 22 dBm
• ESD/EMP protection: ± 24 kV Contact / Air
• LED: Status
• Operating temperature: -10 to 50° C (14 to 122° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
