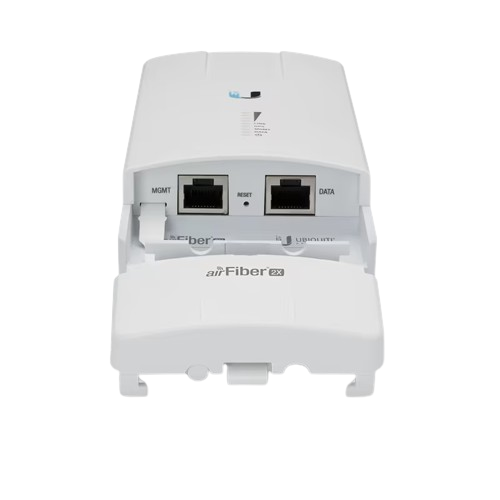

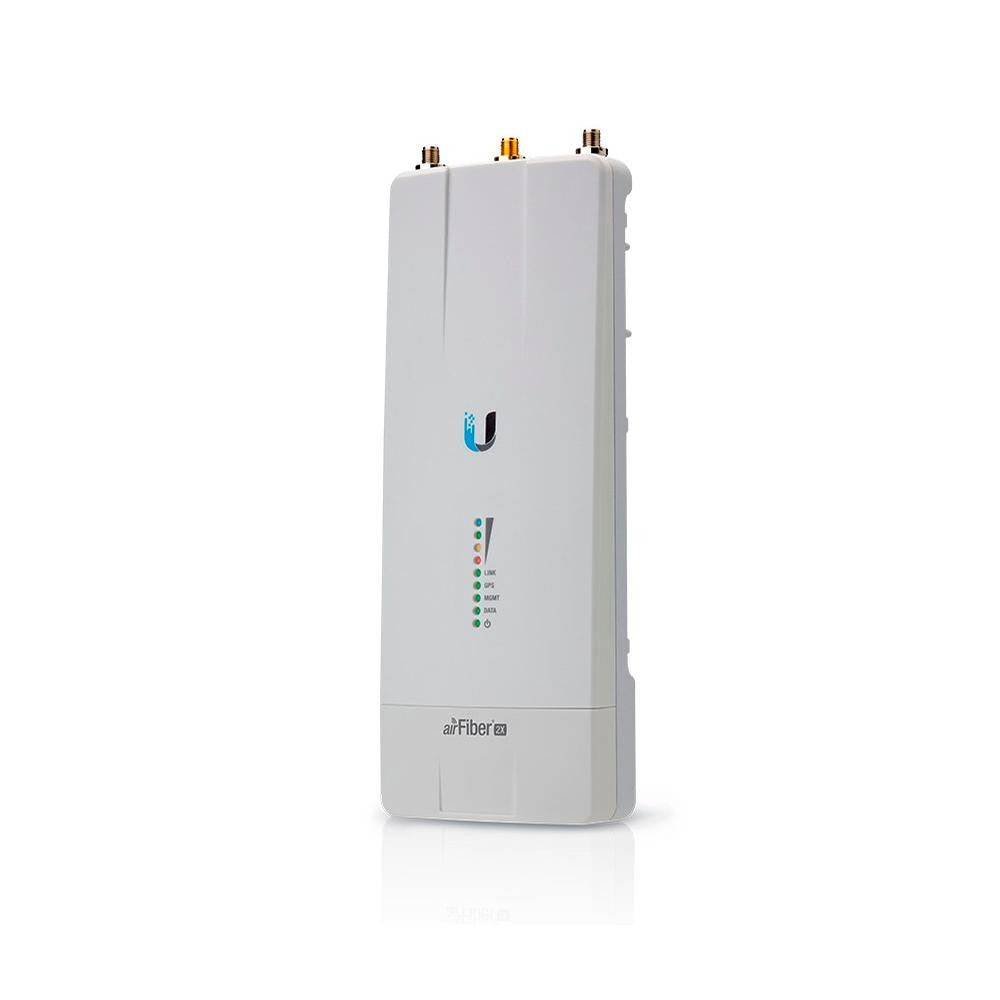

Ubiquiti airFiber X Carrier Backhaul Radio 2.4GHz PtP Point to Point 500Mbps (US Version)

UBIQUITI

Ubiquiti AF-2X-US airFiber X 2x2 Dual-Polarity PtP Antenna

Product identifier
SKU AF-2X-US
$600.50
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

PRODUCT SPECIFICATIONS More Information

PRODUCT SPECIFICATIONS

Create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul.

Pair an airFiber® X antenna with an airFiber X radio to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (airFiber X radio sold separately). The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.

Features:

  • 2x2 dual-polarity performance
  • Compatible with the airFiber® X antenna
  • Powered with the included 24V, 1A PoE Gigabit adapter
  • (1) 10/100 Ethernet port
  • (1) 10/100/1000 Ethernet port
  • 687 Mbps maximum throughput
  • 17W maximum power consumption

Dimension (L×W×H)

  • 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")

Weight

  • 0.35 kg (0.77 lb)

Compatibilities

  • International version

Technical Description

  • Mechanical
    • Mounting: airFiber X mount (Rocket mount compatible)
    • GPS pole mount (Included)
  • Hardware
    • Networking Interface:
      • (1) GbE RJ45 port
      • (1) 10/100 MbE RJ45 port
    • Power method: Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-))
    • Power supply: 24V, 1A PoE Gigabit adapter (Included)
    • Max. power consumption: 17W at power/duty cycle
    • Supported voltage range: 19-29V DC
    • GPS antenna: External, magnetic base
    • Operating temperature: -40 to 55° C (-40 to 131° F)
    • Certifications: CE, FCC, IC
  • Software
    • Modes: PtP Master/Slave
  • System
    • Max. throughput: 525 Mbps
    • Max. range: 200+ km
    • Encryption: 128-bit AES
  • RF
    • Operating frequency: 2.4 GHz
    • Max TX power*: 30 dBm
      • *Depends on regional regulations.
    • Frequency accuracy:
      • ± 2.5 ppm without GPS synchronization
      • ± 0.2 ppm with GPS synchronization
    • Channel bandwidth*: 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable
      • Programmable Uplink and Downlink duty cycles
      • Independently programmable TX and RX frequencies
        • *Channel widths may vary according to country/region regulations.
