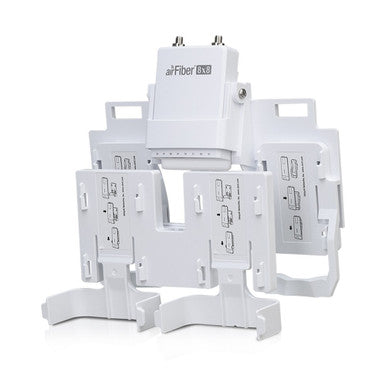

Ubiquiti AF-MPX8 8x8 MIMO Multiplexer 2+ Gbps Backhaul for airFiber X

PRODUCT OVERVIEW

Increase the amazing throughput of your airFiber link by up to 400% without the need of additional antennas.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• Up to 8x8 MIMO Backhaul Technology
• Combine up to Four airFiber X Radios on One Dish Antenna
• Compatible with airFiber X and RocketDish Antennas
• Reduced Tower Footprint and Cost
• Superior Link Redundancy
• Redundant link: Up to 3
• Aggregate throughput: 2+ Gbps
• Dimensions: 210.5 x 240.9 x 109 mm (8.29 x 9.48 x 4.29")
• Weight: 0.45 kg (1.0 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (8) RP-SMA Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)
• Cable Loss: 7.2 dB
• Supported airFiber X Radio: AF-5X
• Multiplex MIMO: 4 x (2x2)
• Mounting: airFiber X/Rocket Mount Compatible

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: AF-MPX8
• Product Type: Antennas (Networking)
• Up to 8x8 MIMO Backhaul Technology
• Combine up to Four airFiber X Radios on One Dish Antenna
• Compatible with airFiber X and RocketDish Antennas
• Reduced Tower Footprint and Cost
• Superior Link Redundancy
• Redundant link: Up to 3
• Aggregate throughput: 2+ Gbps
• Dimensions: 210.5 x 240.9 x 109 mm (8.29 x 9.48 x 4.29")
• Weight: 0.45 kg (1.0 lb)
• RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (8) RP-SMA Weatherproof (A0, A1, B0, B1, C0, C1, D0, D1)
• Cable Loss: 7.2 dB
• Supported airFiber X Radio: AF-5X
• Multiplex MIMO: 4 x (2x2)
• Mounting: airFiber X/Rocket Mount Compatible

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
