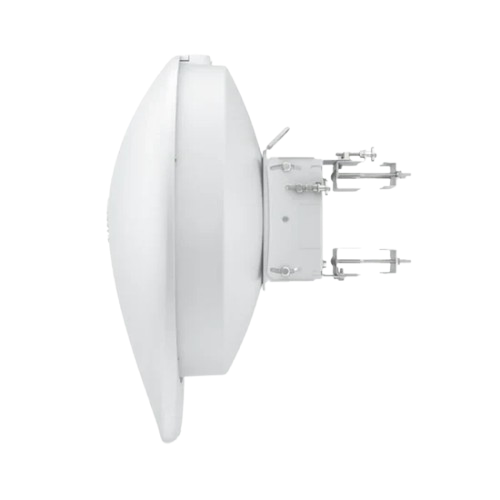

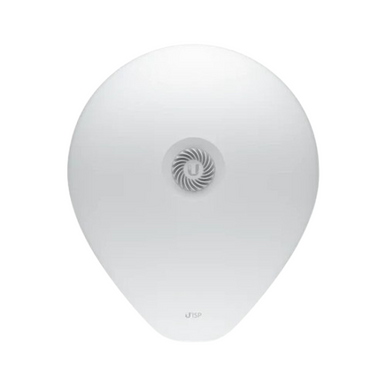

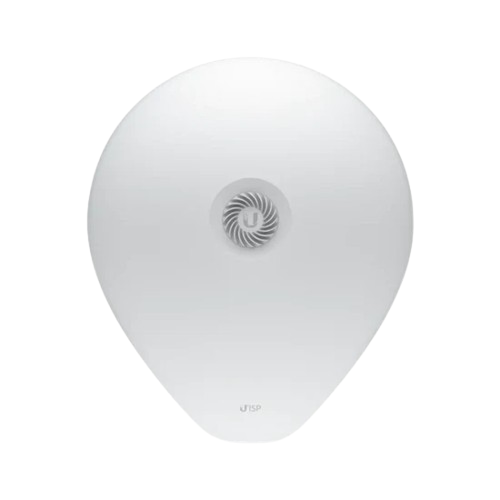

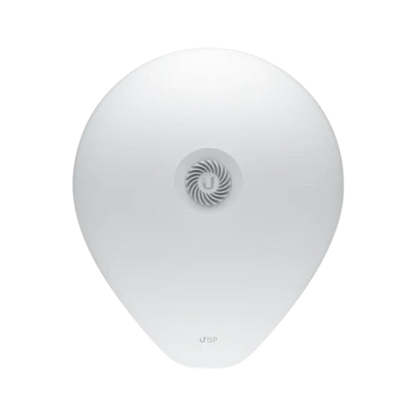

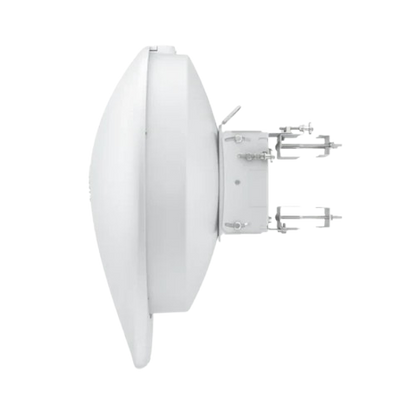

Ubiquiti AF60-XR airFiber 60 XR 5.4Gbps 60GHz Point-to-Point Bridge

PRODUCT OVERVIEW

The Ubiquiti AF60-XR airFiber 60 XR is a high-performance, multi-gigabit, 60 GHz bridge tailored for creating long-distance point-to-point (PtP) links. It offers a total throughput of 5.4 Gbps (2.7 Gbps duplex) and features a 5 GHz backup radio for added operational redundancy. The integrated Bluetooth radio simplifies setup via the UISP® Mobile app, making it an ideal choice for scalable ISP deployments.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• 60 GHz Link Range : Over 15 km for long-distance connectivity.
• 5 GHz Backup Radio : Ensures seamless failover for uninterrupted performance.
• Advanced Port Options : Includes 1 x 10G SFP+ port and 1 x GbE RJ45 port .
• Integrated GPS : Provides precise synchronization for optimized performance.
• Durable Design : IPX6-rated enclosure with wind survivability of 125 mph (200 km/h) .
• Management & Tools : Compatible with UISP platform for centralized management, diagnostics, and link planning.
• Applications
• High-performance PtP wireless connectivity for ISPs.
• Backup and failover for critical network links.
• Extended reach for rural or challenging environments.
• Compatibilities
• US version
• AF60-XR-US

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: AF60-XR
• Product Type: PtP
• Mechanical
• Dimensions : 779 x 664 x 383 mm (30.7 x 26.1 x 15.1').
• Weight : Without mount: 8.6 kg (19 lb) .
• With mount: 13 kg (28.7 lb) .
• Materials : Enclosure: UV-stabilized polycarbonate, steel.
• Mount: Galvanized steel.

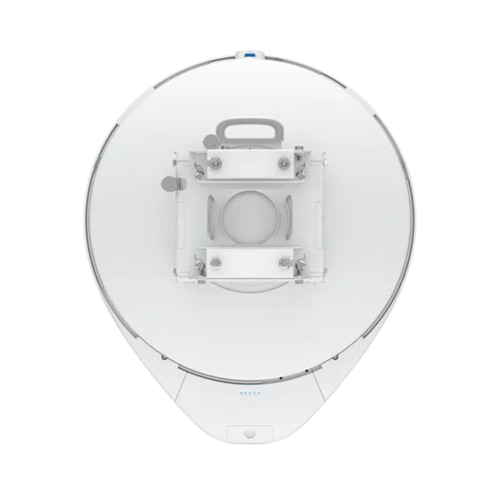

• Mounting : Precision alignment kit (included). Pole compatibility: Ø40 to 80 mm (1.5' to 3.15').
• Wind Loading : 422 N @ 200 km/h (94.86 lbf @ 125 mph).
• Weatherproofing : IPX6 rated.
• Hardware
• Processor : Quad-core ARM® Cortex®-A53 at 1.4 GHz.
• Memory : 1 GB DDR3L .
• Networking Interfaces :
• 1 x GbE RJ45 port .
• 1 x 10G SFP+ port .
• Power :
• Max Consumption : 24W.
• Input : Passive PoE (48VDC, 0.65A adapter included).
• Operating Temperature : -40 to 55° C (-40 to 131° F).
• Certifications : FCC, IC, CE.
• RF Specifications
• 60 GHz Band :
• Frequency : 57–71 GHz ( region dependent ).
• Channel Bandwidth : 1080 MHz, 2160 MHz.
• Beamwidth : ±1° (azimuth and elevation).
• Backup 5 GHz Band :
• Frequency : 5150–5875 MHz ( region dependent ).
• Channel Bandwidth : 20, 40, 80 MHz.
• Beamwidth : ±7° (azimuth and elevation).

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
