Ubiquiti AMO-3G12 12dBi 3.4-3.7GHz Omnidirectional 2x2 MIMO Antenna
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

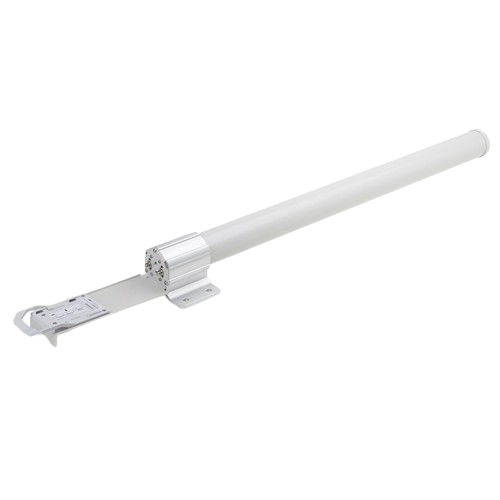

Ubiquiti AMO-3G12 is a 12 dBi 2x2 MIMO omnidirectional antenna operating in the 3.4–3.7 GHz band. Designed for seamless integration with RocketM radios, it provides 360° coverage for carrier-class base station deployments.
PRODUCT TYPE
Antennas (Networking)
KEY FEATURES
• 3.4–3.7 GHz frequency range
• 12 dBi gain
• 2x2 MIMO dual-polarity design
• Dual linear polarization
• 360° omnidirectional coverage
• 8° elevation beamwidth
• 4° electrical downtilt
• Designed for integration with RocketM radios (sold separately)
• Includes universal pole mount, RocketM bracket, and weatherproof RF jumpers
TECHNICAL SPECIFICATIONS
Model: AMO-3G12
Frequency Range: 3.4–3.7 GHz
Gain: 12 dBi
Polarization: Dual Linear
MIMO: 2x2
Elevation Beamwidth: 8°
Electrical Downtilt: 4°
Max VSWR: 1.6:1
Mounting: Universal Pole Mount (Included)
INTENDED USE / APPLICATIONS
Designed for carrier-class wireless base station deployments requiring 360° omnidirectional coverage in the 3.4–3.7 GHz band when paired with compatible RocketM radios.
