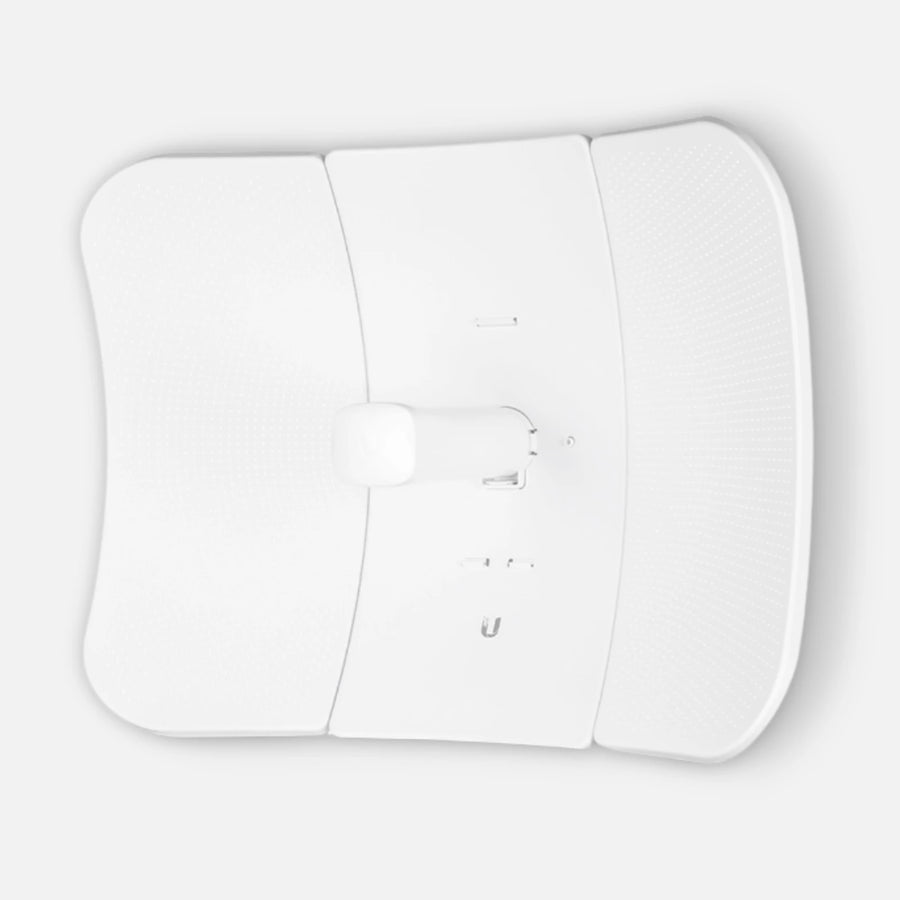

Ubiquiti LBE-5AC-LR LiteBeam 5GHz 26dBi Directional Point-to-Multipoint CPE

PRODUCT OVERVIEW

Ubiquiti LiteBeam 5AC LR is a long-range 5 GHz airMAX AC CPE featuring a 26 dBi directional antenna, integrated management Wi-Fi radio, Gigabit Ethernet, and airOS 8 support for point-to-point wireless connectivity.

PRODUCT TYPE

Point-to-Multipoint

KEY FEATURES

• 5 GHz long-range airMAX AC CPE
• 26 dBi high-gain directional antenna
• 2x2 MIMO antenna technology
• Integrated management Wi-Fi radio
• UISP mobile app setup support
• airOS 8 operating system support
• airMAX ac protocol support
• Real-time RF analytics with airView
• Gigabit Ethernet connectivity
• Enhanced ESD and surge protection
• Tool-free assembly design
• Separate azimuth and elevation adjustment system
• Compact and lightweight outdoor form factor
• Designed for long-distance wireless links

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: LBE-5AC-LR
• Product Line: LiteBeam AC Long Range
• Version: International Version
• Product Type: Outdoor wireless CPE

• Frequency Band: 5 GHz
• Antenna Gain: 26 dBi
• Antenna Type: Directional 2x2 MIMO
• Maximum Power Output: 25 dBm

• Networking Interface:

• 1 × 10/100/1000 Gigabit Ethernet Port

• Operating System: airOS 8
• Mobile Management Support: UISP Mobile App
• Integrated Management Wi-Fi Radio: Yes

• Power Supply Included: 24V, 0.3A Gigabit PoE Adapter
• Power Method: Passive PoE
• PoE Pins: 4,5 (+) / 7,8 Return

• Maximum Power Consumption: 7W

• ESD/EMP Protection: ±24 kV Contact / Air
• Shock and Vibration Standard: ETSI300-019-1.4

• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% Non-Condensing

• Wind Survivability: 200 km/h (125 mph)
• Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)

• Dimensions:

• 512.5 × 385.75 × 258.3 mm
• 20.18 × 15.19 × 10.17 in

• Weight: 1.735 kg (3.825 lb)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

Designed for long-distance point-to-point wireless networking, outdoor broadband connectivity, and professional wireless ISP deployments.
