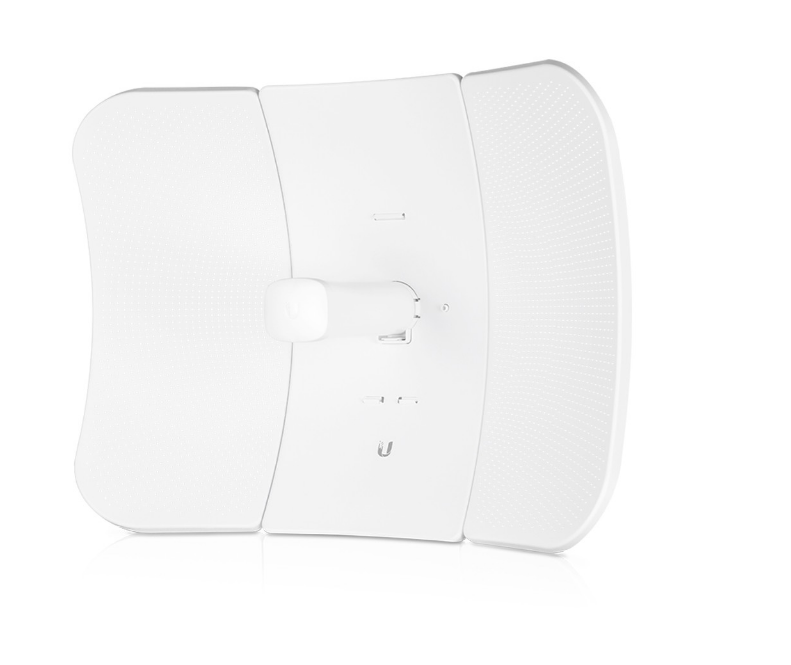

Ubiquiti LBE-5AC-XR LiteBeam AC XR airMax 5GHz CPE Radio 29 dBi High-Gain Antena

The Ubiquiti airMAX LiteBeam AC XR (LBE-5AC-XR) is an ultra-lightweight outdoor 5 GHz CPE engineered for demanding long-distance wireless deployments. Built around a 29 dBi high-gain antenna using Ubiquiti's InnerFeed® technology, it delivers up to 450+ Mbps throughput while maintaining a weatherproof IPX6-rated enclosure suitable for harsh outdoor environments. A dedicated 2.4 GHz management radio enables out-of-band setup via the UISP® Mobile app without disrupting the primary link, and integrated GPS supports precision alignment and network timing. The LBE-5AC-XR operates on the airOS® platform and supports both Point-to-Point and Point-to-Multipoint topologies, making it a versatile foundation for carrier-grade last-mile connectivity, enterprise campus backhaul, and ISP distribution networks where link reliability and range are non-negotiable.

Key features & benefits

• 29 dBi High-Gain InnerFeed® Antenna — The integrated InnerFeed® design positions the radio electronics directly at the antenna feed point, minimizing signal loss and maximizing effective radiated performance across extreme distances.
• 450+ Mbps Maximum Throughput — The proprietary airMAX ac chipset delivers high aggregate throughput to support bandwidth-intensive applications across long-distance links without compromising reliability.
• Dual-Radio Architecture with Dedicated Management Radio — A separate 2400–2483.5 MHz management radio keeps device setup and monitoring traffic completely isolated from the 5 GHz data path, enabling seamless UISP® Mobile app configuration even on active links.
• Integrated GPS — Onboard GPS enhances link precision and supports network-level timing, improving overall airMAX network coordination in PtMP deployments.
• Flexible Channel Bandwidth — Support for 10, 20, 30, 40, 50, 60, and 80 MHz channel widths allows operators to optimize spectral efficiency and co-channel interference management across varied RF environments.
• IPX6 Weatherproof Enclosure — The aluminum alloy and UV-stabilized polycarbonate construction carries an IPX6 rating, ensuring consistent operation through rain, dust, and temperature extremes from -40°C to 70°C.
• PtP and PtMP Mode Support — Native support for both Point-to-Point and Point-to-Multipoint topologies provides deployment flexibility for ISP last-mile distribution, enterprise backhaul, and campus connectivity scenarios.
• Gigabit Ethernet Interface with Passive PoE — A single Gigabit Ethernet RJ45 port paired with a 24V DC, 0.5A Gigabit PoE adapter simplifies installation by consolidating power and data over a single cable run.
• Robust Mechanical Design — An integrated pole mount accommodates poles from 35 to 60 mm in diameter, and the structure is rated to withstand wind loading of 1,100 N at 200 km/h for confident permanent outdoor installation.
• FCC, IC, and CE Certified — Multi-region regulatory certifications support compliant deployment across North American and European markets.
