Ubiquiti NS-5AC 5GHz Point-to-Multipoint Radio 16dBi Dual Gigabit
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW

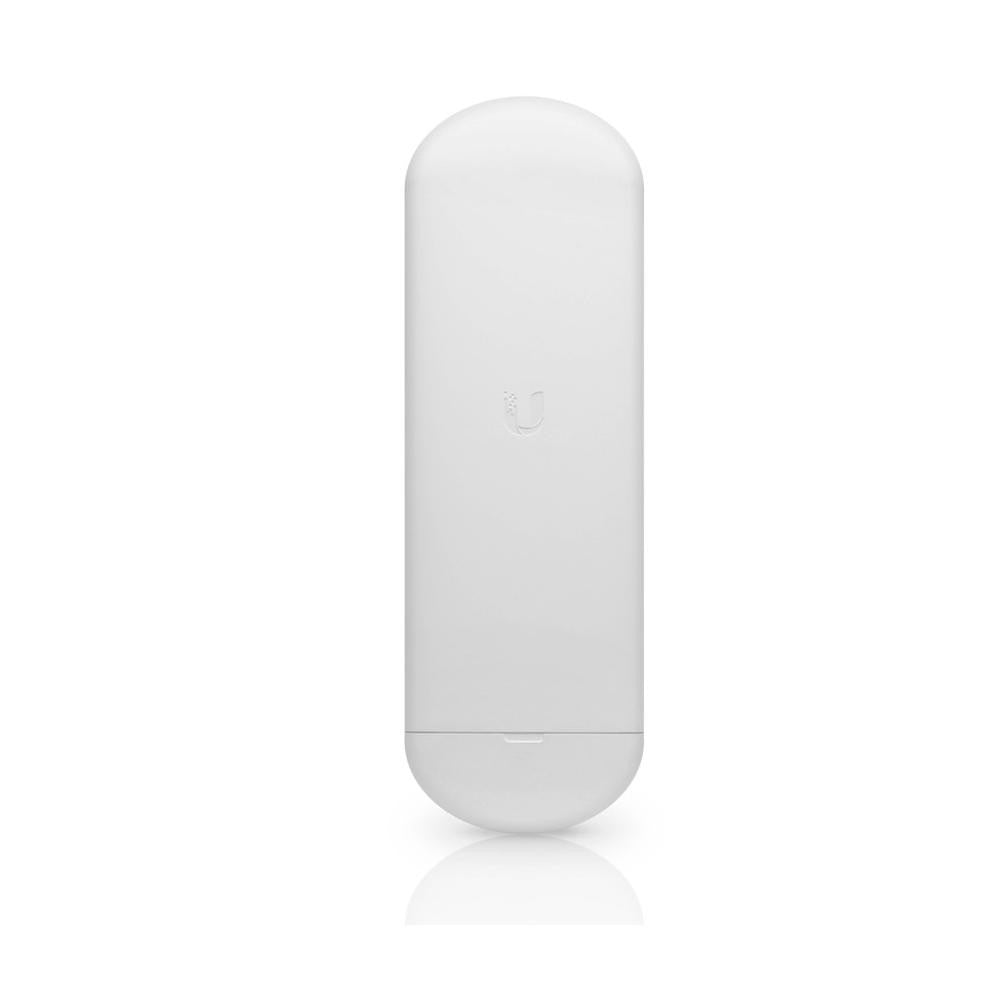

Ubiquiti NS-5AC NanoStation AC is a 5 GHz outdoor CPE featuring airMAX ac technology, 16 dBi integrated antenna, dual Gigabit Ethernet ports, and a dedicated 2.4 GHz Wi-Fi management radio.
PRODUCT TYPE
Point-to-Multipoint
KEY FEATURES
• 5 GHz airMAX ac CPE radio
• Integrated 16 dBi antenna

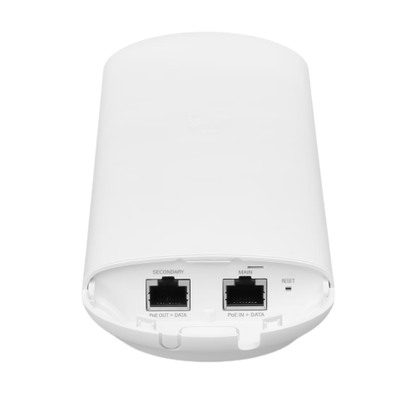

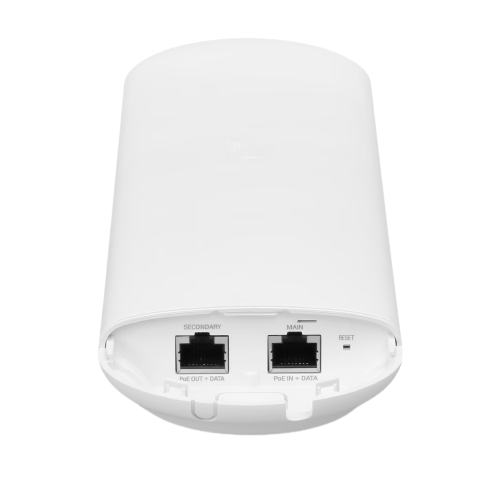

• (2) 10/100/1000 Mbps Ethernet ports
• Secondary Ethernet port with software-enabled PoE output
• Dedicated 2.4 GHz Wi-Fi management radio
• airOS 8 with airMAX ac protocol support
• Real-time RF analytics
• Enhanced ESD protection
• Pole and wall mounting kits included
• 24V Gigabit PoE power supply included
TECHNICAL SPECIFICATIONS
Model: NS-5AC
Operating Frequency: 5150–5875 MHz (Worldwide)
Management Radio Frequency: 2412–2472 MHz
Antenna Gain: 16 dBi
Networking Interfaces: (2) 10/100/1000 Ethernet Ports
Max Power Consumption: 9W
Power Method: 24V Passive PoE (Pairs 4,5+; 7,8 Return)
Power Supply: 24V, 0.5A Gigabit PoE (Included)
Supported Voltage Range: 24V ±10%
ESD/EMP Protection: ±24 kV Contact/Air
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 5–95% Noncondensing
Dimensions (Without Mount): 257 x 84 x 41 mm
Weight: 233 g
Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
Designed for broadband wireless ISP deployments and point-to-point or point-to-multipoint 5 GHz connectivity requiring integrated antenna performance and outdoor durability.
