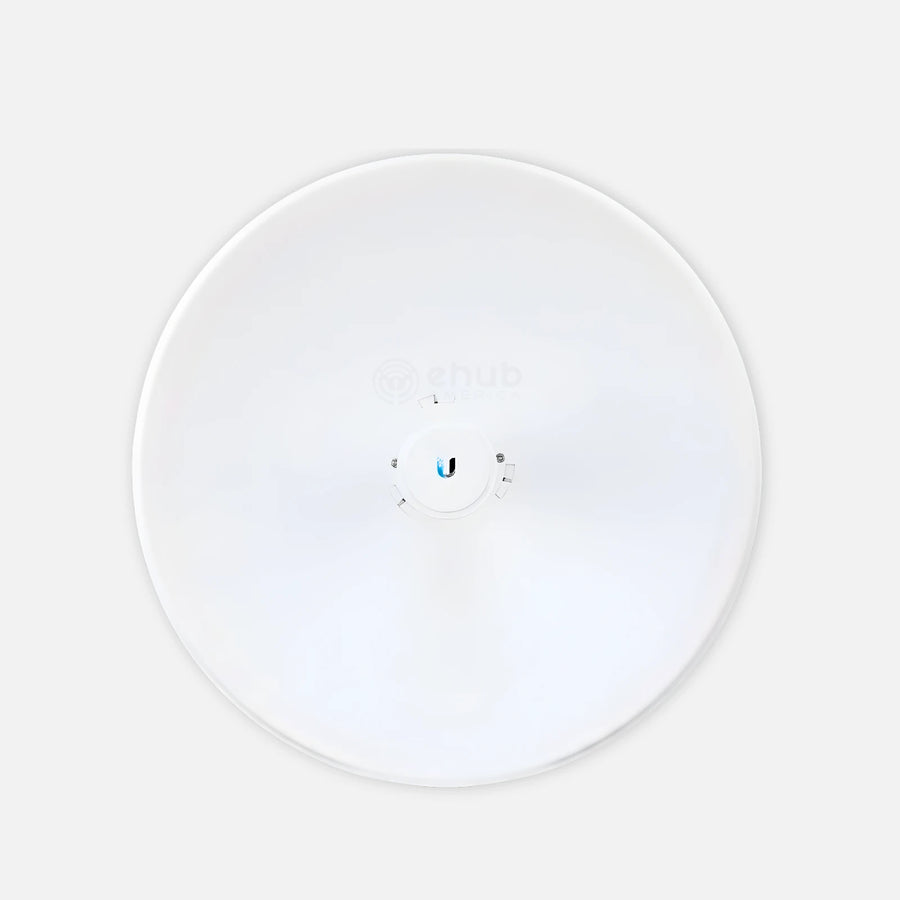

Ubiquiti PBE-5AC-Gen2 25dBi 5GHz Point-to-Point Bridge

PRODUCT OVERVIEW

Ubiquiti PBE-5AC-Gen2 PowerBeam ac is a high-performance 5 GHz point-to-point bridge featuring a 25 dBi integrated dish reflector, airMAX ac technology, and dedicated management Wi-Fi for streamlined deployment.

PRODUCT TYPE

Point-to-Point

KEY FEATURES

• 5 GHz point-to-point (PtP) bridge
• Integrated 25 dBi dish reflector
• airMAX ac technology
• Up to 450+ Mbps data throughput
• Dedicated 2.4 GHz management Wi-Fi radio
• airOS 8 operating system
• Improved radio and mounting design
• Enhanced surge protection
• Gigabit Ethernet connectivity
• Pole-mount kit included
• 24V Gigabit PoE adapter included

TECHNICAL SPECIFICATIONS

Model: PBE-5AC-Gen2
Operating Frequency (Worldwide): 5150–5875 MHz
Operating Frequency (USA):
• U-NII-1: 5150–5250 MHz
• U-NII-2A: 5250–5350 MHz
• U-NII-2C: 5240–5725 MHz
• U-NII-3: 5725–5850 MHz
Management Radio Frequency:
• Worldwide: 2412–2472 MHz
• US/CA: 2412–2462 MHz
Antenna Gain: 25 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Processor: MIPS 74Kc
Max Power Consumption: 8.5W
Power Method: 24V Passive PoE (Pairs 4,5+; 7,8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Supported Voltage Range: 20–26VDC
Wind Loading: 380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Dimensions: 420 x 420 x 230 mm (16.54 x 16.54 x 9.06")
Weight: 2.22 kg (4.89 lb)
Mounting: Pole mount (kit included)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Operating Humidity: 5–95% Noncondensing
Certifications: CE, FCC, IC

INTENDED USE / APPLICATIONS

Designed for high-performance 5 GHz point-to-point or point-to-multipoint wireless links in outdoor environments, including deployments in high-noise conditions.
