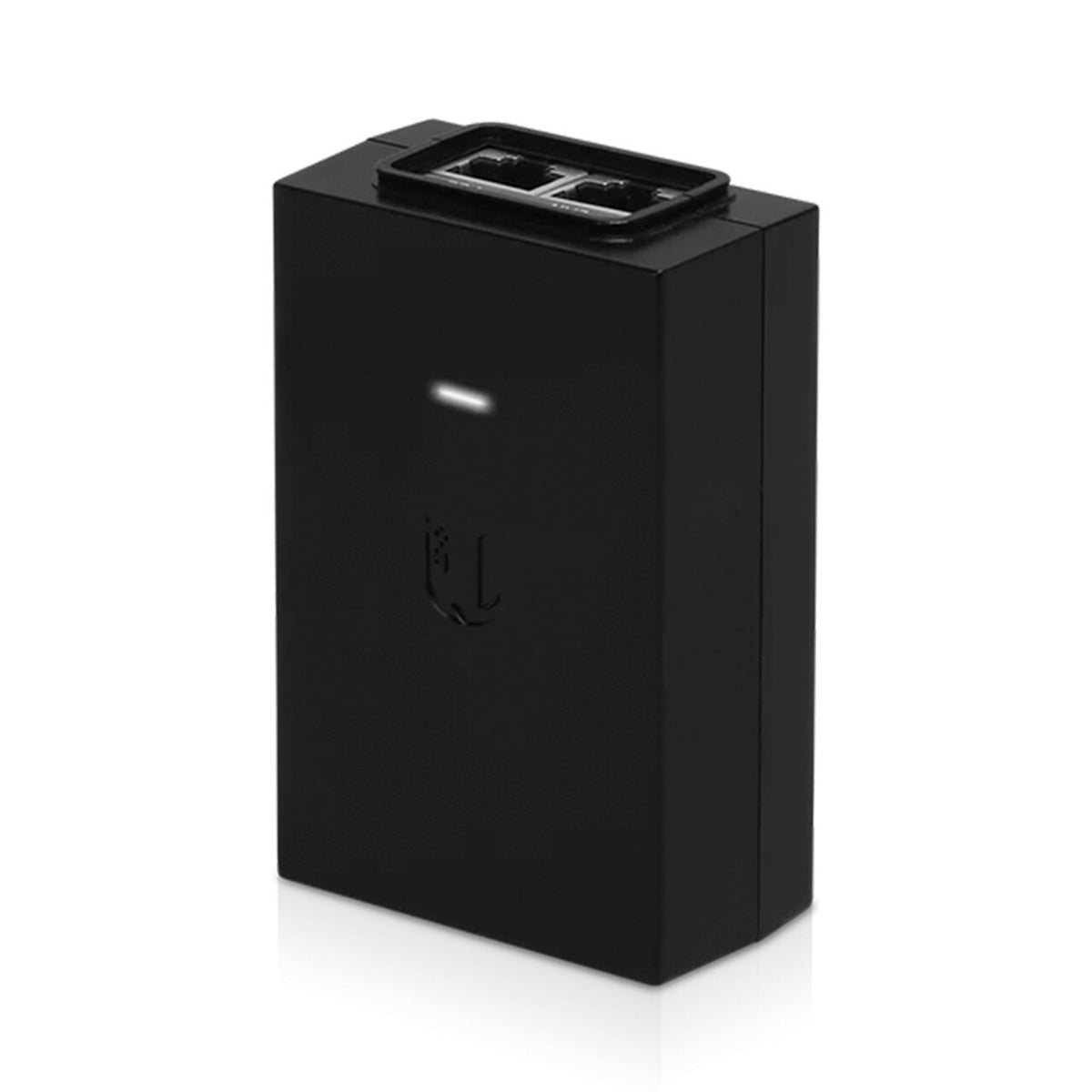

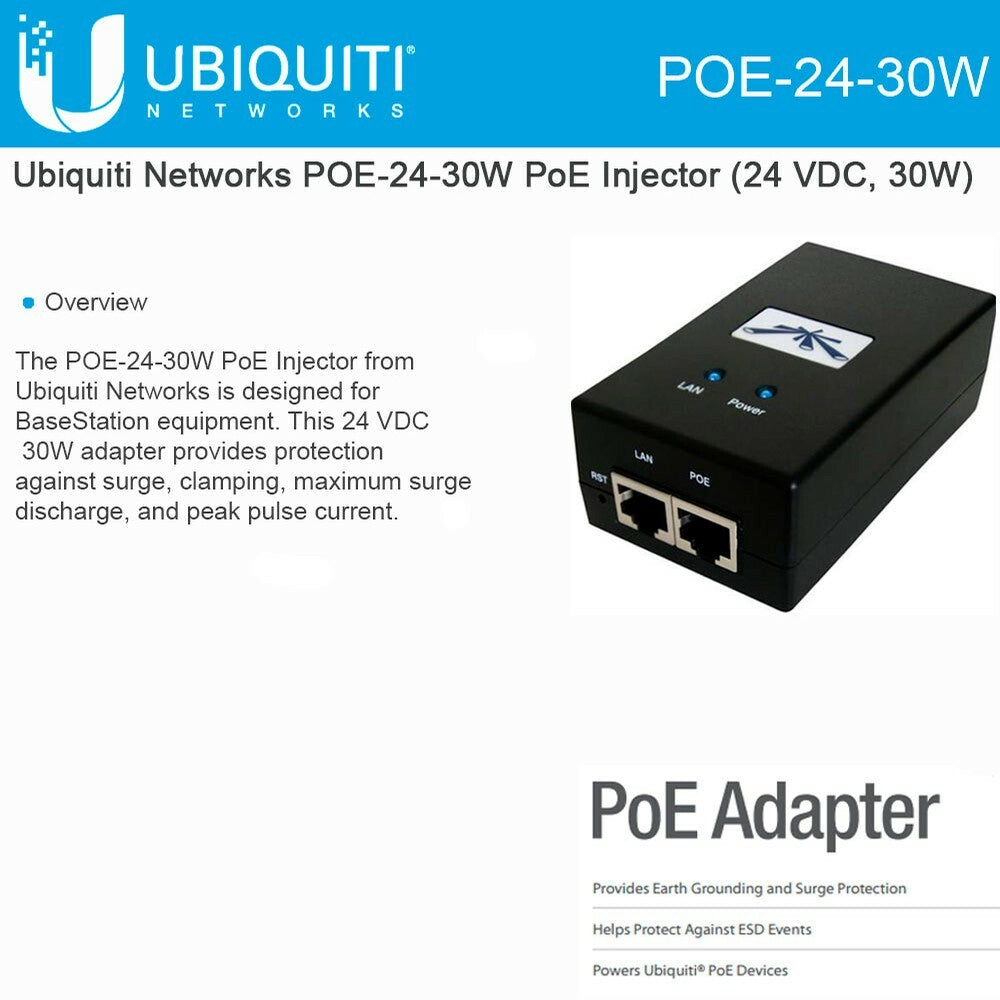

UBIQUITI POE-24-30W POE INJECTOR (24 VDC, 30W) AIRFIBER AIRMAX EDGEMAX MFI UNIFI
UBIQUITI
Ubiquiti POE-24-30W PoE Injector (24 VDC, 30W) airFiber airMAX EdgeMAX mFi UniFi
SKU
Professional-grade equipment, ready to ship.
$21.85$32.99Save 34%
400 in stock
- Ships from our Miami warehouse · in-stock same-day, most orders within 24h
- Genuine products · real support in EN · ES · PT
- Easy 30-day returns & RMA support
RF
- Switching Frequency
- Switching Frequency: 200 kHz
Hardware
- PoE Power
- PoE Power: 30 W
- Data In/PoE Port
- Data In/PoE Port: RJ45 shielded socket
- Storage Temperature
- Storage Temperature: -20 to 85°C (-4 to 185°F)
Battery
- Maximum Surge Discharge
- Maximum Surge Discharge: 1200 A (8/20 μs) power
Physical
- Operating Temperature
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Dimensions
- Dimensions: 3.3 x 1.7 x 1.1 in (8.5 x 4.3 x 3.0 cm)
- Weight
- Weight: 4.0 oz (113.4 g)
General
- Model
- Model: POE-24-30W
- Output Voltage
- Output Voltage: 24 VDC @ 1 A
- Input Voltage
- Input Voltage: 90–260 VAC @ 47–63 Hz
- Input Current
- Input Current: 0.3 A @ 120 VAC / 0.2 A @ 230 VAC
- Inrush Current
- Inrush Current: <15 A peak @ 120 VAC / <30 A peak @ 230 VAC
- Efficiency
- Efficiency: ±70%
- Output Ripple
- Output Ripple: 1% maximum
- Line Regulation
- Line Regulation: ±0.5%
- Load Regulation
- Load Regulation: ±1%
- Clamping Protection
- Clamping Protection: Data 11 V / Power 77.5 V
- Peak Pulse Current
- Peak Pulse Current: 36 A (10/1000 μs) data
- Shunt Capacitance
- Shunt Capacitance: <5 pF data
- Response Time
- Response Time: <1 ns
- Compliance
- Compliance: UL, EN55022 (CISPR22) Class B, CE
- Operating Humidity
- Operating Humidity: 5–90% non-condensing
