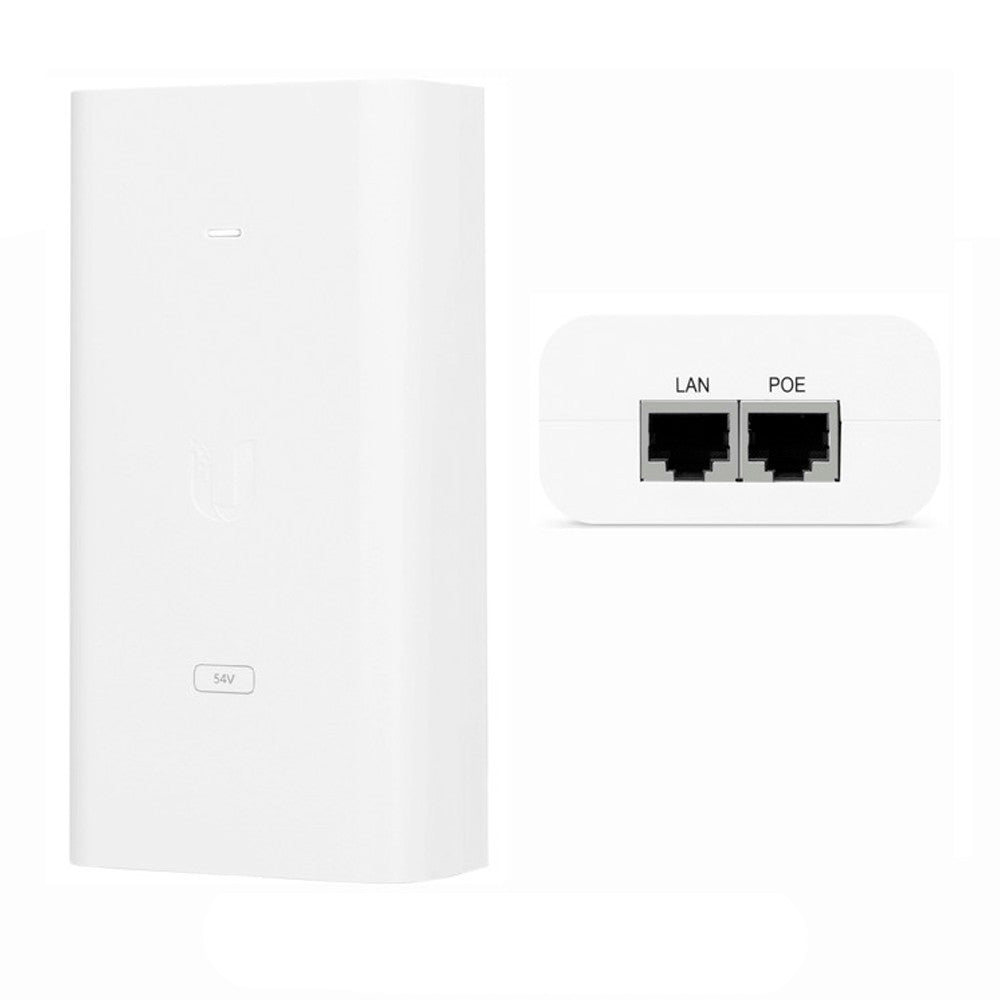

Ubiquiti POE-54V-80W 80W 54VDC Gigabit PoE Injector
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Ubiquiti POE-54V-80W is a 54VDC 80W PoE injector with Gigabit LAN support, designed to power compatible Ubiquiti devices. Features surge protection, high efficiency, and shielded RJ45 connectivity.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• 54VDC @ 1.5A output (80W)
• Gigabit LAN port
• Shielded RJ45 Data IN / PoE port
• High efficiency (87%+)
• Surge and clamping protection

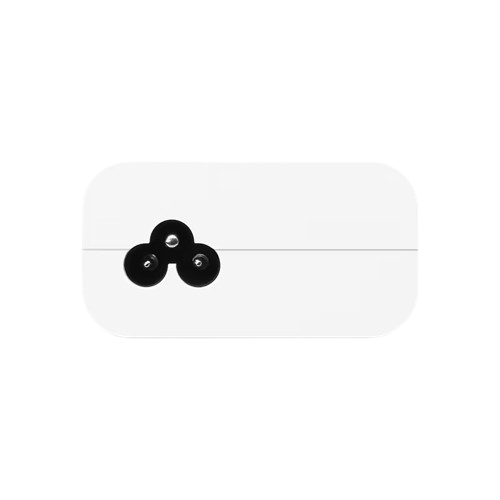

• IEC-320 C6 AC connector
• Designed for compatible Ubiquiti PoE devices
• Compact enclosure
TECHNICAL SPECIFICATIONS
Model: POE-54V-80W
Dimensions: 123 x 65 x 34 mm
Weight: 299 g
Output Voltage: 54VDC @ 1.5A
Rated Power: 80W
Input Voltage: 100–240VAC @ 50/60Hz
Input Current: 0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current: <80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency: 87%+
Output Ripple: 1% Max
Switching Frequency: 100 kHz Max
Line Regulation: ±1%
Load Regulation: ±3%
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -30 to 70°C (-22 to 158°F)
Operating Humidity: 35 to 95% Noncondensing
Clamping Protection: 11V Data, 60V Power
Max Surge Discharge: 1500A (8/20 µs) Power
Peak Pulse Current: 36A (10/1000 µs) Data
Compliance: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B, RCM
INTENDED USE / APPLICATIONS
Designed to provide 54V passive PoE power to compatible Ubiquiti networking devices requiring higher power output with Gigabit data throughput.
