UBIQUITI

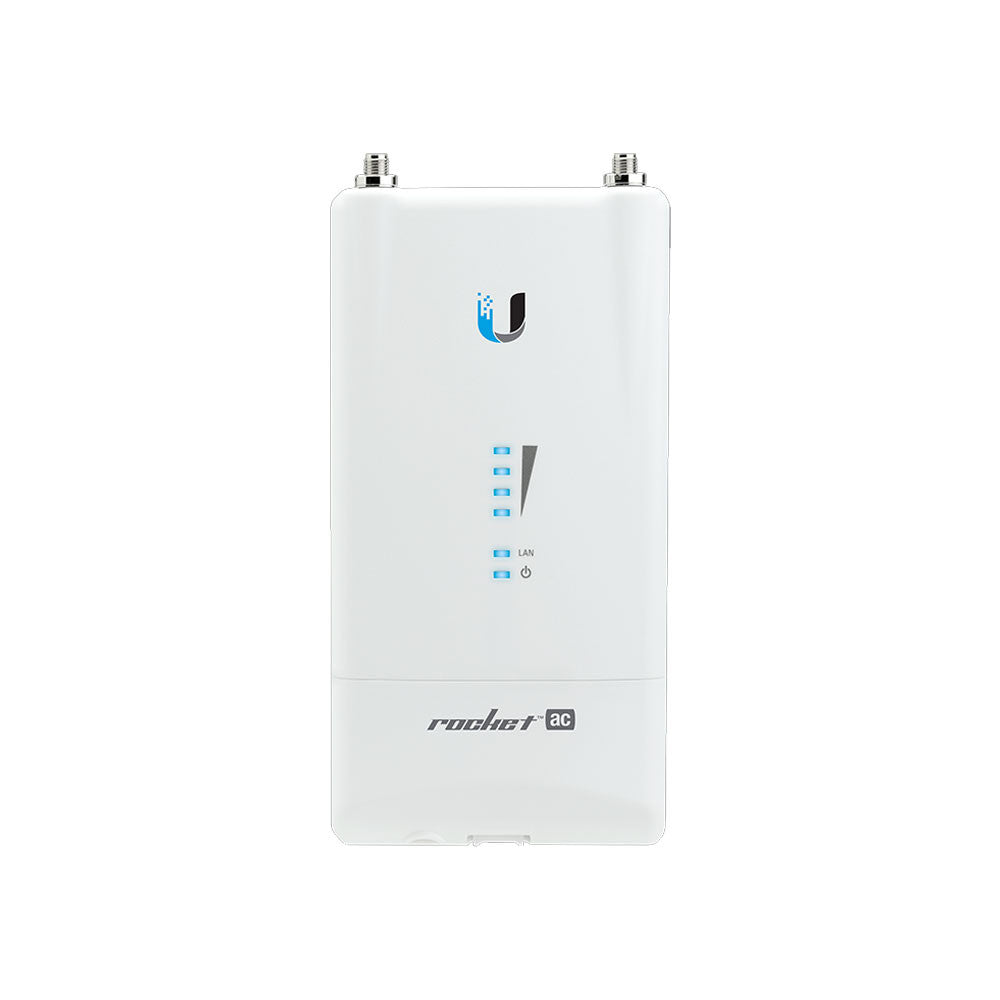

Ubiquiti R5AC-Lite 5GHz airMAX ac Point-to-Multipoint 867 Mbps
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Ubiquiti R5AC-Lite is a 5 GHz airMAX ac BaseStation radio designed for high-capacity PtP and PtMP deployments. It supports airMAX ac technology with throughput up to 500+ Mbps and Gigabit Ethernet connectivity for outdoor wireless backhaul applications.
PRODUCT TYPE
Point-to-Multipoint
KEY FEATURES
• airMAX ac technology
• Up to 500+ Mbps throughput
• 5 GHz frequency band operation
• Supports PtP backhaul with RocketDish ac antennas
• Supports PtMP links with airMAX ac sector antennas
• Gigabit Ethernet port
• Passive Power over Ethernet (PoE) support
• Configurable channel bandwidths (subject to local regulations)
• Intelligent QoS
• Designed for high-capacity, scalable wireless links
• Plug-and-play integration with compatible airMAX antennas
TECHNICAL SPECIFICATIONS
• Model: R5AC-Lite
• Operating Frequency: 5150 – 5875 MHz
• Processor: 720 MHz Atheros MIPS 74Kc
• Memory: 128MB DDR2 SDRAM
• Storage: 16MB NOR Flash

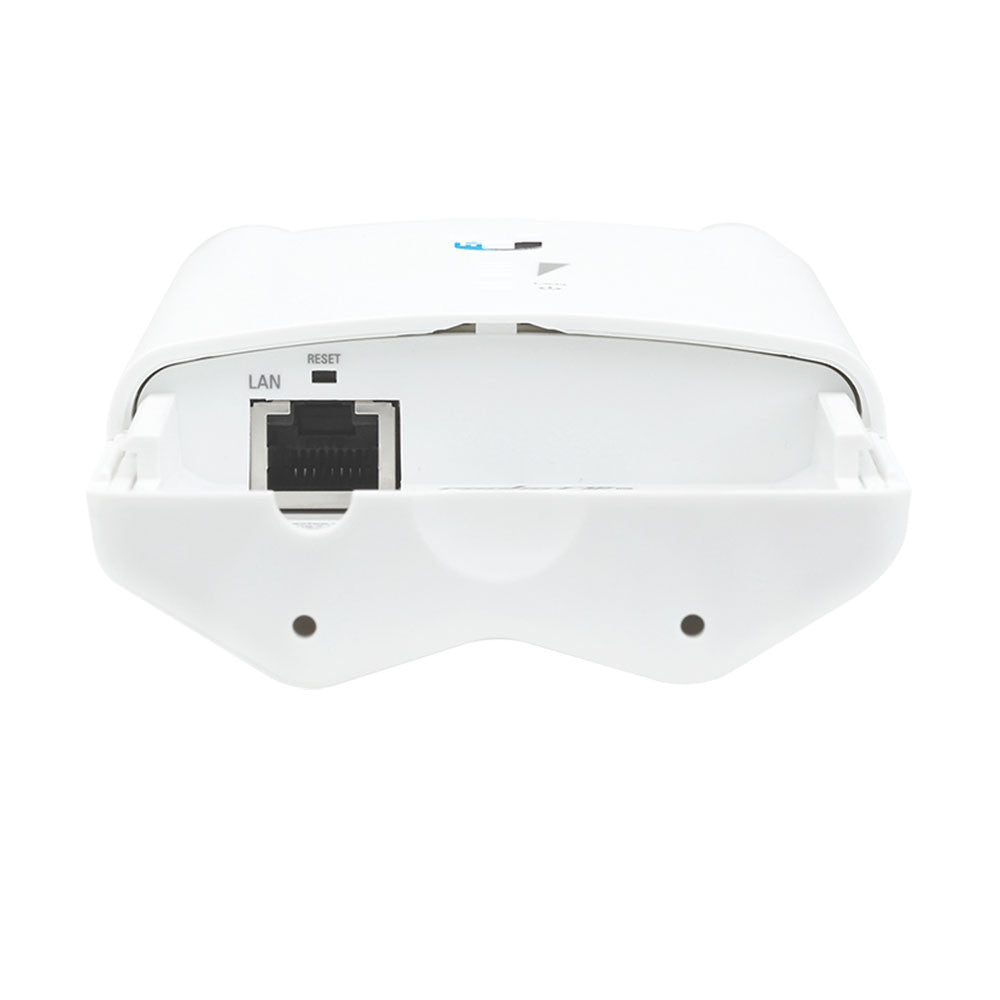

• Network Interface: (1) 10/100/1000 Mbps Ethernet port
• RF Connections: (2) RP-SMA waterproof connectors
• Enclosure: Outdoor UV-stabilized plastic
• LEDs: Integrated power, Ethernet, and signal indicators
• Technology Platform: airMAX ac
INTENDED USE / APPLICATIONS
• Point-to-Point (PtP) wireless backhaul deployments
• Point-to-Multipoint (PtMP) wireless distribution
• Outdoor high-speed carrier-class wireless links
