UBIQUITI

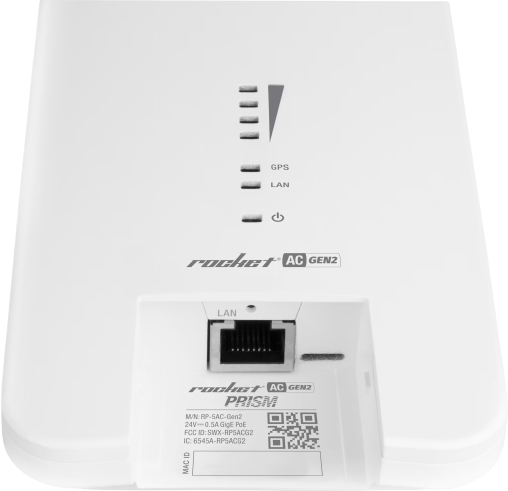

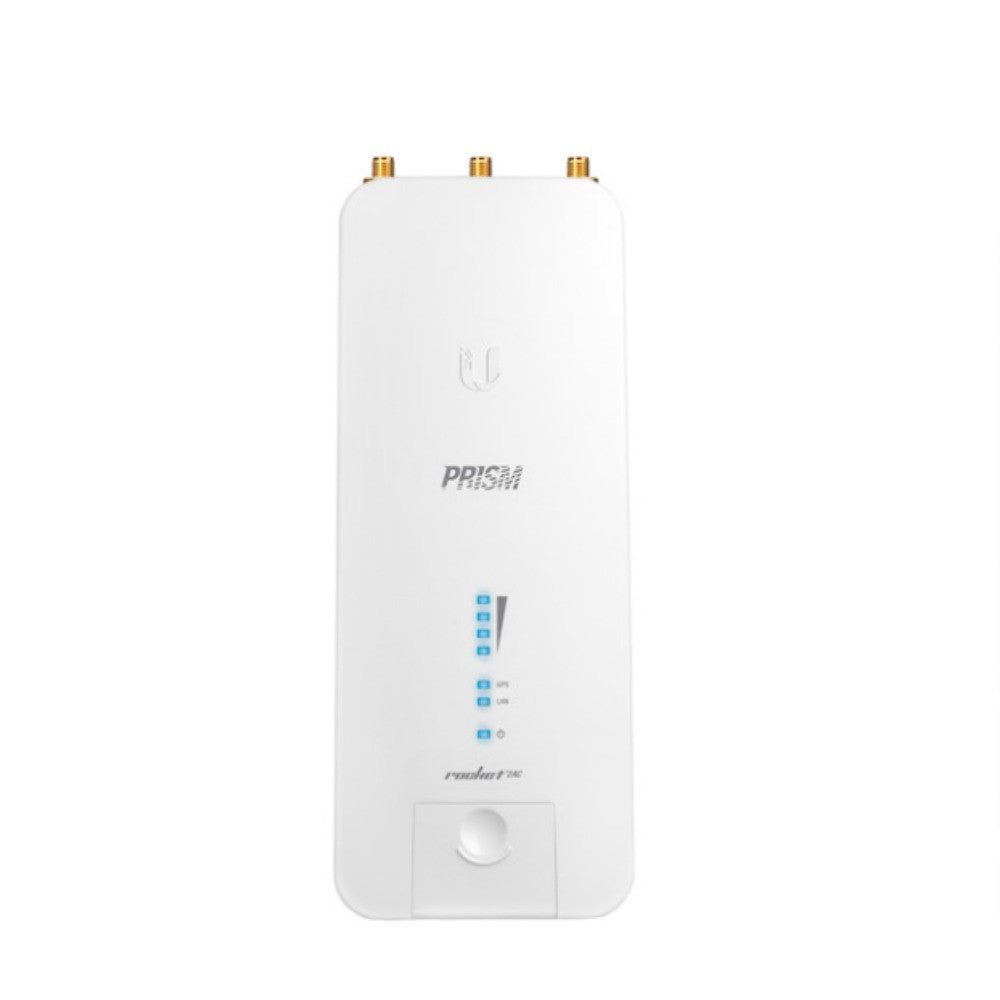

Ubiquiti RP-5AC-Gen2-US 5GHz Sector Antenna 500Mbps airPrism PoE
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput
PRODUCT TYPE
Antennas (Networking)
KEY FEATURES
• Custom Ubiquiti® airMAX AC Processor
• Proprietary airPrism® Active RF Filtering Technology
• GPS for Superior Co-Location Performance
• 5 GHz Wide Band Operating Frequency
• Point-to-MultiPoint Links to airMAX ac Clients
• Robust Die Cast Aluminum Casing
• Dedicated Management Radio
• International version RP-5AC-Gen2
• Mechanical Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06')
• Weight: 400 g (14.11 oz)
• Enclosure material: Die-cast aluminum
• Mounting: Pole mounting (kit Included)
• Wind loading: 342.5 N at 200 km/h (77 lbf at 125 mph)
• Hardware Networking interface: (1) GbE RJ45 port
• RF Connectors: (2) RP-SMA (Waterproof) (Not Included) RP-SMA: 2046
• (1) GPS (Waterproof)
• Power method: Passive PoE (pairs 4, 5+; 7, 8 return)
• Power supply: 24V, 1A Gigabit PoE adapter (Included)
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: RP-5AC-Gen2-US
• Product Type: Antennas (Networking)
• Custom Ubiquiti® airMAX AC Processor
• Proprietary airPrism® Active RF Filtering Technology
• GPS for Superior Co-Location Performance
• 5 GHz Wide Band Operating Frequency
• Point-to-MultiPoint Links to airMAX ac Clients
• Robust Die Cast Aluminum Casing
• Dedicated Management Radio
• International version RP-5AC-Gen2
• Mechanical Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06')
• Weight: 400 g (14.11 oz)
• Enclosure material: Die-cast aluminum
• Mounting: Pole mounting (kit Included)
• Wind loading: 342.5 N at 200 km/h (77 lbf at 125 mph)
• Hardware Networking interface: (1) GbE RJ45 port
• RF Connectors: (2) RP-SMA (Waterproof) (Not Included) RP-SMA: 2046
• (1) GPS (Waterproof)
• Power method: Passive PoE (pairs 4, 5+; 7, 8 return)
• Power supply: 24V, 1A Gigabit PoE adapter (Included)
• Supported voltage range: 18—26V DC
• Max. power consumption: 9.5W
• LEDs: (4) Signal strength: software_adjustable to correspond to custom RSSI levels
• GPS, LAN, power
• RoHS compliance: Yes
• Shock and vibrations: ETSI300-019-1.4
• Operating temperature: -40 to 80° C (-40 to 176° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• Software Modes: Access Point, station
• Channel sizes PtP mode: 10/20/30/40/50/60/80 MHz
INTENDED USE / APPLICATIONS
• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible
