Ubiquiti UACC-OFC-SM-PATCH-APC-APC Fiber Patch Cable SC/UPC to SC/APC 1.5m
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

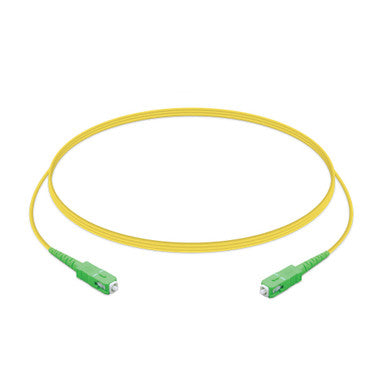

Ubiquiti UACC-OFC-SM-PATCH-APC-APC Fiber Patch Cable SC/UPC to SC/APC 1.5m
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti 1.5 m single-mode fiber patch cable with an SC/UPC connector on one end and SC/APC connector on the other. Features SM9/125 simplex fiber, a 2.0 mm yellow PVC jacket, and is specified for GPON network applications.
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Fiber
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• SC/UPC to SC/APC connector configuration
• 1.5 m (59.1 in) cable length
• SM9/125 simplex single-mode fiber
• Ultra-thin 2.0 mm cable construction
• Yellow PVC jacket
• Blue SC/UPC connector
• Green SC/APC connector
• Insertion loss ≤ 0.3 dB
• UPC return loss ≥ 50 dB
• APC return loss ≥ 60 dB
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Brand: Ubiquiti
• Part Number: UACC-OFC-SM-PATCH-APC-APC
• Cable Length: 1.5 m (59.1 in)
• Cable Type: SM9/125 SX 2.0 mm
• Jacket Material: Yellow PVC
• Connector 1: SC/UPC 2.0 mm SM SX, blue
• Connector 2: SC/APC 2.0 mm SM SX, green
• Insertion Loss: ≤ 0.3 dB
• Return Loss, UPC: ≥ 50 dB
• Return Loss, APC: ≥ 60 dB
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed for building out GPON network connections requiring an SC/UPC connection on one end and an SC/APC connection on the other.
