Ubiquiti UACC-UK-Ultra-Panel-Antenna Dual-Band WiFi Panel Antenna, IPX6, for

PRODUCT OVERVIEW

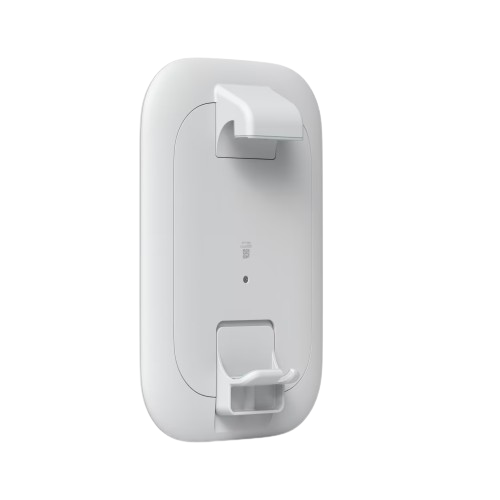

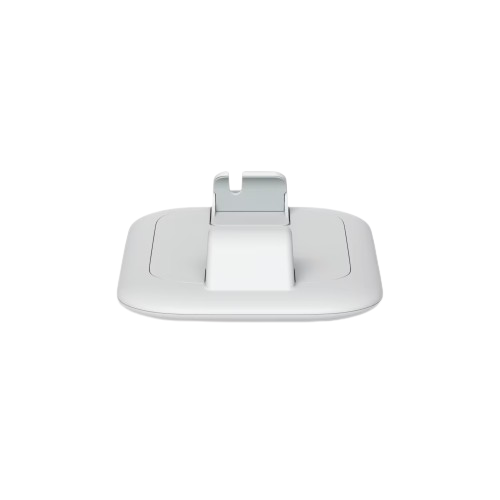

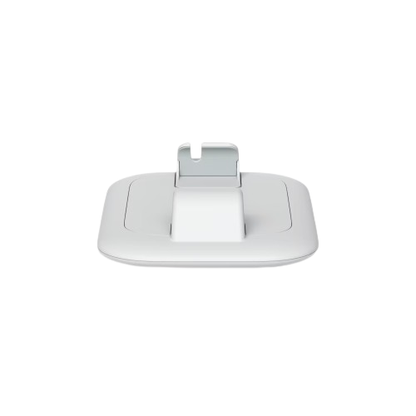

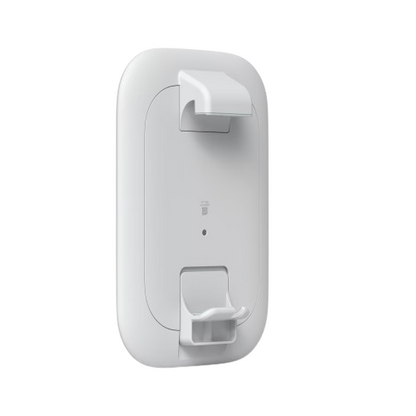

The UACC-UK-Ultra-Panel-Antenna is a sleek, clip-on external antenna designed to enhance the Swiss Army Knife's capabilities by providing 90-degree directional, extended range coverage. This high-efficiency antenna is optimized for dual-band use and is built to withstand outdoor conditions.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• High-Efficiency Radiation Pattern: Provides a 90° directional radiation pattern for extended range coverage.
• Dual-Band Optimization: Ensures superior performance across both 2.4 GHz and 5 GHz bands.
• Easy Clip-On Attachment: Compatible with all Swiss Army Knife mounting methods, making it simple to install and use.
• Weatherproof Design: Built to endure outdoor conditions with IPX6 weatherproofing, ensuring reliable performance regardless of the environment.
• The UACC-UK-Ultra-Panel-Antenna is ideal for enhancing the range and performance of wireless networks, particularly in outdoor environments where directional coverage is required.
• Size: 138 x 207 x 43 mm (5.4 x 8.1 x 1.7')
• Weight: 450 g (1 lb)
• Mechanical Enclosure Materials: UV-stabilized polycarbonate, aluminum

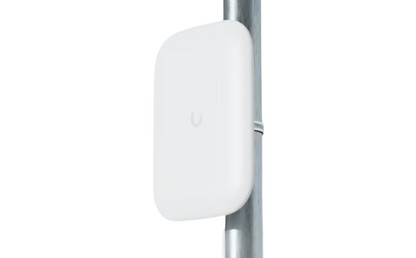

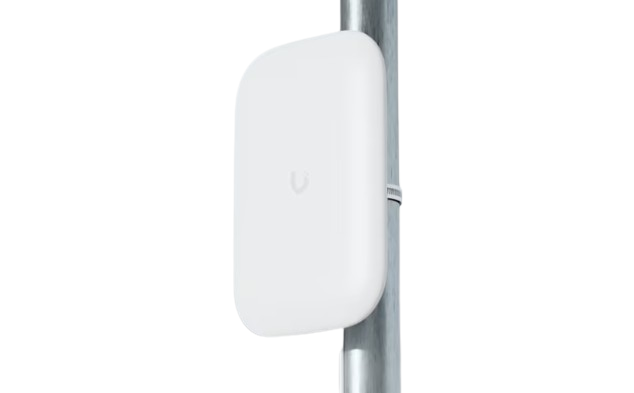

• Mounting: Fits pipes with 1~2' outer diameter
• Compatibility: Compatible with the UK-Ultra
• Wind Survivability: 75 N at 200 km/h (16.7 lbf at 125 mph)
• Weatherproofing: IPX6 rating
• Antenna gain 2.4 GHz: 10 dBi
• 5 GHz: 15 dBi

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UACC-UK-Ultra-Panel-Antenna
• Product Type: Networking Accessories
• High-Efficiency Radiation Pattern: Provides a 90° directional radiation pattern for extended range coverage.
• Dual-Band Optimization: Ensures superior performance across both 2.4 GHz and 5 GHz bands.
• Easy Clip-On Attachment: Compatible with all Swiss Army Knife mounting methods, making it simple to install and use.
• Weatherproof Design: Built to endure outdoor conditions with IPX6 weatherproofing, ensuring reliable performance regardless of the environment.
• The UACC-UK-Ultra-Panel-Antenna is ideal for enhancing the range and performance of wireless networks, particularly in outdoor environments where directional coverage is required.
• Size: 138 x 207 x 43 mm (5.4 x 8.1 x 1.7')
• Weight: 450 g (1 lb)
• Mechanical Enclosure Materials: UV-stabilized polycarbonate, aluminum
• Mounting: Fits pipes with 1~2' outer diameter
• Compatibility: Compatible with the UK-Ultra
• Wind Survivability: 75 N at 200 km/h (16.7 lbf at 125 mph)
• Weatherproofing: IPX6 rating
• Antenna gain 2.4 GHz: 10 dBi
• 5 GHz: 15 dBi

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
