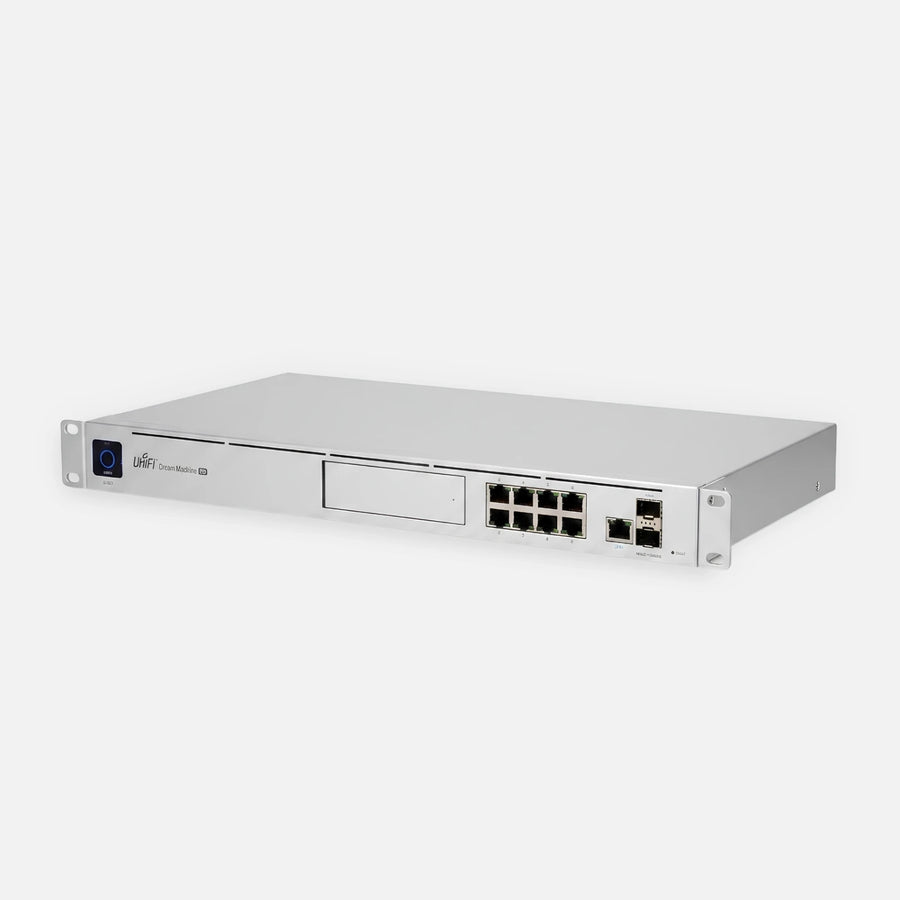

Ubiquiti UDM-PRO UniFi Dream Machine Pro 8-Port Gigabit PoE Security Gateway

PRODUCT OVERVIEW

Ubiquiti UDM-PRO is an all-in-one enterprise network appliance combining a security gateway, 8-port switch, UniFi Network controller, and NVR support. Features dual WAN with 10G SFP+, IDS/IPS up to 3.5 Gbps, and integrated 3.5" HDD bay.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• All-in-one UniFi enterprise security gateway and network appliance
• Integrated 8-port Gigabit LAN switch
• Dual WAN ports: (1) 10G SFP+ and (1) Gigabit RJ45
• (1) 10G SFP+ LAN port
• UniFi Network controller embedded
• Supports UniFi Protect (HDD not included)
• 3.5" HDD bay (2.5" HDD supported)
• IDS/IPS throughput up to 3.5 Gbps
• Dual WAN failover support
• Supports LTE failover with UniFi LTE device (requires active LTE account)
• Supports UniFi SmartPower RPS (USP-RPS) for power redundancy

TECHNICAL SPECIFICATIONS

Model: UDM-PRO
Processor: Quad ARM Cortex-A57 at 1.7 GHz
System Memory: 4 GB DDR4
On-Board Storage: 16 GB eMMC
IDS/IPS Throughput: 3.5 Gbps
LAN Ports: (8) 10/100/1000 RJ45
WAN Ports: (1) 10/100/1000 RJ45, (1) 1/10G SFP+
LAN SFP+: (1) 1/10G SFP+
Management Interfaces: Ethernet In-Band, Bluetooth BLE
Drive Bay: (1) 3.5" HDD (2.5" supported) – Drive not included
Max Power Consumption: 33W
Power Method: Universal AC Input 100–240VAC, 50/60 Hz; (1) RPS DC Input
Internal Power Supply: 50W / 12V
Voltage Range: 100–240VAC
ESD/EMP Protection: Air ±16 kV, Contact ±12 kV
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5–95% Noncondensing
Dimensions: 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight: 3.90 kg (8.60 lb); 3.99 kg (8.80 lb) with brackets
Certifications: CE, FCC, IC
