UBIQUITI

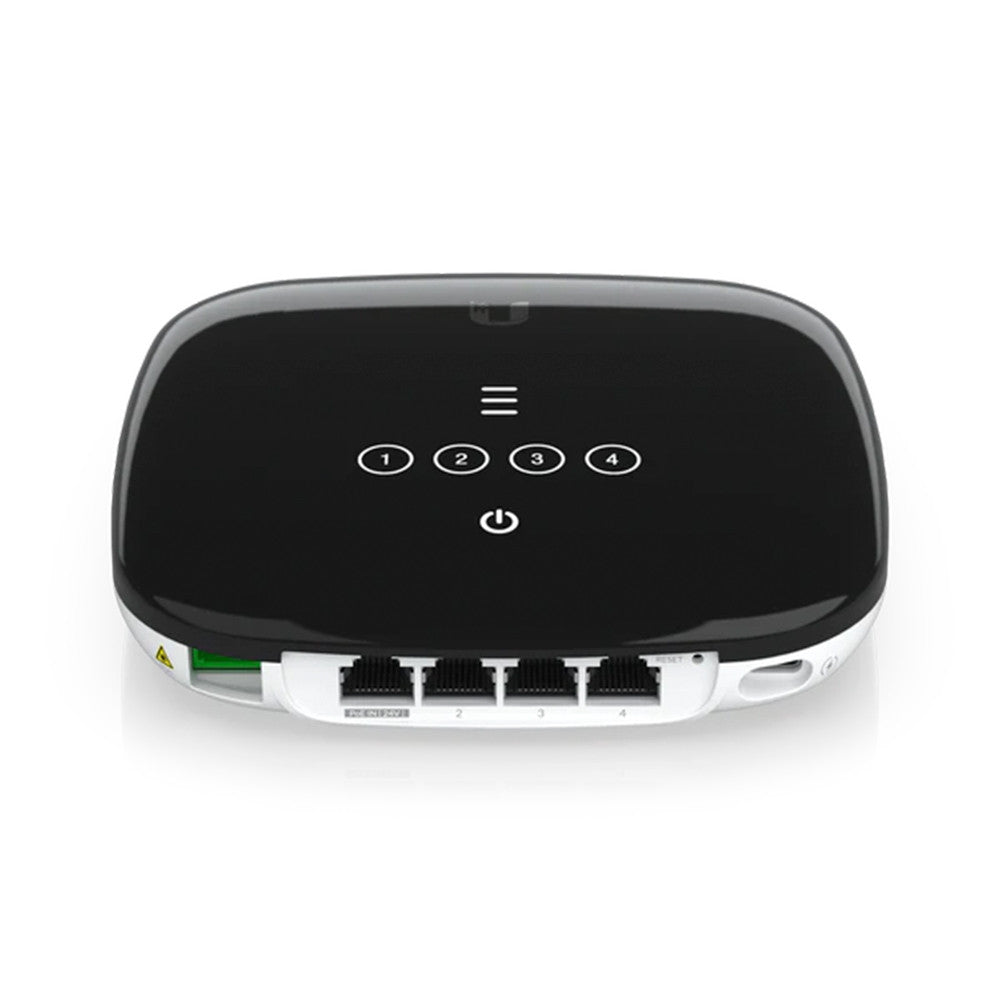

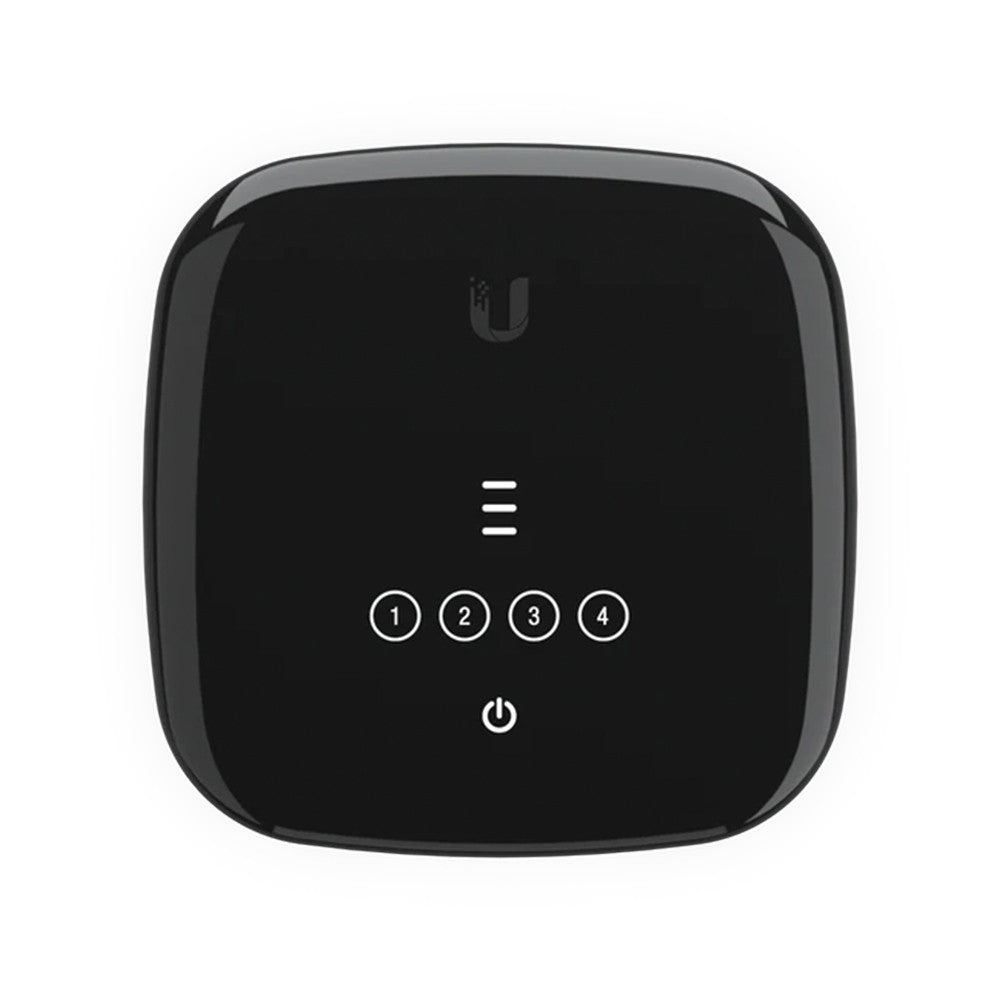

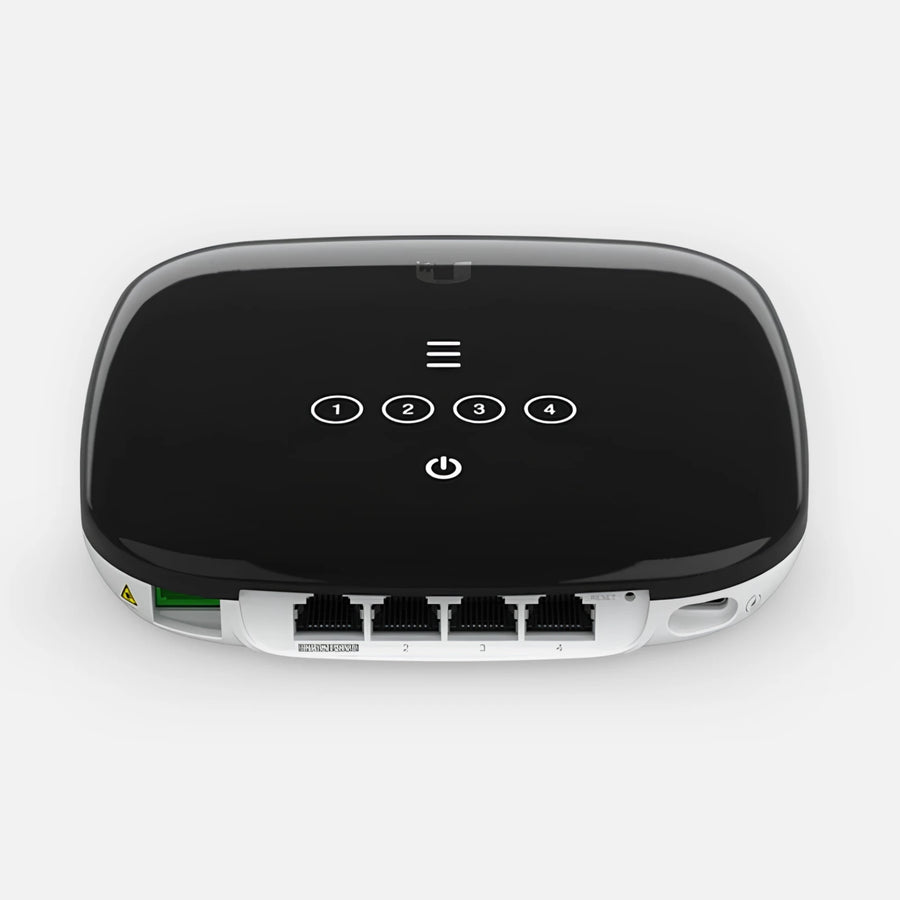

Ubiquiti UF-WiFi6 WiFi 6 GPON ONU 4-Port Gigabit PoE
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
Ubiquiti UF-WiFi6 is a GPON customer-premises equipment (CPE) device with integrated dual-band WiFi 6. It supports up to 2.488 Gbps downstream and 1.244 Gbps upstream over GPON, with an SC/APC WAN port and four GbE LAN ports for fiber access deployments.
PRODUCT TYPE / CATEGORY
Networking
Fiber
KEY FEATURES
• GPON ONU/ONT with integrated WiFi 6
• Physical fiber reach up to 20 km
• ITU-G.984 GPON WAN interface with SC/APC connector
• Supports 2.488 Gbps downstream / 1.244 Gbps upstream line rates
• Dual-band 802.11ax (2.4 GHz / 5 GHz)
• Aggregate WiFi throughput rate up to 1.5 Gbps
• (4) Gigabit RJ45 LAN ports
• 24V passive PoE input and USB-C power support
• VLAN support and GEM port encryption
• Remote reset, reboot, and firmware upgrade capability
• UISP Mobile App support
TECHNICAL SPECIFICATIONS
• Model: UF-WiFi6
• Dimensions: 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25 in)
• Weight: 415 g (0.99 lb)
• Enclosure: UV-stabilized polycarbonate
INTENDED USE / APPLICATIONS
• GPON fiber-to-the-premises (FTTP) deployments
• Residential or business fiber subscriber installations
• Dual-band WiFi 6 indoor connectivity with fiber backhaul
