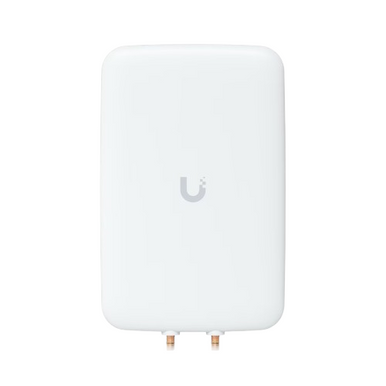

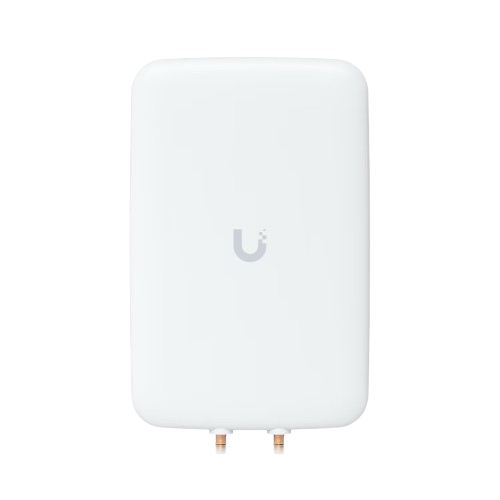

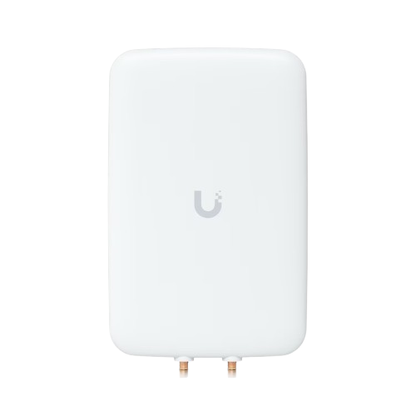

Ubiquiti UMA-D UniFi Directional Antenna 2.4GHz / 5GHz 15 dBi for UAP-AC-M

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Ubiquiti UMA-D UniFi Directional Dual-Band Antenna 2.4GHz 5GHz 15dBi UAP-AC-M

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti directional dual-band antenna for the UniFi AC Mesh UAP-AC-M, providing up to 10 dBi gain at 2.4 GHz and 15 dBi at 5 GHz with dual RP-SMA connections.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Directional dual-band antenna for 2.4 GHz and 5 GHz operation
• Designed for UniFi AC Mesh UAP-AC-M
• Up to 10 dBi gain at 2.4 GHz
• Up to 15 dBi gain at 5 GHz
• (2) RP-SMA RF connections
• Dual-linear polarization

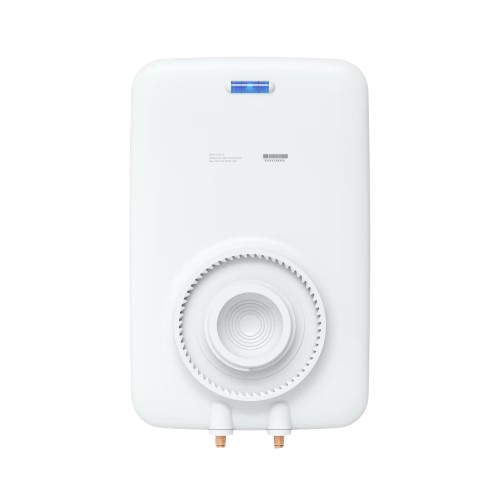

• Three-axis adjustable mount for directional alignment
• Outdoor UV-stabilized plastic enclosure
• Suitable for indoor and outdoor deployment

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Manufacturer: Ubiquiti
• Part Number: UMA-D
• Dimensions: 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3")
• Weight Without Mount: 400 g (0.9 lb)
• Weight With Mount: 480 g (1.1 lb)
• Enclosure Material: Outdoor UV-stabilized plastic
• Supported Frequency Range: 2.4–2.5 GHz / 5.1–5.9 GHz
• RF Connections: (2) RP-SMA
• Gain at 2.4 GHz: 10 dBi
• Gain at 5 GHz: 15 dBi
• HPOL Beamwidth at 2.4 GHz: 90°
• HPOL Beamwidth at 5 GHz: 45°
• VPOL Beamwidth at 2.4 GHz: 90°
• VPOL Beamwidth at 5 GHz: 45°
• Elevation Beamwidth at 2.4 GHz: 90°
• Elevation Beamwidth at 5 GHz: 45°
• Maximum VSWR: 2:1
• Polarization: Dual-linear
• Cross-Polarization Isolation at 2.4 GHz: 25 dB
• Cross-Polarization Isolation at 5 GHz: 30 dB

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Extending wireless coverage in outdoor environments
• Point-to-point and point-to-multipoint Wi-Fi links
• Directional wireless deployments intended to reduce interference
• Campus, warehouse, and industrial Wi-Fi networks
• Targeted coverage for UniFi AC Mesh deployments
