Ubiquiti USP-RPS Redundant Power System 950W DC Output 6 RPS Ports Touchscreen

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Ubiquiti USP-RPS UniFi SmartPower Redundant Power System 950W 6 RPS Ports

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti USP-RPS redundant power system provides a 950W DC power budget for up to six supported UniFi SmartPower devices, with automatic PSU failover, continuous monitoring, six RPS DC ports, and a 1.3-inch color touchscreen.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Networking Accessories

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• Redundant power system for supported UniFi SmartPower devices
• Supports connection of up to six supported devices
• 950W total DC power budget
• Continuously monitors attached devices
• Automatic failover when an internal AC/DC power supply failure is detected

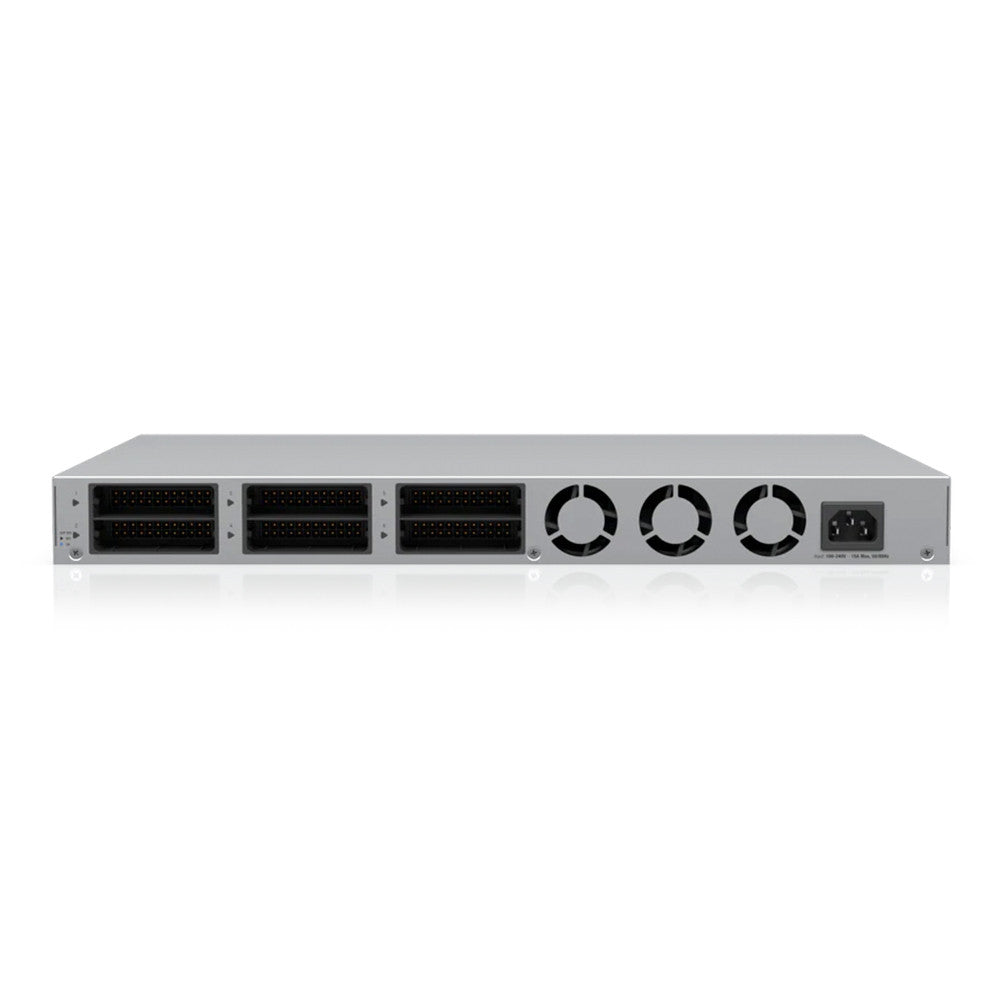

• (6) RPS DC power output ports
• (1) 10/100/1000 Mbps RJ45 network port
• Ethernet in-band management

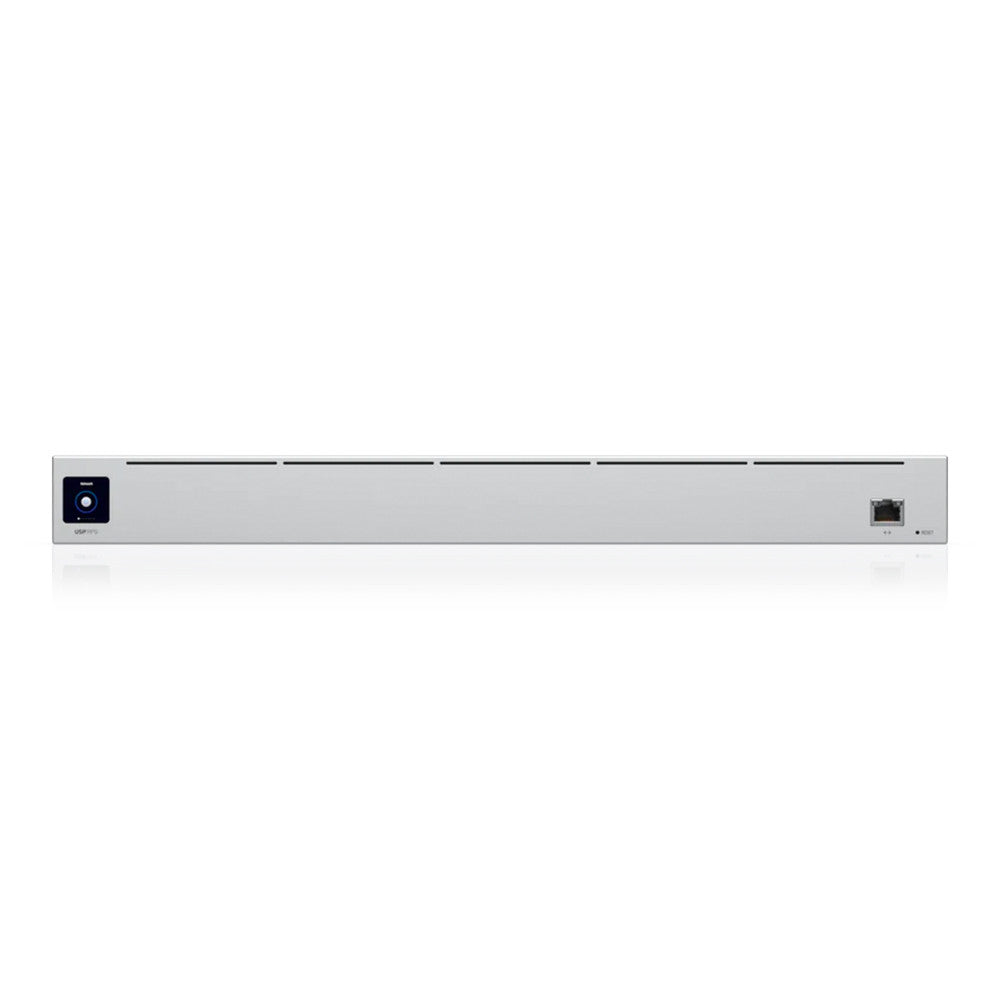

• Integrated 1.3-inch color touchscreen
• Universal 100–240VAC input
• Designed to provide redundant power for compatible high-power UniFi devices, including supported PoE switches
• System, RJ45 link/activity, and RPS activity indicators
• One USP-Cable included

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Manufacturer: Ubiquiti
• Model / Part Number: USP-RPS
• Product Family: UniFi SmartPower
• DC Power Budget: 950W
• Power Output Interfaces: (6) RPS DC ports
• Network Interface: (1) 10/100/1000 Mbps RJ45 port
• Management: Ethernet in-band
• Maximum Power Consumption: 995W
• Power Method: (1) universal AC input
• Supported Input Voltage: 100–240VAC
• Internal Power Supplies: 350W AC/DC and 645W AC/DC
• Display: 1.3-inch color touch panel
• Total 52VDC Output: 11.54A, 600W
• Total 11.5VDC Output: 30.44A, 350W
• Maximum 52VDC Output per RPS Port: 11.54A, 600W
• Maximum 11.5VDC Output per RPS Port: 30.44A, 350W
• Dimensions: 442.40 x 325.60 x 43.70 mm (17.42 x 12.82 x 1.72 in)
• Weight: 5.500 kg (12.13 lb)
• Weight with Mount Brackets: 5.590 kg (12.32 lb)
• ESD/EMP Protection, Air: ±16 kV
• ESD/EMP Protection, Contact: ±12 kV
• Operating Temperature: -5 to 45°C (23 to 113°F)
• Operating Humidity: 10% to 90% noncondensing
• Certifications: CE, FCC, IC
• Included USP-Cable Length: 1.5 m (4.9 ft)
• USP-Cable Conductor Type: Tinned copper
• USP-Cable Conductor Wire Gauge: (18) 16 AWG, (6) 24 AWG
• USP-Cable Insulation: PVC
• USP-Cable Jacket Material: PVC

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Provides redundant power protection for supported UniFi SmartPower devices
• Designed to maintain operation through automatic failover if an attached device experiences an internal AC/DC power supply failure
• Manufacturer documentation identifies UDM-Pro, USW-Pro-24, USW-Pro-24-PoE, and USW-Pro-48-PoE within its power-budget reference table
• Additional supported devices require separately available USP-Cables
