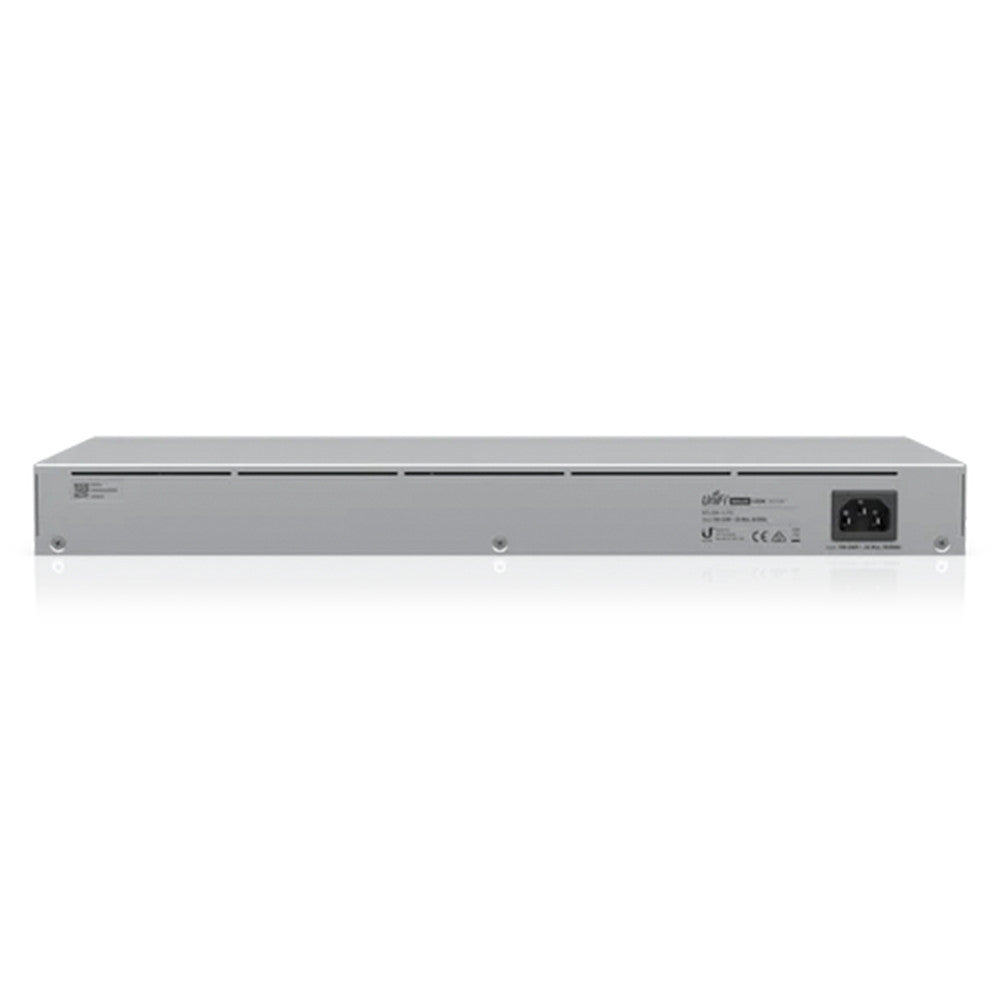

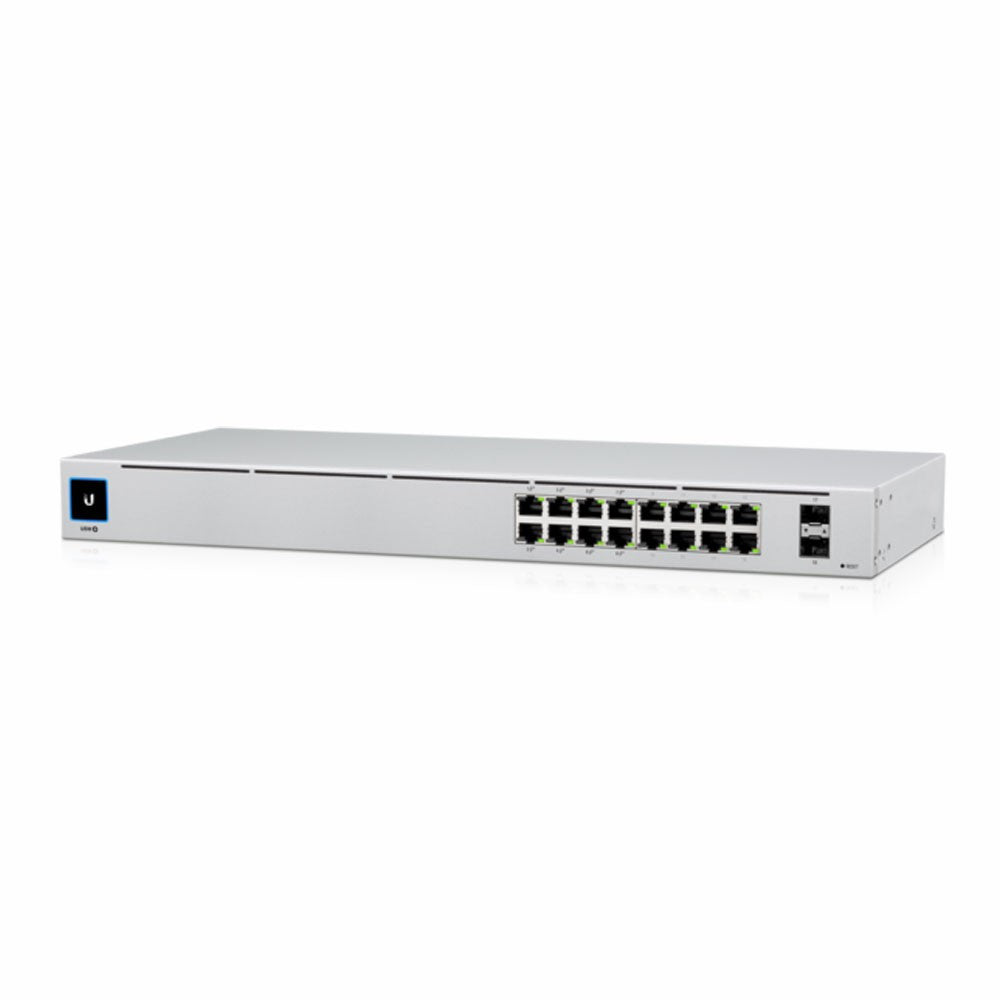

Ubiquiti USW-16-POE-Gen2 16-Port Gigabit PoE+ Switch 2x SFP 42W

PRODUCT OVERVIEW

The Ubiquiti USW-16-POE-Gen2 is a 16-port Layer 2 managed PoE switch featuring 8 PoE+ ports, 8 Gigabit RJ45 ports, and 2 SFP uplinks. It includes a silent fanless design and a 1.3" LCM color touchscreen for local switch management.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• 16-port Layer 2 managed switch
• (8) Gigabit RJ45 PoE+ ports
• (8) Gigabit RJ45 ports
• (2) 1G SFP ports
• 42W total PoE power budget
• Up to 32W PoE per port
• Silent, fanless cooling system
• 1.3" LCM color touchscreen with AR switch management
• Managed with UniFi Network application (Version 7.2.94 and later)
• Supports IEEE 802.3af and 802.3at

TECHNICAL SPECIFICATIONS

• Model: USW-16-POE-Gen2
• Total Ports: 16x 10/100/1000 Mb/s RJ45, 2x 1G SFP
• PoE Ports: 8x Gigabit RJ45 (PoE+)
• Non-PoE Ports: 8x Gigabit RJ45
• SFP Ports: 2x 10/100/1000 Mb/s
• Switching Bandwidth: 18 Gb/s (non-blocking)
• Forwarding Rate: 26.78 Mpps
• Transmission Method: Store-and-Forward
• Supported Protocols: Auto-MDIX/MDI, Port Mirroring
• Supported IEEE Standards: 802.3af, 802.3at
• PoE Power Budget: 42 W
• Maximum PoE per Port: 32 W
• Maximum Power Draw: 18.00 W
• AC Input: 100–240 VAC, 50/60 Hz
• Power Supply: Internal
• OS Compatibility: macOS 10 or later, Windows 7 or later, Linux
• Certifications: CE, FCC, IC (per manufacturer)
