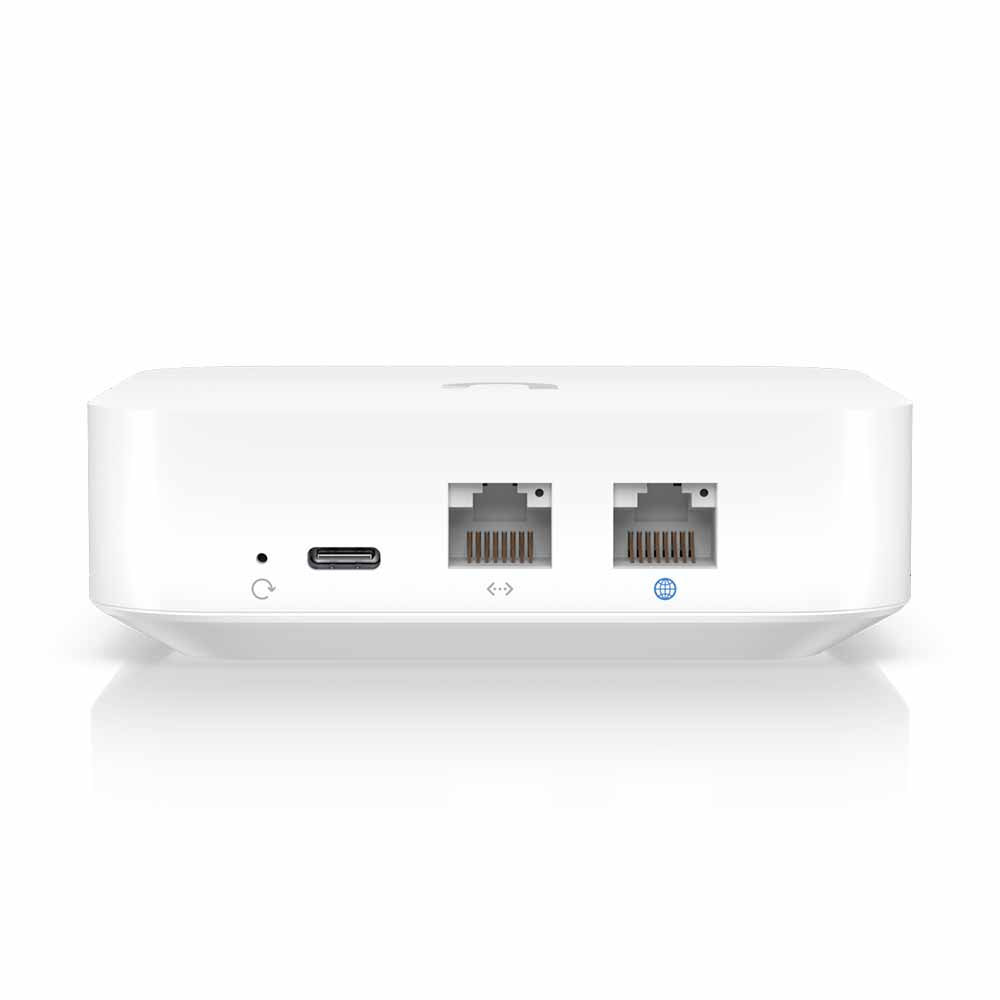

Ubiquiti UXG-Lite Gateway Lite

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Ubiquiti UXG-Lite UniFi Gateway Lite Gigabit Security Gateway

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti UXG-Lite is a compact UniFi gateway with Gigabit WAN/LAN connectivity, advanced firewall and IDS/IPS security, VPN capabilities, traffic management, and USB-C power for UniFi Network deployments.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Compact UniFi Gateway design
• (1) GbE RJ45 WAN port
• (1) GbE RJ45 LAN port
• Dual-core ARM Cortex-A53 processor at 1 GHz
• 1 GB DDR3L memory
• Ethernet and Bluetooth 5.1 management interfaces
• Application-aware firewall rules
• Signature-based IPS/IDS threat detection
• Full stateful firewall
• Content, country, domain, and ad filtering
• VLAN/subnet-based traffic segmentation
• Application and device-type identification
• Application, domain, and country-based QoS
• WiFi QoS with UniFi access points
• Internet quality and outage reporting
• Supports additional internet failover with LTE Backup
• WireGuard, L2TP, and OpenVPN server support
• OpenVPN client support
• OpenVPN and IPsec site-to-site VPN support
• Policy-based WAN and VPN routing
• DHCP relay and customizable DHCP server
• IGMP proxy
• IPv6 ISP support
• USB Type-C power input
• Status LED and reset button

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Manufacturer: Ubiquiti
• Model: UXG-Lite
• Product: Gateway Lite
• Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2 in)
• Weight: 320 g (11.3 oz)
• Enclosure Material: Polycarbonate
• Processor: Dual-Core ARM Cortex-A53 at 1 GHz
• Memory: 1 GB DDR3L
• Networking Interface: (1) GbE RJ45 WAN port; (1) GbE RJ45 LAN port
• Management Interface: Ethernet, Bluetooth 5.1
• Power Method: USB Type-C, 5V/3A
• Supported Input Voltage: 100-240V
• Maximum Power Consumption: 3.83W
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: CE, FCC, IC
• Application Requirement: UniFi Network version 8.0.7 or later
• License-Free SD-WAN: Supported when paired with a Cloud Key or Official UniFi Hosting
• Teleport: Supported when paired with a Cloud Key or Official UniFi Hosting
• Identity Enterprise VPN: Supported when paired with a Cloud Key

Manufacturer specifications are provided in the supplied UXG-Lite documentation. Page 1 identifies the physical interfaces, USB-C power input, dimensions, processor, and memory; page 2 specifies networking, security, VPN, and application requirements.
