UBIQUITI

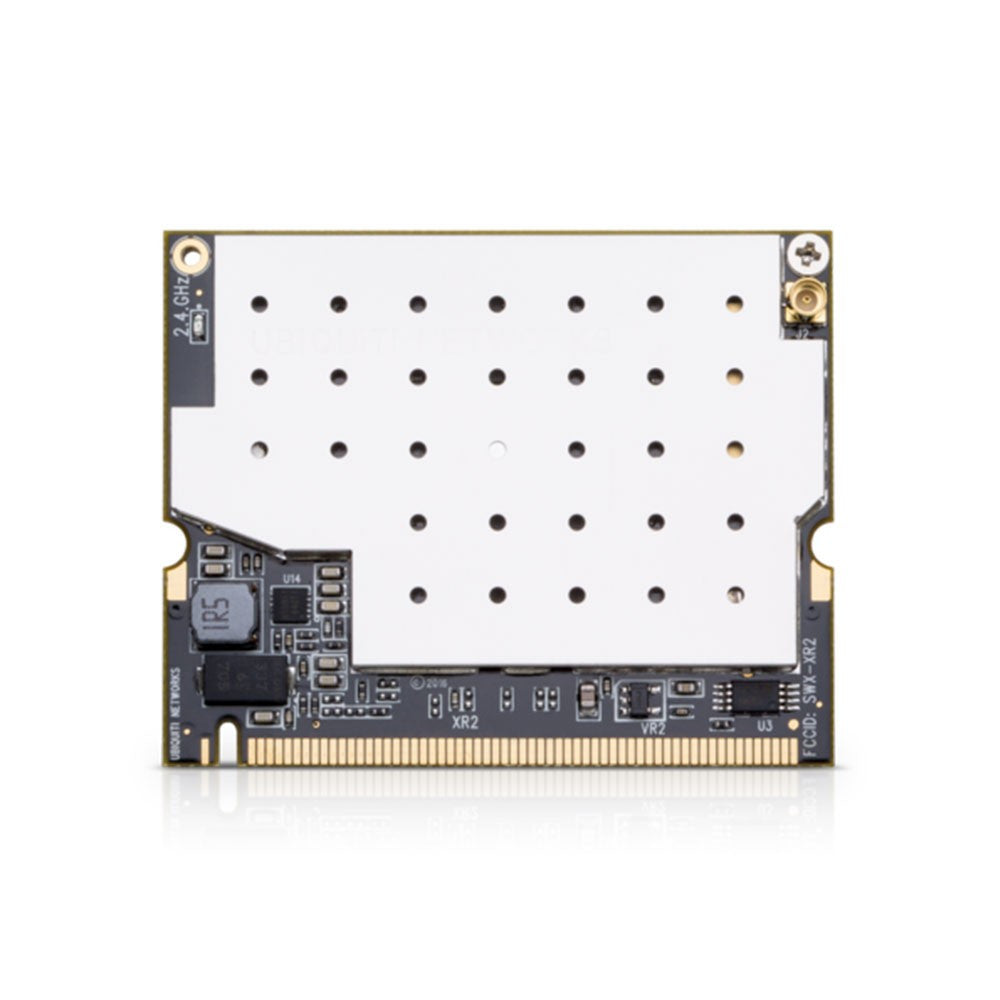

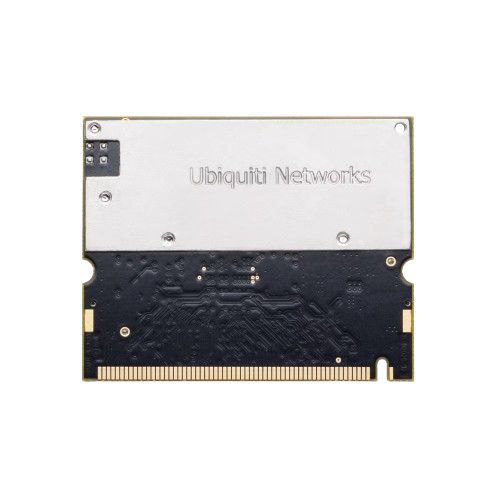

Ubiquiti XtremeRange 2.4 GHz Adapter
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT SPECIFICATIONS
SKU: XR2 - Radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.
Compatible with 802.11b/g Wi-Fi standards, the ExtremeRange2 Carrier-Class 2.4 GHz 802.11b/g Radio Module from Ubiquiti allows most Wi-Fi enabled devices to connect to the network. This radio module also operates on the 2.4 GHz frequency with up to 600 mW of output power ensuring maximum coverage. Once installed the multi-faceted ExtremeRage2 module can be configured to mesh, bridging, and infrastructure modes to suit the needs of a variety of networking environments.
Features
- Designed for mesh, bridging, and infrastructure applications
- 600mW output power
- ESD/EMP protection
- Enhanced sensitivity
- Extended temperature
- Enhanced filtering
- 5/10/20/40 MHz channels
- MMCX ant. connector
Technical Description
-
Model: XR2
- Interface: 32-bit mini-PCI type IIIA
- Operation voltage: 3.3V DC
- Radio operation: IEEE 802.11b/g, 2.4 GHz
- Antenna ports: Single MMCX
- TX channel width: 5, 10, 20, 40 MHz
- Data rates: 6, 9, 12, 24, 36, 48, 54 Mbps
- Security: WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
- Operating temperature: -45 to 90° C (-49 to 194° F)
- RoHS complience: Yes
- Certifications: FCC, IC
