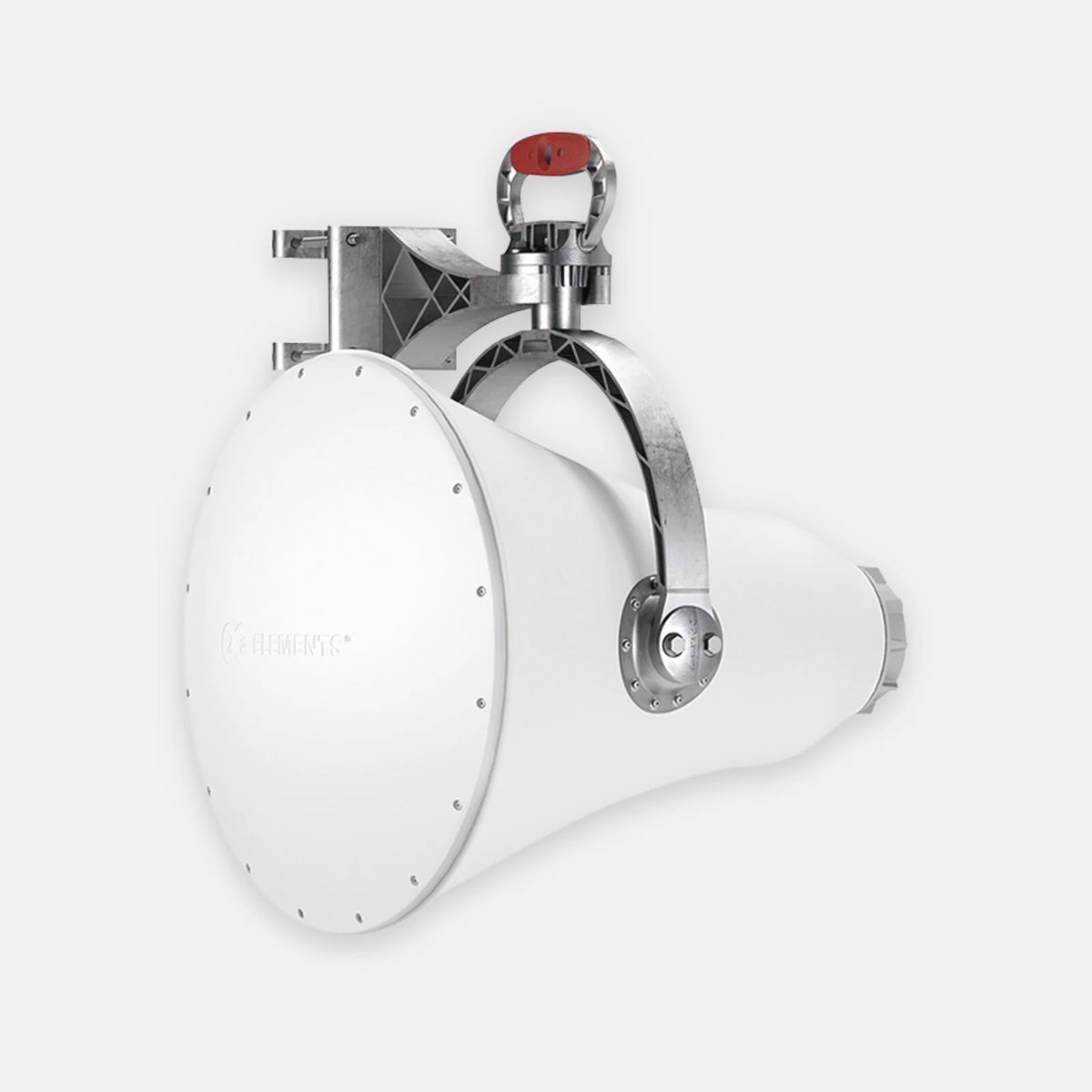

Rf Elements UH-TP-5-24 Directional UltraHorn™ Antenna, TwistPort 24 dBi

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

RF elements UH-TP-5-24 UltraHorn™ Directional Antenna TwistPort™ 24 dBi

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖

Highly directional scalar horn antenna designed for point-to-point wireless links. Features TwistPort™ connectivity, 24 dBi gain, ultra noise rejection, and a symmetrical beam pattern without side lobes.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘

Networking — Antennas (Networking)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

• Highly directional scalar horn antenna design
• TwistPort™ quick-locking waveguide connector
• 24 dBi antenna gain
• Symmetrical beam pattern without side lobes
• Ultra noise rejection characteristics
• Designed for long-distance point-to-point wireless links
• Virtually lossless radio connection design
• Simplified “twist and lock” radio installation
• No additional shielding accessories required
• Integrated complete antenna solution
• Optimized beamwidth for simplified aiming and alignment
• Innovative separated mounting bracket system
• Quick slide-on antenna installation design
• Suitable for high-noise wireless environments
• Compact and efficient deployment design

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Model: UH-TP-5-24
• Brand: RF elements
• Antenna Type: Horn
• Gain: 24 dBi
• Connector Type: TwistPort™ Quick Locking Waveguide Port
• Environmental Rating: IP55
• Pole Mounting Diameter: 0.59 - 3.38 in (15 - 86 mm)
• Operating Temperature: -22°F to +131°F (-30°C to +55°C)
• Wind Survival: 100 mi/h
• Mounting System: Separated bracket mounting design

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Point-to-point wireless links
• Long-distance wireless backhaul deployments
• High-noise RF environments
• Outdoor wireless networking installations

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐒𝐇𝐈𝐏𝐏𝐈𝐍𝐆

• Handling time: up to 2 business days
• Orders often ship the same business day
• Orders are not shipped on weekends or holidays
• Carrier is seller-selected (UPS, USPS, FedEx, or equivalent)
• Shipping delays may occur during high-volume periods or carrier-related issues

• Shipments to Alaska, Hawaii, Puerto Rico, or Guam may be cancelled due to cost
• Orders over $100 require a valid postal address
• Orders over $250 require insurance and signature confirmation
• International buyers are responsible for customs duties and import taxes
• Restricted destinations: Cuba, Iran, North Korea, Sudan, Syria, Russia

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐑𝐄𝐓𝐔𝐑𝐍𝐒

• Returns accepted within 30 days
• Item must be returned in the same condition as received
• Seller pays return shipping

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐃𝐀𝐓𝐀 𝐀𝐂𝐂𝐔𝐑𝐀𝐂𝐘 𝐃𝐈𝐒𝐂𝐋𝐀𝐈𝐌𝐄𝐑

Product details are based on available manufacturer information and may be subject to change without notice.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐁𝐔𝐋𝐊 / 𝐕𝐎𝐋𝐔𝐌𝐄 𝐁𝐔𝐘𝐄𝐑𝐒

For bulk orders or volume inquiries, please contact us to confirm availability and pricing.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
