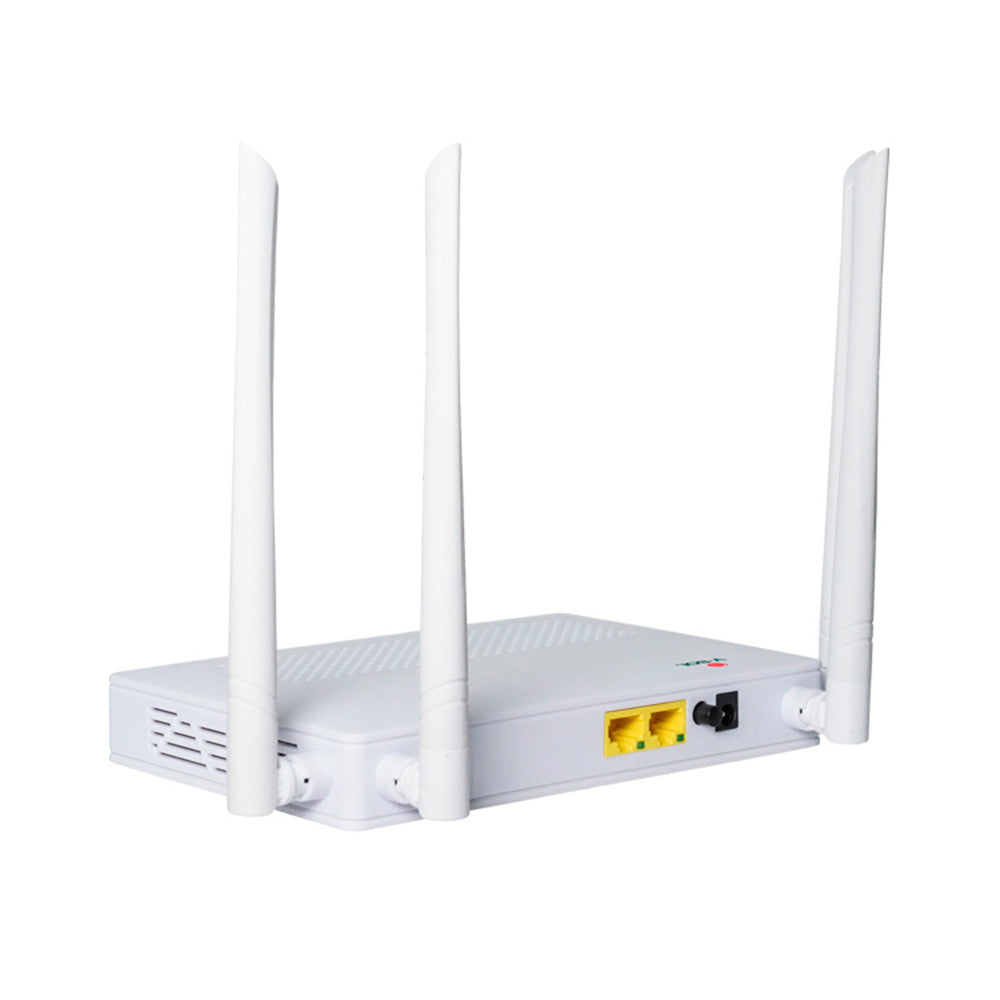

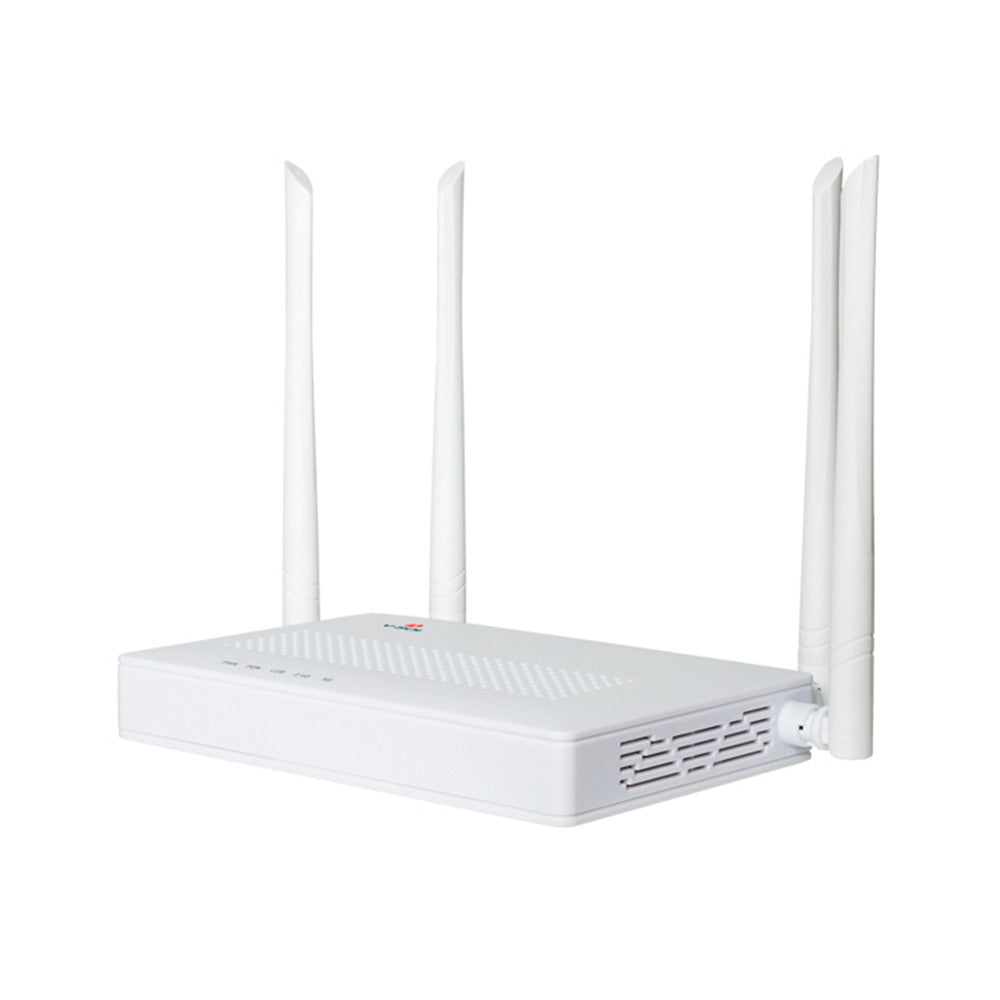

V-Sol V2802DAC 2GE WiFi5 XPON ONU GPON EPON Fiber

PRODUCT OVERVIEW

The V2802DAC (2GE+WiFi5 XPON ONU) is designed to meet the FTTH requirements of fixed network operators . The ONU is based on a high-performance chipset (Realtek) technology solution , supporting IEEE802.11b/g/n/ac WIFI technology and other Layer 2/Layer 3 functions . The ONU supports the OAM/OMCI protocol, configure or manage various services of the ONU on the VSOL OLT. The ONU has high reliability and is easy to manage and maintain . It has QoS guarantees for different services . It complies with international technical standards such as IEEE802.3ah, ITU-T G.984, etc.

PRODUCT TYPE

Fiber

KEY FEATURES

• Detect and exchange PON mode automatically.
• Support EasyMesh protocol
• WiFi5 Dual Band 1200Mbps
• IPv4/IPv6 Stack
• 178mm×120mm×30mm
• 0.31Kg
• Function Data O&M OAM/OMCI, Telnet,WEB, TR069
• Support full management of HGU functions by VSOL OLT
• Connect Mode Support bridge, router & bridge/router mixed mode
• Functions Full speed non-blocking switching
• 2K MAC address table
• 64 full range VLAN ID
• Support VLAN tag, untag, transparent, trunk, translation mode
• Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
• Support auto polarity detection of Ethernet ports (AUTO MDIX)
• Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
• QoS Support 4 queues
• Support SP, WRR, 802.1P and DSCP

TECHNICAL SPECIFICATIONS

• Brand: V-Sol
• Model: V2802DAC
• Product Type: Fiber
• Detect and exchange PON mode automatically.
• Support EasyMesh protocol
• WiFi5 Dual Band 1200Mbps
• IPv4/IPv6 Stack
• 178mm×120mm×30mm
• 0.31Kg
• Function Data O&M OAM/OMCI, Telnet,WEB, TR069
• Support full management of HGU functions by VSOL OLT
• Connect Mode Support bridge, router & bridge/router mixed mode
• Functions Full speed non-blocking switching
• 2K MAC address table
• 64 full range VLAN ID
• Support VLAN tag, untag, transparent, trunk, translation mode
• Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
• Support auto polarity detection of Ethernet ports (AUTO MDIX)
• Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
• QoS Support 4 queues
• Support SP, WRR, 802.1P and DSCP
• L3 Static Route, DHCP Server
• NAT/DMZ/DDNS/Virtual Server
• DHCP/PPPOE/Static
• IPv4, IPv6 and IPv4/IPv6 dual stack
• Wireless Authentication: WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
• Integrated 802.11b/g/n/ac
• Modulation type: DSSS, CCK and OFDM
• Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
• Easymesh
• Security Support ACL
• Support MAC filter Based on MAC or URL

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
