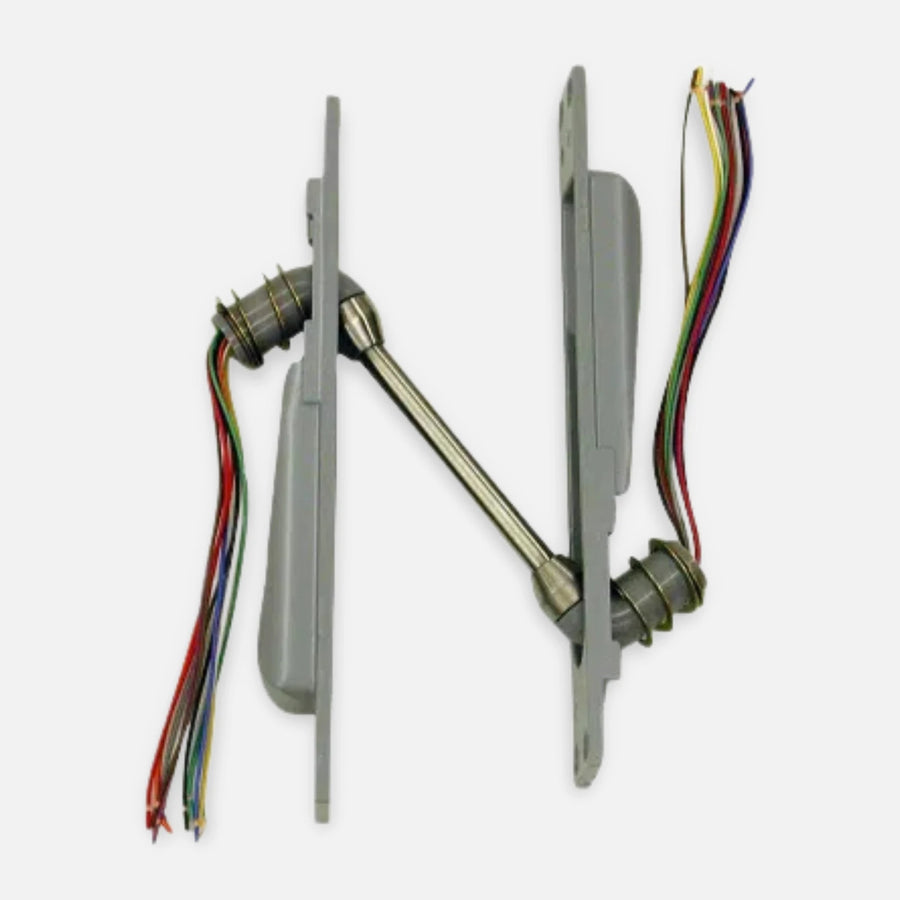

Von Duprin EPT-10 Electrical Power Transfer, 10 Wire, 689 Aluminum Finish

Manufacturer part number
EPT-10
EhubAmerica SKU
VON-EPT

$308.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Von Duprin EPT-10 is an electrical power transfer that carries ten 24-gauge wires from the door frame to the door leaf, so electrified exit devices, locks and other hardware on the door can be powered and monitored. This item is the 689 finish, powder-coated aluminum.

Each conductor is rated up to 1 A at 24 VDC with a 16 A maximum surge. The 9 x 1-1/4 x 1-5/8 in (229 x 32 x 38 mm) housing is completely concealed when the door is closed, and ball-and-socket joint construction protects the wiring from cuts and pinches on heavy-traffic and high-abuse openings. Von Duprin states the EPT-10 is UL 634, ULC/ORD C634 and UL 10C/CAN-ULC-S104 certified and UL listed for use on fire doors.

  • Best for: concealed power and signal transfer to electrified exit devices and locks on heavy-traffic and high-abuse openings.
  • System fit: electrified door hardware that needs up to ten conductors across the door at up to 1 A, 24 VDC per wire.
  • Important to know: keep each conductor within 1 A at 24 VDC; the 689 finish is powder-coated aluminum, with 622 black and 695 dark bronze also offered.

Why teams choose it

Built for secure sites

  • Ten conductors

    ten 24 gauge wires across the door, up to 1 A at 24 VDC each.

  • Hidden when closed

    the transfer is completely concealed with the door shut.

  • Protected wiring

    ball-and-socket joints guard against cuts and pinches.

  • Fire door listed

    UL 10C/CAN-ULC-S104 and UL 634 listings.

Specifications

Technical specifications

Ask about a spec
General
Brand Von Duprin
Model EPT-10
SKU VON-EPT
Device Type Electrical power transfer
Conductors 10 x 24 AWG wires
Finish 689 powder-coated aluminum
Mount Type Concealed when door is closed
Construction Ball-and-socket joint wire protection
Application Heavy-traffic and high-abuse openings
Finish Options 622 matte black; 689 aluminum; 695 dark bronze
Electrical
Current Rating Up to 1 A at 24 VDC per conductor
Maximum Surge 16 A
Physical
Housing Dimensions 9 x 1-1/4 x 1-5/8 in (229 x 32 x 38 mm)
Listings and Approvals
Agency Approvals UL 634, ULC/ORD C634 and UL 10C/CAN-ULC-S104 certified
Fire Doors UL listed for use on fire doors
