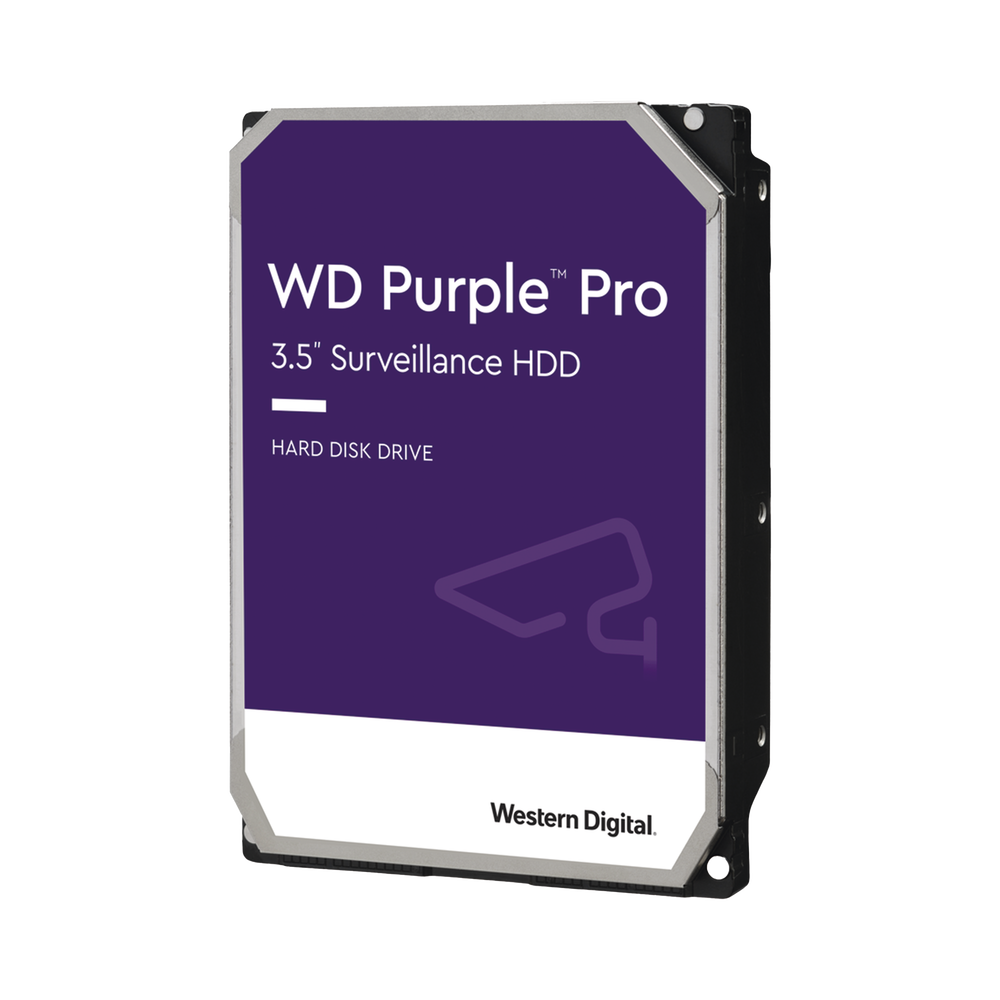

Western Digital (wd) WD102PURP 10TB Purple Pro Hard Drive / 7200 RPM / Optimized for Video Surveillance Solutions with Analytics (Meta Data) / 24-7 Use / 5-Year Warranty

WESTERN DIGITAL

Western Digital WD102PURP 24TB Purple Pro 7200RPM Surveillance Hard Drive

Product identifier
SKU WD102PURP
$600.50
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Western Digital model: WD102PURP

The WD Purple Pro is an enterprise-class surveillance hard drive designed for demanding video recording and AI analytics environments. This 24TB capacity drive delivers ultimate reliability and performance for high-end video recorders and analytics servers, supporting up to 64 HD cameras and 32 simultaneous AI streams. Built with helium drive technology and featuring 7200 RPM spindle speed, it offers maximum internal transfer rates of 287 MB/s with 512MB cache. The drive incorporates innovative AllFrame technology to reduce dropped video frames and includes Western Digital Device Analytics for proactive health monitoring.

General Characteristics

  • Capacity: Up to 24TB (formatted)
  • Form Factor: 3.5-inch
  • Interface: SATA 6Gb/s
  • Recording Technology: CMR (Conventional Magnetic Recording)
  • Drive Technology: Helium-filled
  • Advanced Format: Yes
  • RV Sensors: Yes
  • RoHS Compliant: Yes
  • Maximum Drive Bays Supported: No Limit
  • Camera Support: Up to 64 HD cameras
  • AI Streams: 32 simultaneous streams
  • Firmware Features: AllFrame technology, Tarnish resistant components
Performance Specifications
  • Interface Transfer Rate: 6 Gb/s (max)
  • Internal Transfer Rate: 287 MB/s (max)
  • Cache Size: 512 MB
  • Spindle Speed: 7200 RPM
  • Load/Unload Cycles: 600,000
  • Non-recoverable Read Errors: <1 in 10^15 bits

*Based on read speed, performance may vary depending on host device and usage conditions

Physical & Electrical
  • Power Consumption: 6.5W (Read/Write), 5.9W (Idle), 1.2W (Standby/Sleep)
  • Operating Temperature: 32°F to 149°F
  • Non-operating Temperature: -40°F to 158°F
  • Operating Shock: 40Gs (2ms, read/write)
  • Non-operating Shock: 200Gs (2ms)
  • Acoustics: 20 dBA (Idle), 32 dBA (Seek average)
  • Height: 1.028 in / 26.1 mm
  • Length: 5.787 in / 147 mm
  • Width: 4 in / 101.6 mm
  • Weight: 1.48 lb / 0.67 kg
  • Annualized Workload Rate: Up to 550 TB/year
  • MTBF: 2,500,000 hours
  • Workload Rating: Designed for 24/7 surveillance operation
  • Health Monitoring: WDDA (Western Digital Device Analytics)

Documentation

  • ✉️

Key Features

  • Massive 10 TB Storage for High-Resolution Video Retention
  • 7200 RPM Spindle Speed for Fast Data Access and Transfer
  • SATA III 6 Gb/s Interface With 512 MB Cache Buffer
  • Supports up to 64 HD Cameras Simultaneously for Large Systems
  • Optimized for Video Analytics and Metadata Processing
  • Low Power Consumption at 8.6W During Active Operation
