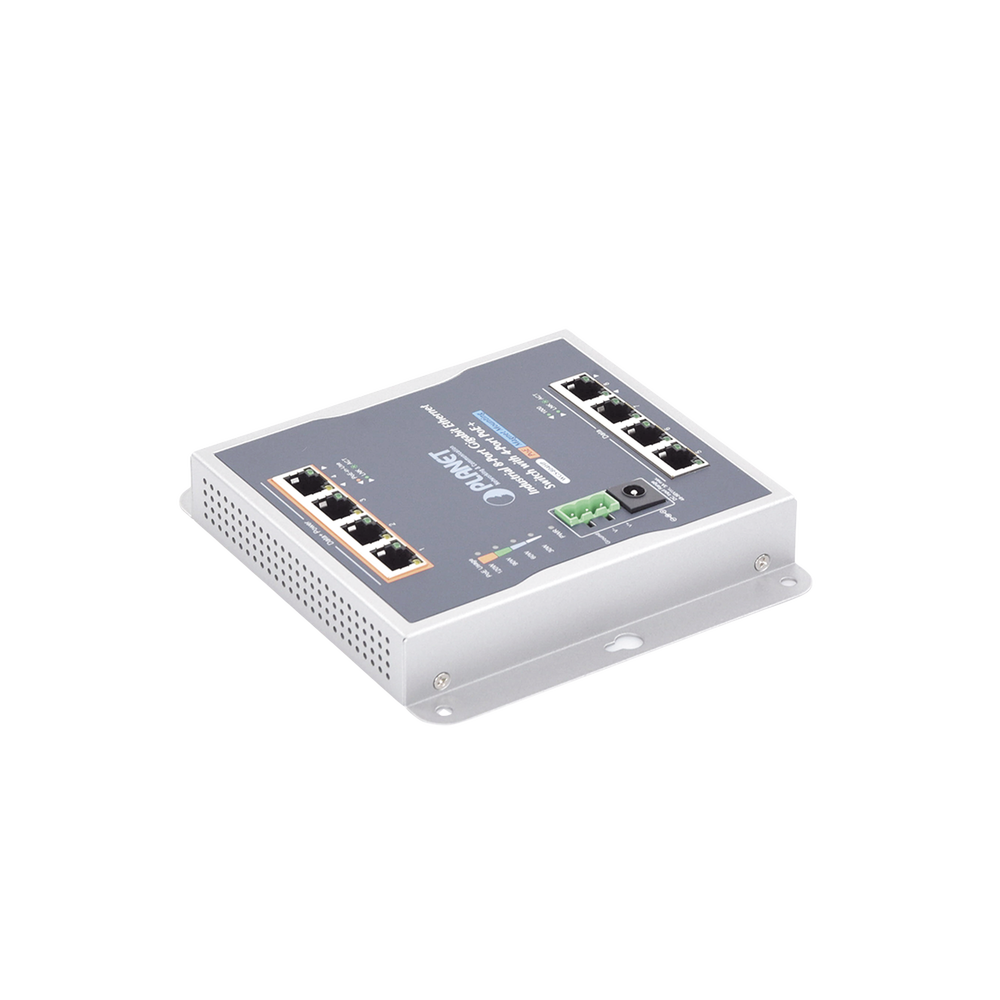

Planet WGS-804HP Industrial 8 Gigabit Ports Wall Switch with 4 PoE+ 802.3at Ports 120W and 4 Ethernet Gigabit

PLANET

Planet WGS-804HP 8-Port Gigabit PoE+ Industrial Switch 120W 802.3at

Product identifier
SKU WGS-804HP
$88.99
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Hardware Features
Ports: - 8 Ports 10/100/1000BASE-T RJ45.
- 4 Ports PoE 802.3af / PoE+ 802.3at (Ports 1 and 4).
PoE: - Powers devices PoE 802.3af and PoE+ 802.3at.
- Total power: 120W.
Performance: - 11.9 Mpps.
Installation and power supply:

- Wall mount, magnetic wall mount and DIN-rail kit
- Dual power supply with con Failover.

DC power jack with 2.0mm central pole (recommended PWR12048).
Physical and Electrical Characteristics: - Power supply: 48~56Vcc, 3A max. (Does not include power supply)
- Protection: Protection ESD of 6KV DC.
- Operating temperature: -10 ~ 60ºC
- Dimensions: 148 x 134 x 25 mm.
- Weight: 510g.



Key Features

  • Compact Flat Design for Space-Constrained Industrial Environments
  • Dual Power Input With Automatic Failover for Continuous Operation
  • 6000 VDC EFT Protection on Power Lines for Enhanced Safety
  • Front Access Design for Easy Installation and Maintenance
  • IP30 Metal Housing for Industrial Environment Protection
  • Operating Temperature Range From -40°F to 167°F
