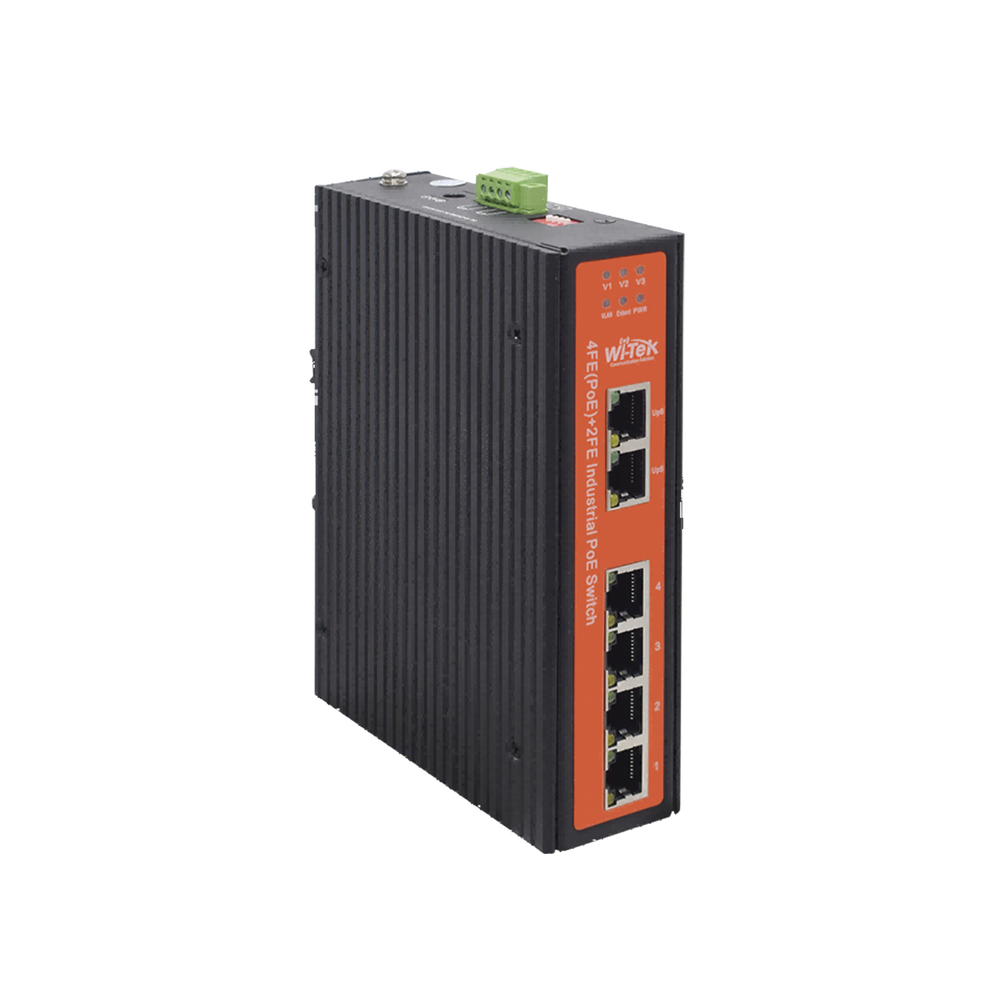

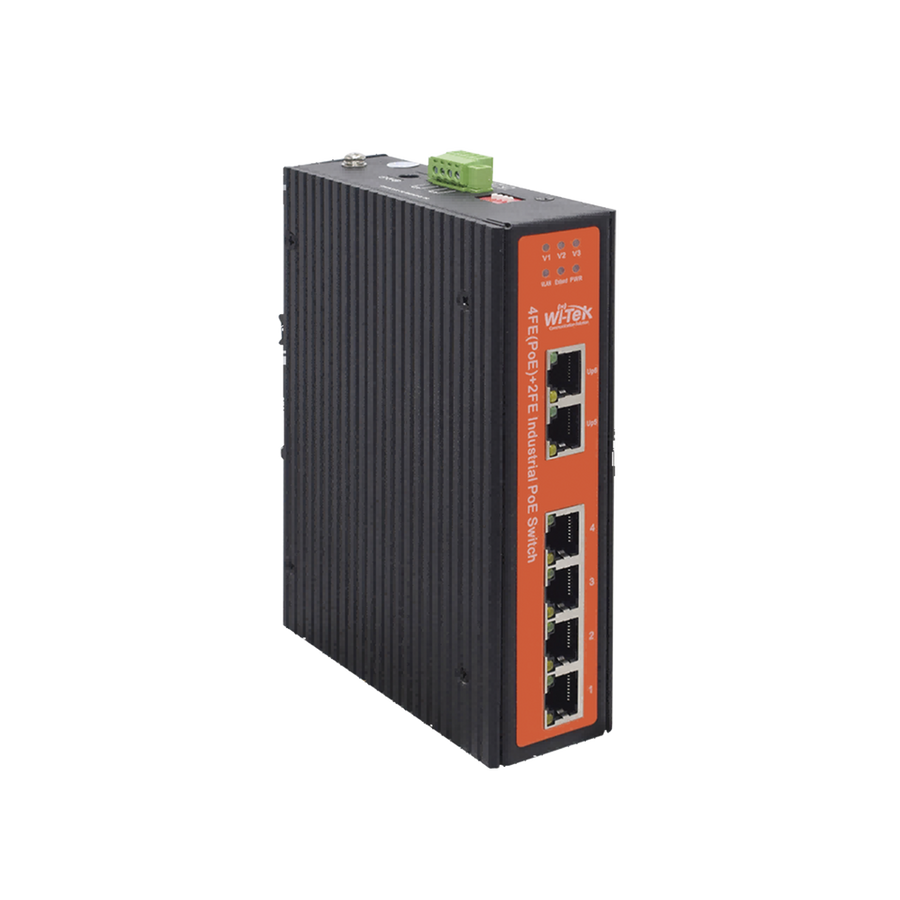

Wi-Tek WIPS206IV2 6-Port PoE Switch 802.3af/at Watchdog 250m Extended
Product identifier
SKU
WIPS206IV2
$70.79
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Description
Wi-Tek's hardened PoE switch is designed to provide a network transport solution for the CCTV market. PoE watchdog smart function can monitor and recover the operation of IP cameras persistently and automatically. 250 meters extend mode design is ideal for long-distance PoE transmission applications. It supports flexible and multiple installation methods, such as wall mounting and DIN-Rail mounting methods. A redundant power supply design guarantees its stable and reliable operation.
Features:
- Unmanaged PoE switch
- 4*10/100 Base-TX PoE ports and 2*10/100 Base-TX uplink ports
- Abundant PoE ports:
- Ports 1: 802.3 af/at/bt 90W
- Ports 2-4: 802.3 af/at PoE
- Multiple DIP mode: Watchdog/EX_1-2/EX_1-4/VLAN
- 6kV surge immunity
Specifications:
- Ports: 8FE + 2GE + 2SFP
- MAX table: 2K
- Switching capacity: 1.2 Gbps/ non blocking.
- Packet forwarding rate: 0.89Mpps
- PoE standard: Ports 1-4: 802.3af/at PoE
- Watchdog: yes
- 250m PoE
- VLAN
- Operating temperature: -30 ºC ~ 65 ºC
- Dimensions(WxDxH): 119 x 87 x 28 mm
Key Features
- Extended PoE Range up to 820 ft for Long-Distance Applications
- Industrial-Grade Design Withstands Harsh Environments
- 6 kV Surge Immunity for Enhanced Electrical Protection
- Redundant Power Supply Design for High Availability
- Wall Mount and DIN Rail Mount Installation Options
- Smart PoE Surveillance Function for IP Camera Monitoring
