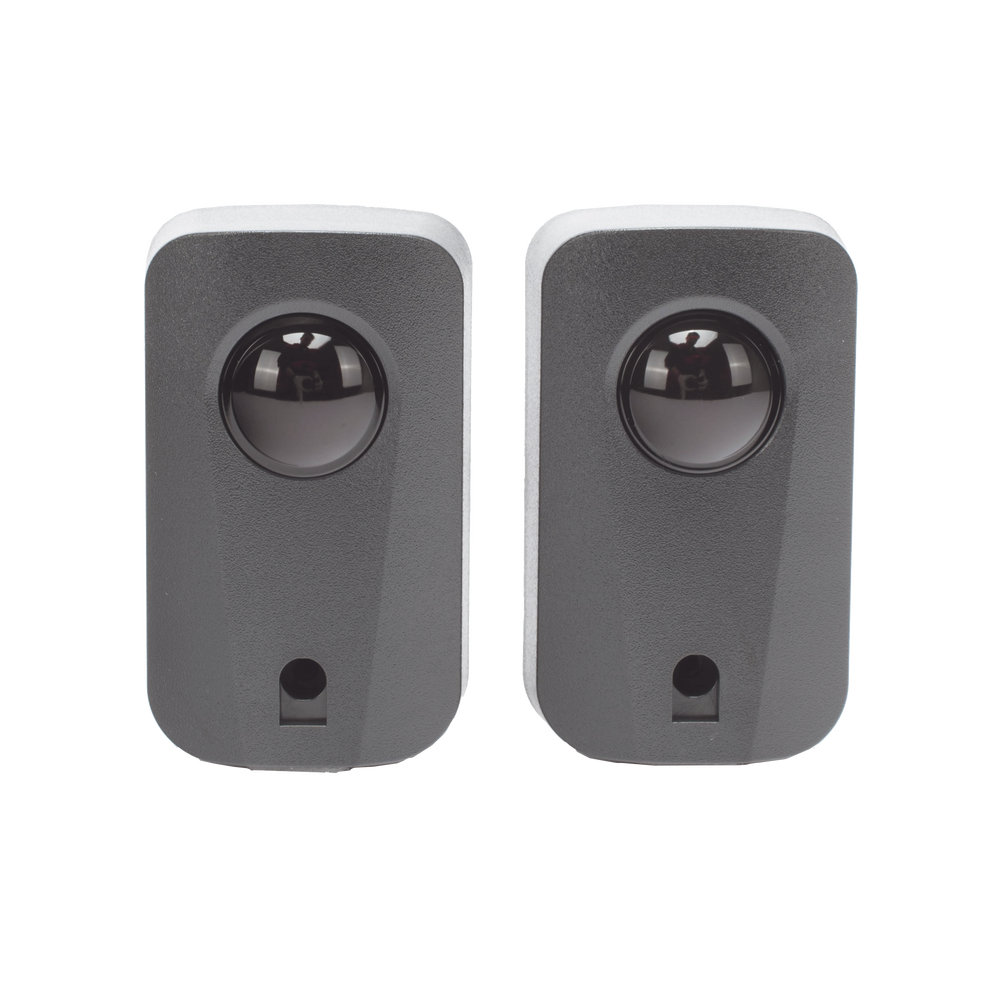

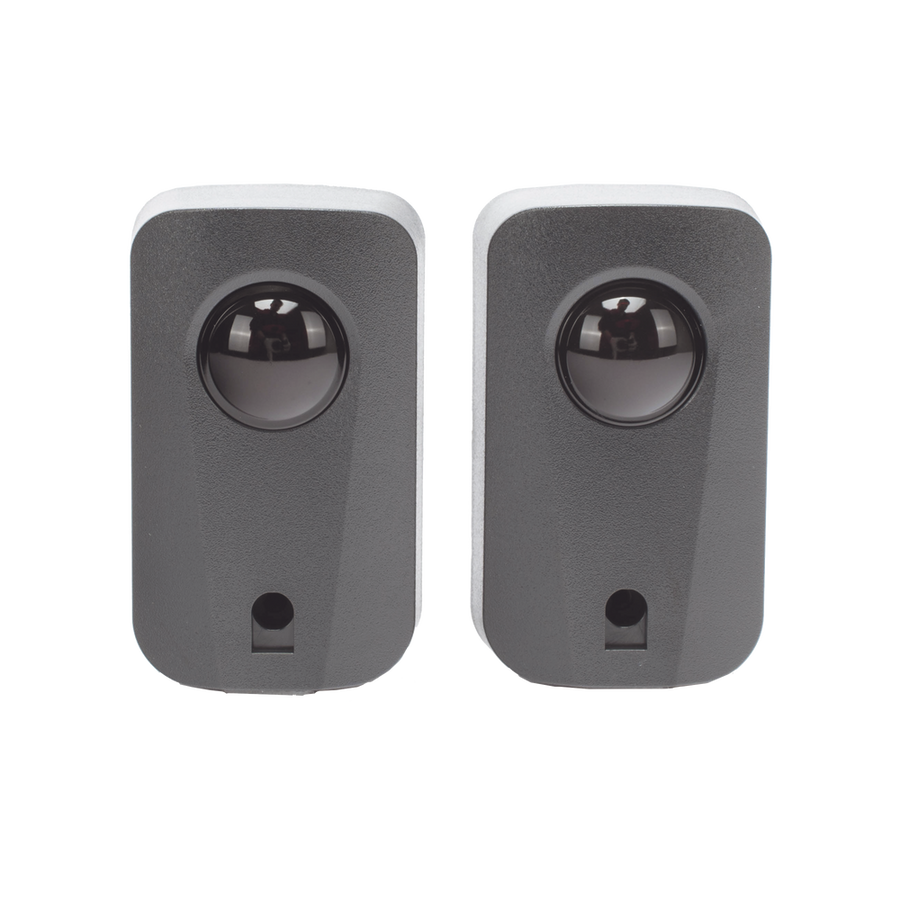

Accesspro XBS-IR33 33ft Infrared Photocell 12/24VDC Relay Output
Product identifier
SKU
XBS-IR33
$27.99
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Features:
- Operating voltage: 12/24 Vdc/Vac
- Consumption: 100 mA
- Response time: 1 seg.
- Operating temperature: -10 ~ 50 °C
- Relay output COM/NO/NC
- Operation distance between transmitter and receiver: 10m
- Dimensions: 4.5 cm Width x 7.5 cm Height
- Weight: 100grs.
What does the XBSIR33 include?
- 1 IR transmitter with relay output NO/NC/COM, requires 12 Vdc power supply.
- 1 IR receiver, requires 12 Vdc power supply.
Key Features
- 33 ft Infrared Detection Range for Precise Obstacle Sensing
- 12/24 VDC/VAC Dual Voltage Operation for Flexible Installation
- Fast 1 Second Response Time for Immediate Safety Activation
- IP54 Weatherproof Rating for Outdoor and Harsh Environments
- Relay Output With NO/NC/COM Contacts for Versatile Control
- Compact 1.8 x 3.0 in Design for Space-Constrained Applications
