ACCESSPRO

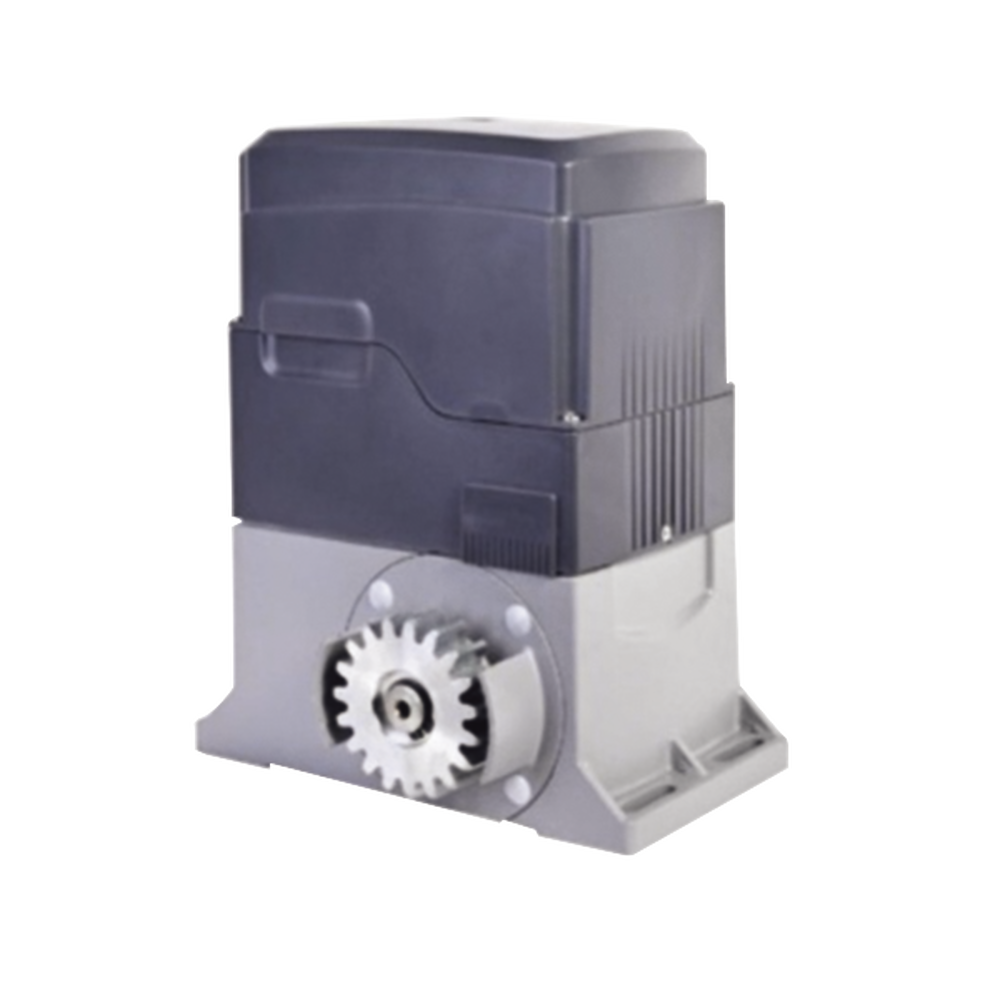

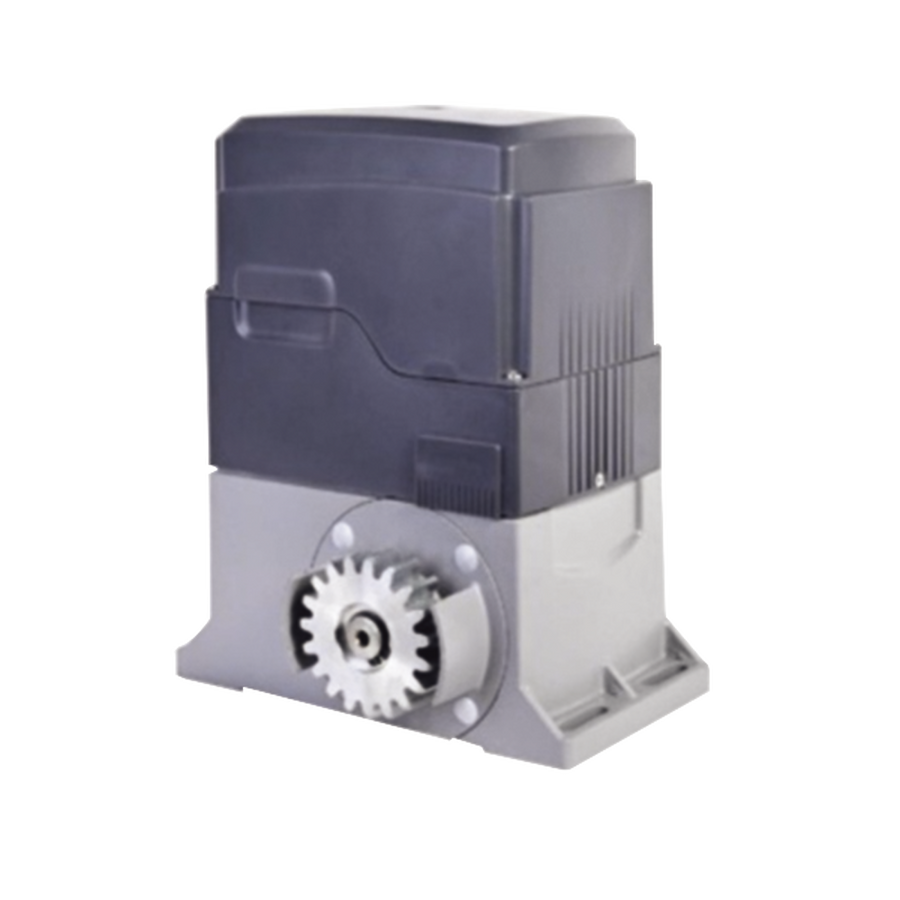

Accesspro XBS-IZ-1200 Sliding Gate Operator for 2645 lb (1200 Kg) Doors
Product identifier
SKU
XBS-IZ-1200
$467.09
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
Main Features:
- Maximum door weight 1200 kg.
- Controller included.
- Adjustable automatic close.
Electric Features:
- Power 110V
- Consumption power: 3A
- 370W
Features:
- The service life of the engine 3000 hrs
- Protection grade IP44
- Rack motor
- FCC Certification
XBSIZ-1200
- Sliding gate operator, special for houses and small private parking lots.
Features:
- Maximum torque 110 Nm
- Weight: 15Kgs.
- Operating temperature: -20 to 40 °C, include protection temp.
- Service life of the engine 3000 hrs
- Maximum cycles per hour: 30 (considering 2 minutes for complete cycle)
- Supports 5 wireless transmitters, includes 2 transmitter XBT23.
Requires:
- XBS-R01 Steel rack module M4 (1 meter long)
- The quantity depends on the door size
Optional Accessories:
- XB-WT-01 Inalambric wall button compatible with XB-REC2.
- XBS-SW-01 Rugged triple keypad.
- XB-REC2 Two-channel external wireless receiver.
- XB-T23 transmitter compatible with XB-REC2
- XBS-IR33 infrared photocell
Key Features
- Maximum Leaf Weight Capacity of 1200 lb for Heavy-Duty Applications
- Rack and Pinion Motor With 3000 Hours Service Life
- Operates From -4°F to 104°F With Thermal Protection
- IP44 Weatherproof Rating for Reliable Outdoor Performance
- Supports up to 5 Wireless Remote Controls, Includes 2 XBT23
- Includes Control Panel and Adjustable Automatic Closing Function
