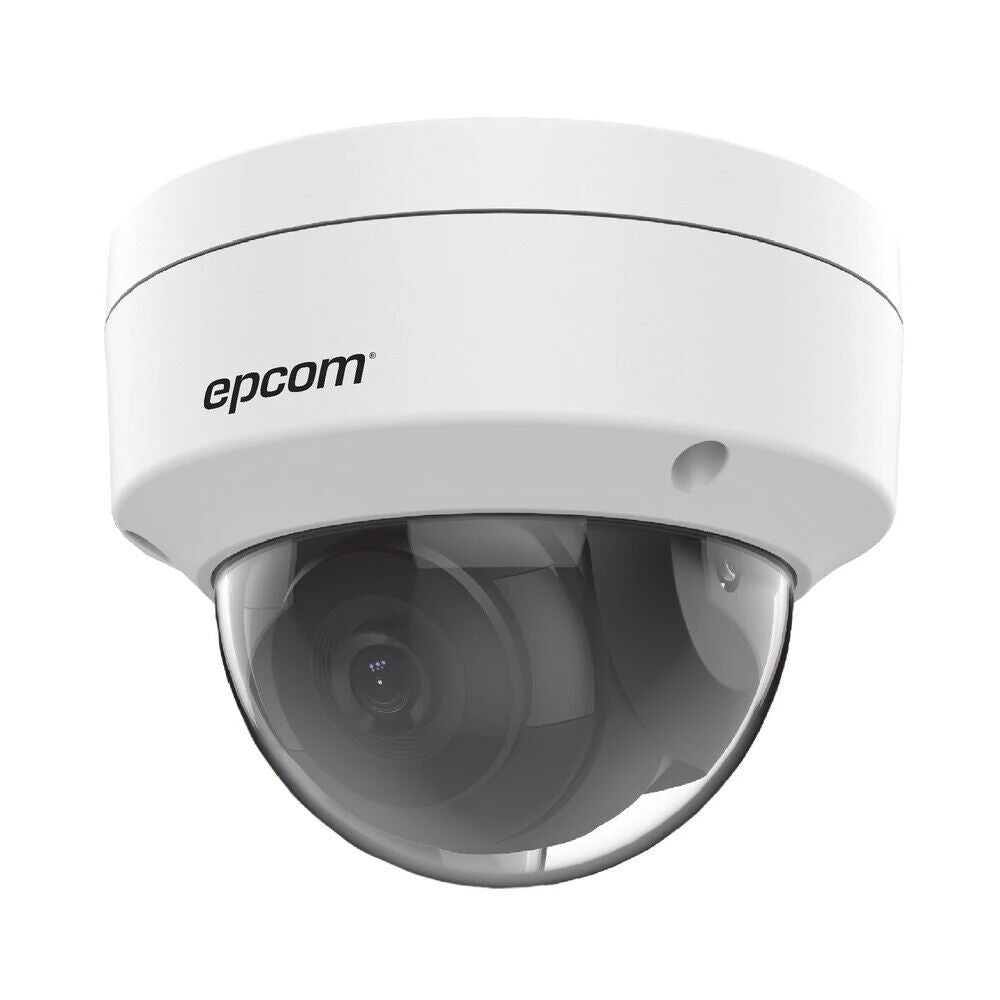

Epcom XD26S 6MP IP Dome Camera 2.8mm 30m IR IP67 PoE
Product identifier
SKU
XD26S
$122.36
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
IP Dome 6 Megapixel / 2.8 mm Lens / 30 mts IR EXIR / Outdoor IP67 / IK10 / WDR 120 dB/ PoE / Video Analytics (False Alarm Filter) / Ultra Low Lighting / Audio and Alarm Input and Output

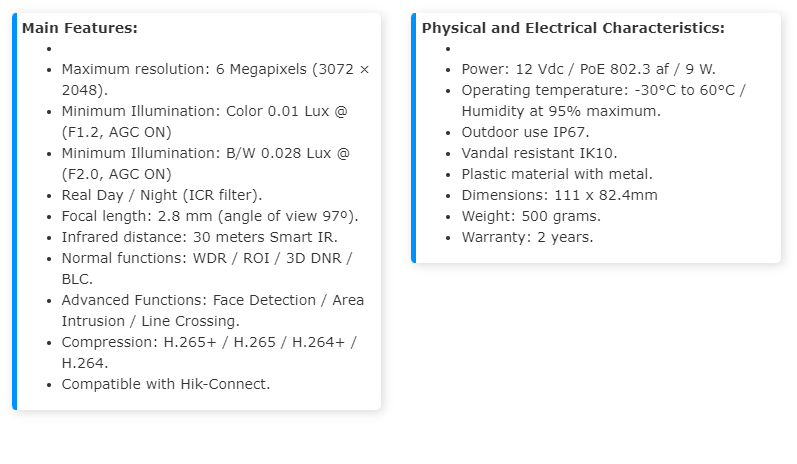

Main Features:
- Maximum resolution: 6 Megapixels (3072 × 2048).
- Minimum Illumination: Color 0.01 Lux (F1.2, AGC ON)
- Minimum Illumination: B/W 0.028 Lux (F2.0, AGC ON)
- Real Day / Night (ICR filter).
- Focal length: 2.8 mm (angle of view 97º).
- Infrared distance: 30 meters Smart IR.
- Normal functions: WDR / ROI / 3D DNR / BLC.
- Advanced Functions: Face Detection / Area Intrusion / Line Crossing.
- Compression: H.265+ / H.265 / H.264+ / H.264.
- Compatible with Hik-Connect.
Physical and Electrical Characteristics:
- Power: 12 Vdc / PoE 802.3 af / 9 W.
- Operating temperature: -30°C to 60°C / Humidity at 95% maximum.
- Outdoor use IP67.
- Vandal resistant IK10.
- Plastic material with metal.
- Dimensions: 111 x 82.4mm
- Weight: 500 grams.

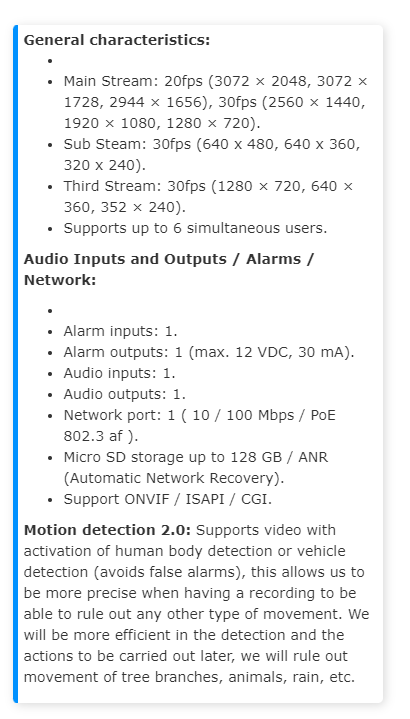

General characteristics:
- Main Stream: 20fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720).
- Sub Steam: 30fps (640 x 480, 640 x 360, 320 x 240).
- Third Stream: 30fps (1280 × 720, 640 × 360, 352 × 240).
- Supports up to 6 simultaneous users.
Audio Inputs and Outputs / Alarms / Network:
- Alarm inputs: 1.
- Alarm outputs: 1 (max. 12 VDC, 30 mA).
- Audio inputs: 1.
- Audio outputs: 1.
- Network port: 1 ( 10 / 100 Mbps / PoE 802.3 af ).
- Micro SD storage up to 128 GB / ANR (Automatic Network Recovery).
- Support ONVIF / ISAPI / CGI.
Motion detection 2.0: Supports video with activation of human body detection or vehicle detection (avoids false alarms), this allows us to be more precise when having a recording to be able to rule out any other type of movement. We will be more efficient in the detection and the actions to be carried out later, we will rule out movement of tree branches, animals, rain, etc.
