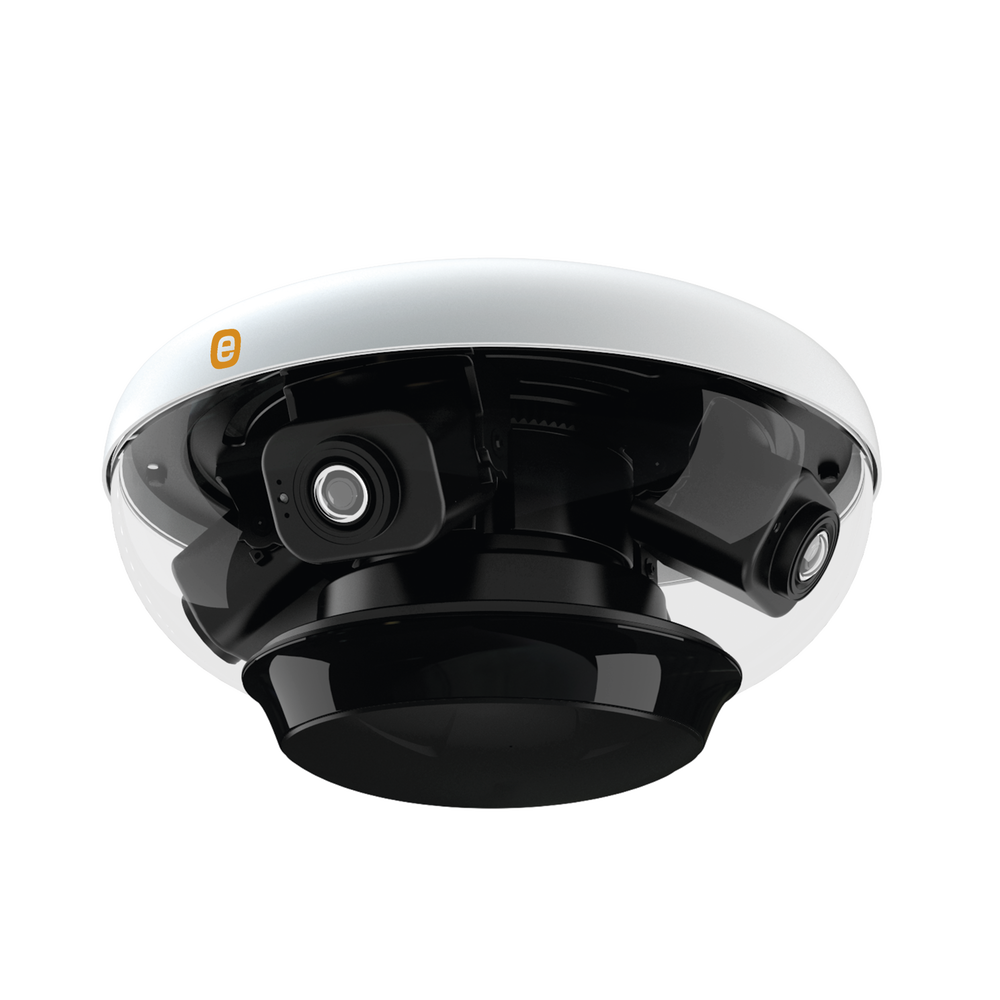

Epcom XD86-NN-GEN3 [ ePanoTech ] Panoramic IP Dome 8 MP / 360º / 4 Lens of 2MP / 82ft IR / IP66 / IK10 / Metal / PoE+

EPCOM

Epcom XD86-NN-GEN3 8MP 360° Panoramic IP Dome Camera PoE+ IR

Product identifier
SKU XD86-NN-GEN3
$900.50
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Main Features:
  • Maximum Resolution: 8MP (4096 x 1800)
  • Lenses: 2 MP each, 360º vision
  • Features: DWDR
  • IR distance: 82ft
  • Compression supported: H.265+ / H.265 / H.264+ / H.264
  • IP66
  • IK10
  • Supports cloud recording with EpcomCloud (Licenses).
  • For cloud recording it is necessary (ADAPTERCLOUD-08)
  • The camera's main stream is divided into four views.
  • It doesn't allow you to add each channel to an NVR.
  • The camera only occupies one channel on the NVR.
  • One IP address, one cable (PoE+), and one mount reduce the final installation cost.
  • Not NDAA
Physical and Electrical Features:
  • Power: 24VAC / 24VDC / PoE+.
  • Electrical Consumption: < 25W.
  • Operating temperature: -30 ~ 55 °C (-22 ~ 131 °F).
  • Dimensions: 10.7" X 7" (273mm X 180mm)
  • Weight: Approx. 7.18Lbs (3.26Kg)
General Features:
  • The camera allows a 360º panoramic view due to the 4 lenses of 2MP each.
  • RJ45 interface.
  • Storage: Micro SD up to 256 GB.
  • Audio in: 1 CH audio
  • Audio out: 1 CH audio
  • Supports ONVIF.
  • Pendant Mount included

Software and management tools click here.

Not compatible with Hik-Connect/IVMS4200

Key Features

  • Motorized Varifocal Lens With 4x Optical Zoom Capability
  • True 4K 8 Megapixel Resolution for Exceptional Image Clarity
  • IP67 Weatherproof Rating for Harsh Outdoor Environments
  • 98 ft Infrared Night Vision With Smart IR Technology
  • 360 Degree Panoramic Coverage With Motorized Positioning
  • H.265+ Compression Reduces Bandwidth and Storage Requirements
