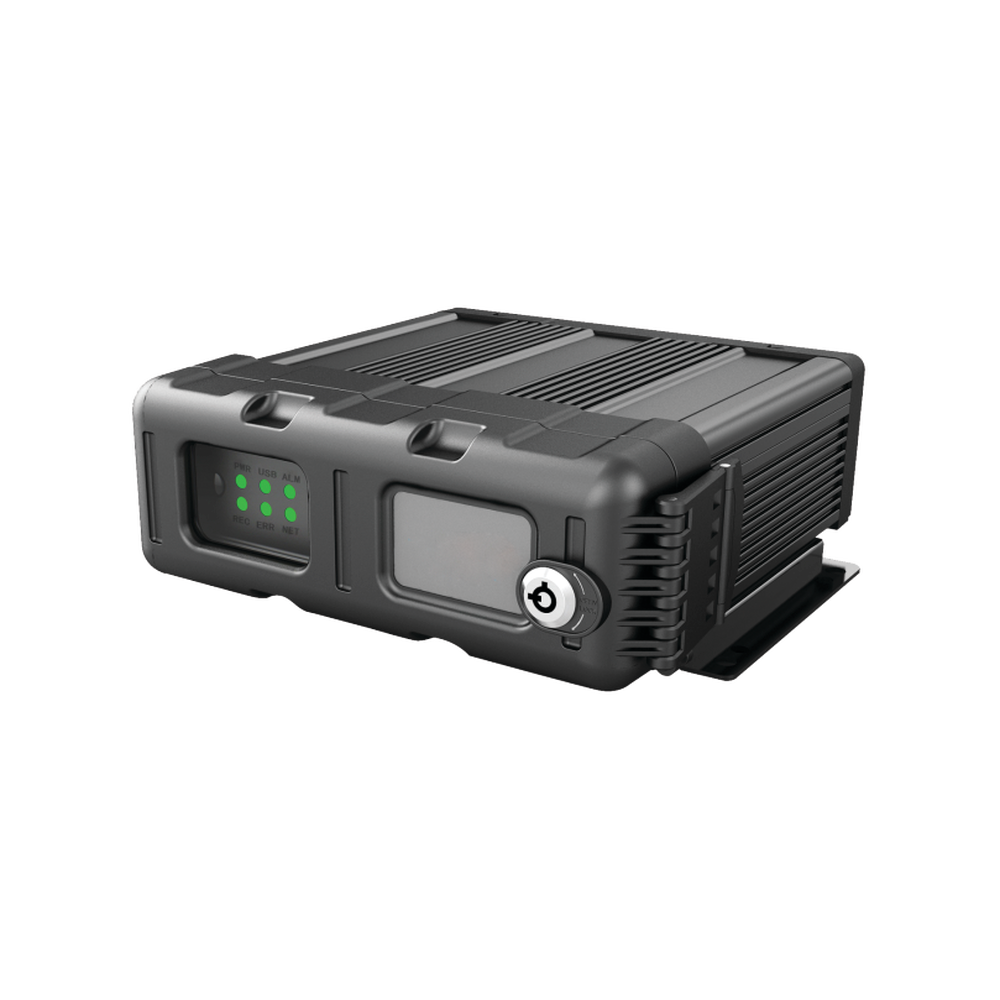

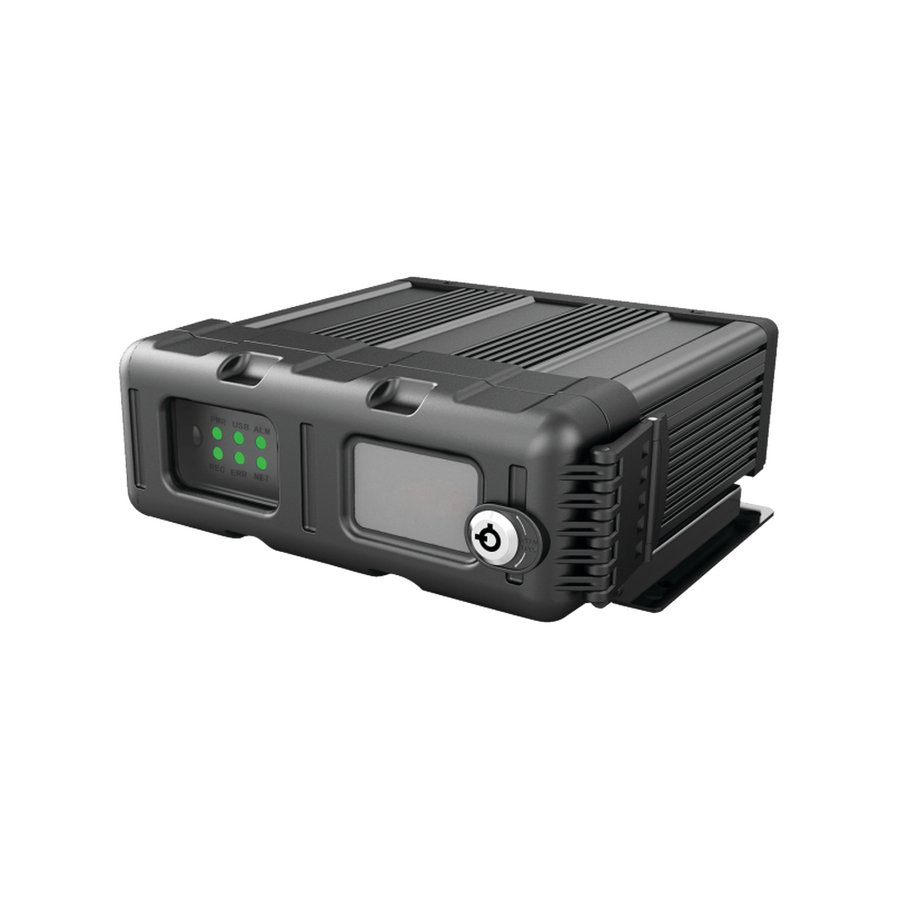

Epcom XMR401AHD Hybrid Mobile, High Resolution (4ch AHD/Analog+ 1ch 1MP)

The Hybrid Mobile DVR for a vehicle is designed to record and broadcast video in vehicles that require to be watched all the time in operation or even when they are on standby. Video transmission has to be dependable on a professional platform specially designed for the application, and it can be viewed by technology Wi-Fi, 3G, or 4G LTE.
The principal applications for this equipment go from:

• Public and school transportation
• Trucks
• Taxi Fleets
• Delivery Fleets
• Police vehicles
• Fire trucks
• Ambulances
• Private vehicles

Features:

• Technology: Hybrid ( AHD / IP )
• OS: Linux 3.0.8
• Control mode: Easy check, CP4, mouse

Compression and Resource

• Video: H.264
• Audio: ADPCM, G.711A, G.711U
• Total Resource:
  • Analog: 1MP(1280X720), WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704X480), HD1(704X240), CIF(352X240)
  • IP: 720P

Interface Input / Output

• Video Input:
  • 4 ch AHD
  • 1 ch IP
• Video Output
  • 1 channel ( module recommended TRANSFERCABLE )
• Audio Input: 5 channel ( 4ch AHD + 1ch 1MP )
• Audio Output: 1 channel}
• Interface USB: 1 USB 2.0
• Network Ethernet: NA ( module recommended XMRLAN )
• Wifi: Optional
• 3G / 4G: Optional
• GPS: Optional
• Interface RS232
• Alarm Sensor: Opcional

Storage:

• Two memory SD

Physical and Electrical Features

• Power Input: 8 ~ 36 Vdc, ignition signal
• Operating temperature: -40°F ~ 158°F (-10°C ~ 70°C)
• Dimensions: 6.58" x 5.7" x 2.1" (167.3 x 146.3 x 54.1 mm)

Key Features

• 4 AHD/Analog Channels Up to 1 Megapixel Resolution
• 1 IP Channel HD Support Up to 720P Quality
• SD Card Storage Capacity Up to 128 GB Class 10
• Universal 8-36V DC Vehicle Power Input Range
• Operating Temperature Range -14°F to 158°F
• Ceiba2 Platform Compatible for Central Management
