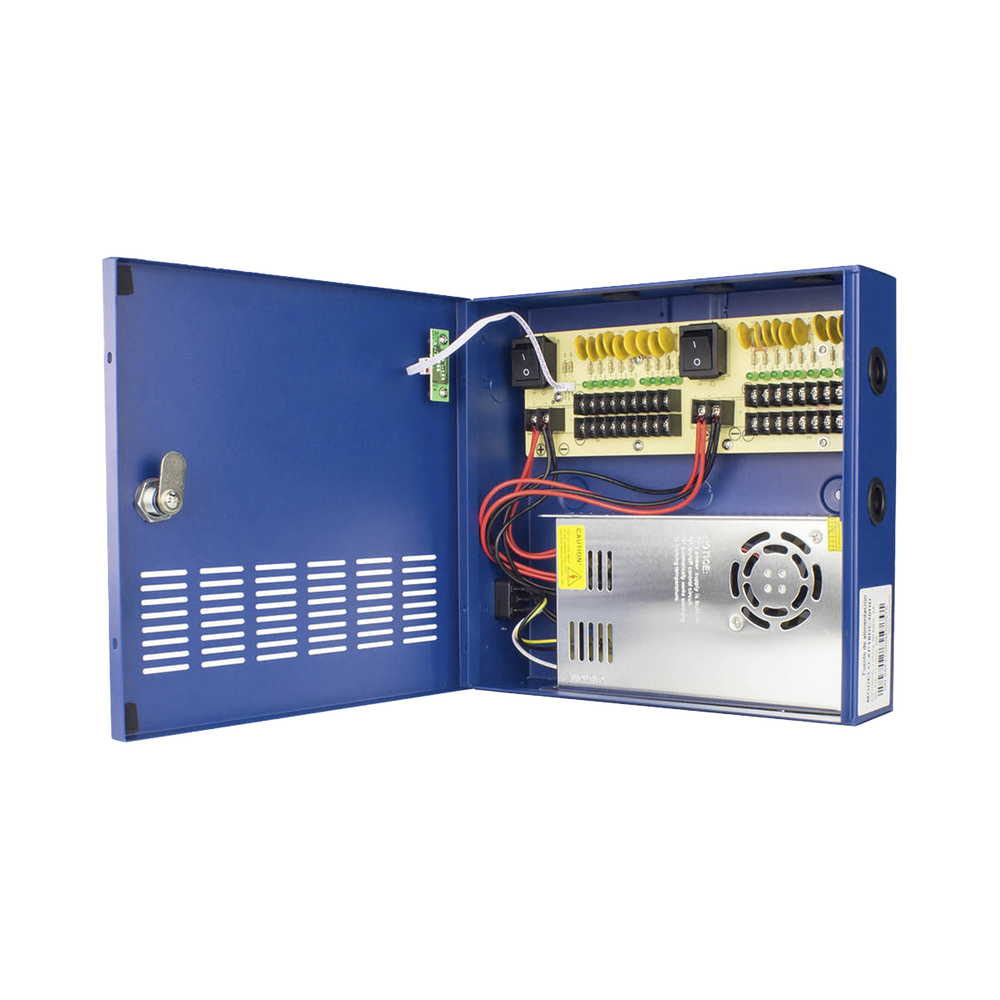

Epcom XP18DC30HD 30A 18-Channel Power Supply 15VDC Analog HD Camera

P18DC20HD is the only POWER SUPPLY in the industry with variable output voltage up to 15VDC ensures voltage sending in long distances.

Compatible with full line of analog and EPCOM TURBO HD cameras.

Power output filtered to prevent noise and protected against overvoltage.

HEAVY-DUTY.




• Easy installation
• Short circuit and over-voltage protection.
• Conventionally cooling system air.
• External LED indicators for each channel output.
• Built against electromagnetic interference filter EMI.

Protection:
• Overcurrent protection: 105 ~ 150% (rated output voltage)
• Overvoltage Protection: 1.5 times of the rated voltage
• Short circuit protection: short the output voltage, with automatic reset.

Physical and Electrical Specifications:

• Approved by: IEC / EN / CSA, 60950 GB4943
• Input voltage: 100 o 240 Vac
• Output voltage: 11.5 ~ 15 VDC. (adjustable)
• Output Current: 30 A

• Output Current by channel : 2.5 A
  • Board distribution: 1 for connection of 18 cameras.
  • Dimensions: 10.43 x 10.03 x 3.14"
  • Operating temperature: -14 ~ 122 °F
  • Weight: 5.5 lb

Key Features

• Variable Output up to 15 VDC for Long Distance Camera Installations
• Compatible With Analog and Turbo HD Camera Systems
• Over-Voltage and Electrical Noise Protection on All Channels
• Fanless Convection Cooling System for Silent Operation
• Individual LED Indicators for Each of the 18 Output Channels
• Built-In EMI Filter Reduces Electromagnetic Interference
