Epcom XP42-GEN3 2MP IP Pinhole Camera 2.8mm PoE H.265+

PRODUCT TITLE

Epcom XP42-GEN3 2MP IP Pinhole Camera 2.8mm PoE H.265+

PRODUCT OVERVIEW

Normal functions: WDR / ROI / 3D DNR / BLC / Area intrusion / Line crossing.

PRODUCT TYPE / CATEGORY

• Networking
• Security Cameras

KEY FEATURES

• 2.8 mm Wide Angle Lens for Broad Coverage Area
• Ultra Compact and Discreet Design for Covert Installation
• IP Network Connectivity for Remote Monitoring Access
• Ideal for Office, Retail, and Residential Applications
• Low Profile Housing Blends Seamlessly Into Any Environment

TECHNICAL SPECIFICATIONS

• Brand: EPCOM
• Model: XP42-GEN3
• Product Type: Security Cameras
• Maximum resolution: 2 Megapixel (1920 x 1080).
• Minimum illumination: 0.05 lux @F2.2
• Focal length: Fixed lens: 2.8 mm (View angle 104°).
• Infrared distance: N/A.
• Normal functions: WDR / ROI / 3D DNR / BLC / Area intrusion / Line crossing.
• Advanced Features: Face Detection.
• Compression: H.265+ / H.265 / H.264+ / H.264.
• Compatible with the E-Connect App platform
• Alarm inputs: 8CH.
• Alarm outputs: 4CH.
• Audio inputs: 1CH.
• Audio outputs: 1CH.
• Network port: 1 RJ45 port (10 / 100 Mbps).
• Micro SD storage up to 256 GB
• Supports ONVIF
• Power: 12 vdc / PoE / <5.5 W. ( Power supply not included )
• Operating temperature: -30°C to 60°C (-22°F - 140°F)
• Indoor use.
• Dimensions: Camera: 31.6 x 30.4 x 30.4 mm, Server: 108.5 x 87.8 x 28.0
• Weight: Camera: 52.4g, Server: 271.4g

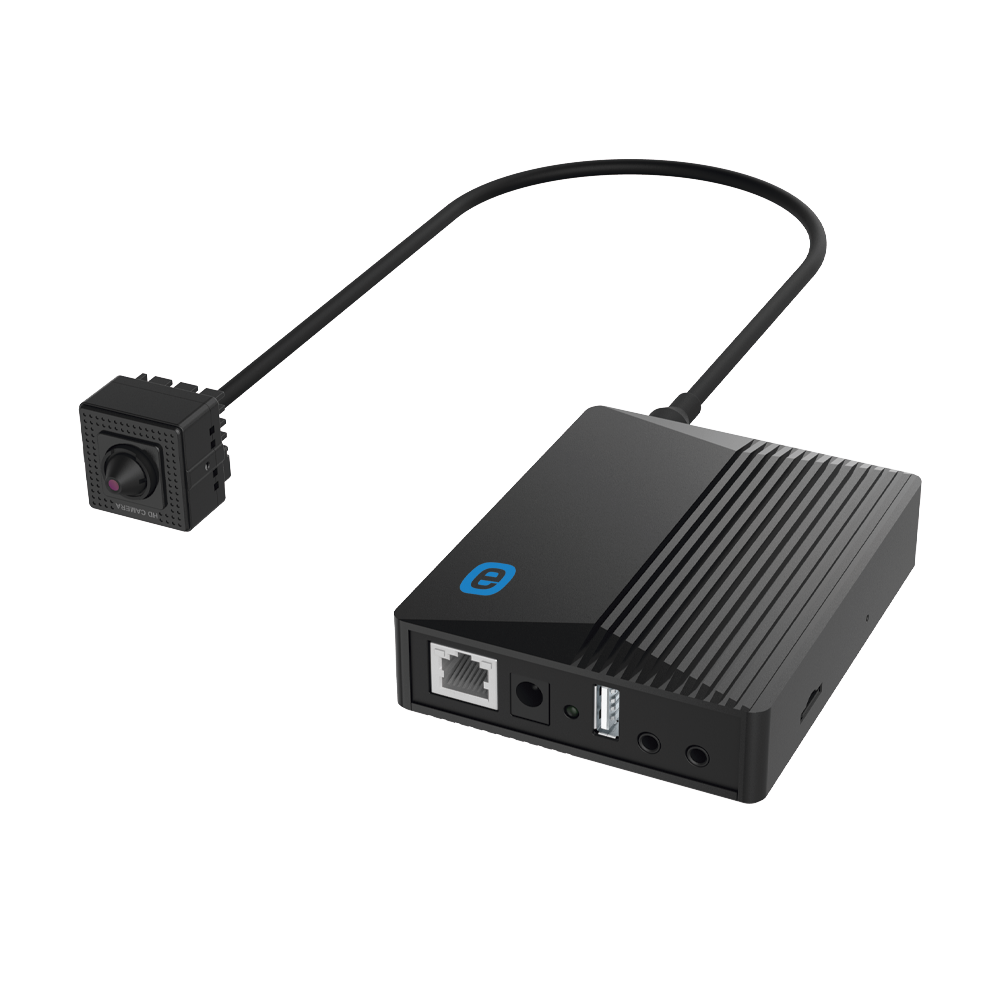

• The pinhole camera is TVI and is connected to the decoder via a transceiver or balun.
• The decoder allows you to convert the TVI camera to IP and add it to an NVR.
• The TVI camera must be powered by 12v.
• The decoder is powered by 12 VDC, 24 VAC or POE.
• The decoder has a 12v power output to connect to the pinhole camera.
• 2.8 mm Wide Angle Lens for Broad Coverage Area
• Ultra Compact and Discreet Design for Covert Installation
• IP Network Connectivity for Remote Monitoring Access
• Ideal for Office, Retail, and Residential Applications

INTENDED USE / APPLICATIONS

• Video surveillance and security monitoring
• Commercial, institutional, or industrial installations
• Integration with compatible network and recording systems
