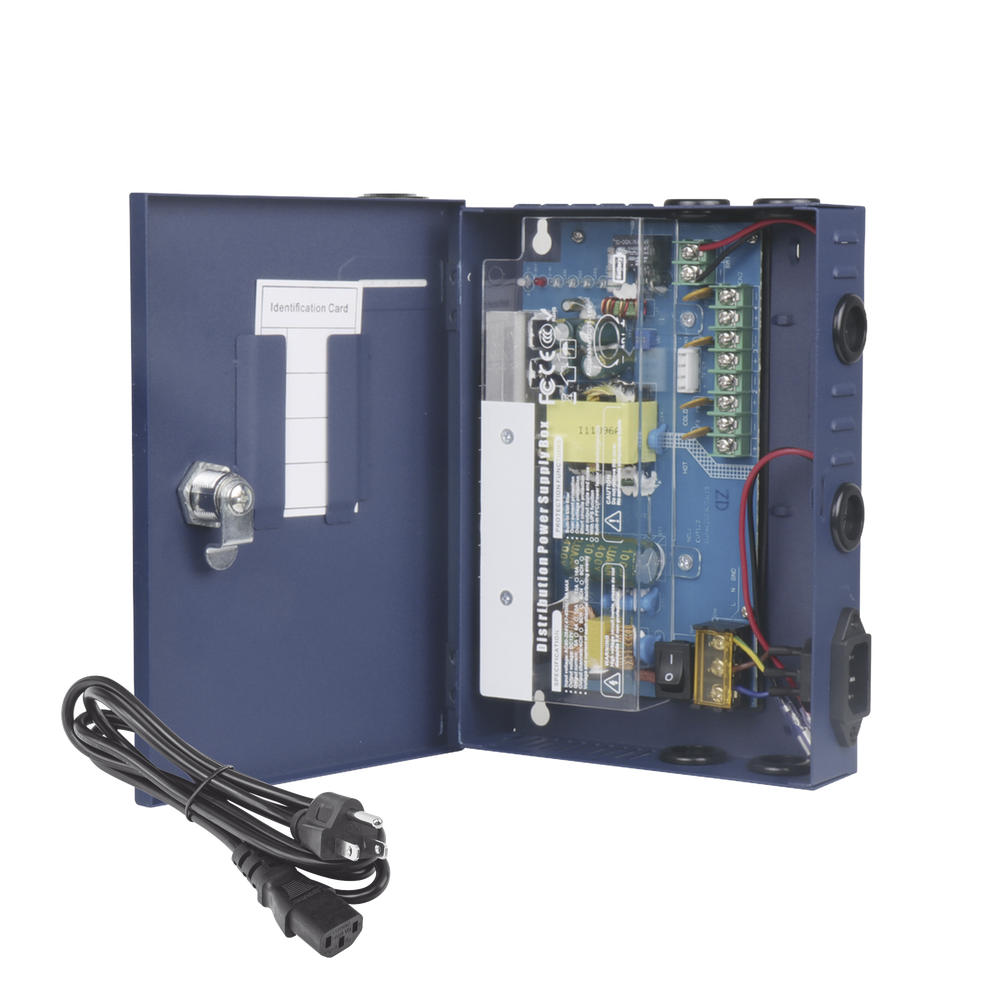

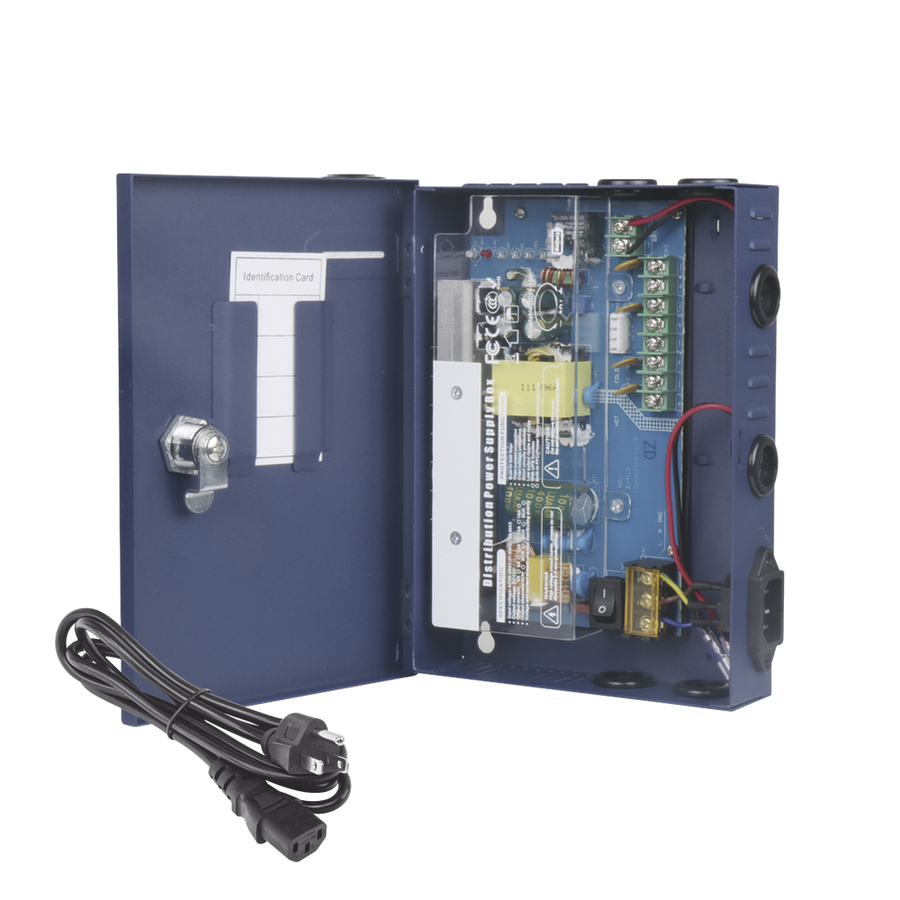

Epcom XP4DC6HD 4-Channel 15VDC 6A Power Supply 96-264VAC
Product identifier
SKU
XP4DC6HD
$64.95
Available to order
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
HIGH-PERFORMANCE Power Supply 11-15 VDC @ 6A, 4 outputs channels, with an input voltage of 85-264 VAC
Features:
- Suitable for the centralized power system, such as CCTV, alarm system, access control.
- 4 outputs channels
- Universal AC input / full range: 96-264 VAC
- Individual fuse for each output channel
- Built-in EMI float, 100% full charge
- PFC function
- Output voltage: 11-15 Vdc
- Output current: 6 A
Diagram:
- Individual LEDs for each DC output.
- Identification card: brand for each channel device.
- Individual fuse (tube / PTC fuse)
- DC terminals: 12VDC, the current must be verified on the product labels.
- Output terminals
- AC terminal: 96-264 VAC, 47-63 Hz
- Holes for threading cables
- AC Jack: 96-264VAC, 47-63Hz
- Hanging holes
Key Features
- Adjustable Voltage Output From 11 to 15 VDC
- Universal AC Input 96-264 VAC, 47-63 Hz Operation
- 4 Independent Channels With Individual Fuse Protection
- Built-in EMI Filter and PFC Function for Clean Power
- Individual LED Indicators for Each DC Output Channel
- Modular Design for Easy Installation and Maintenance
