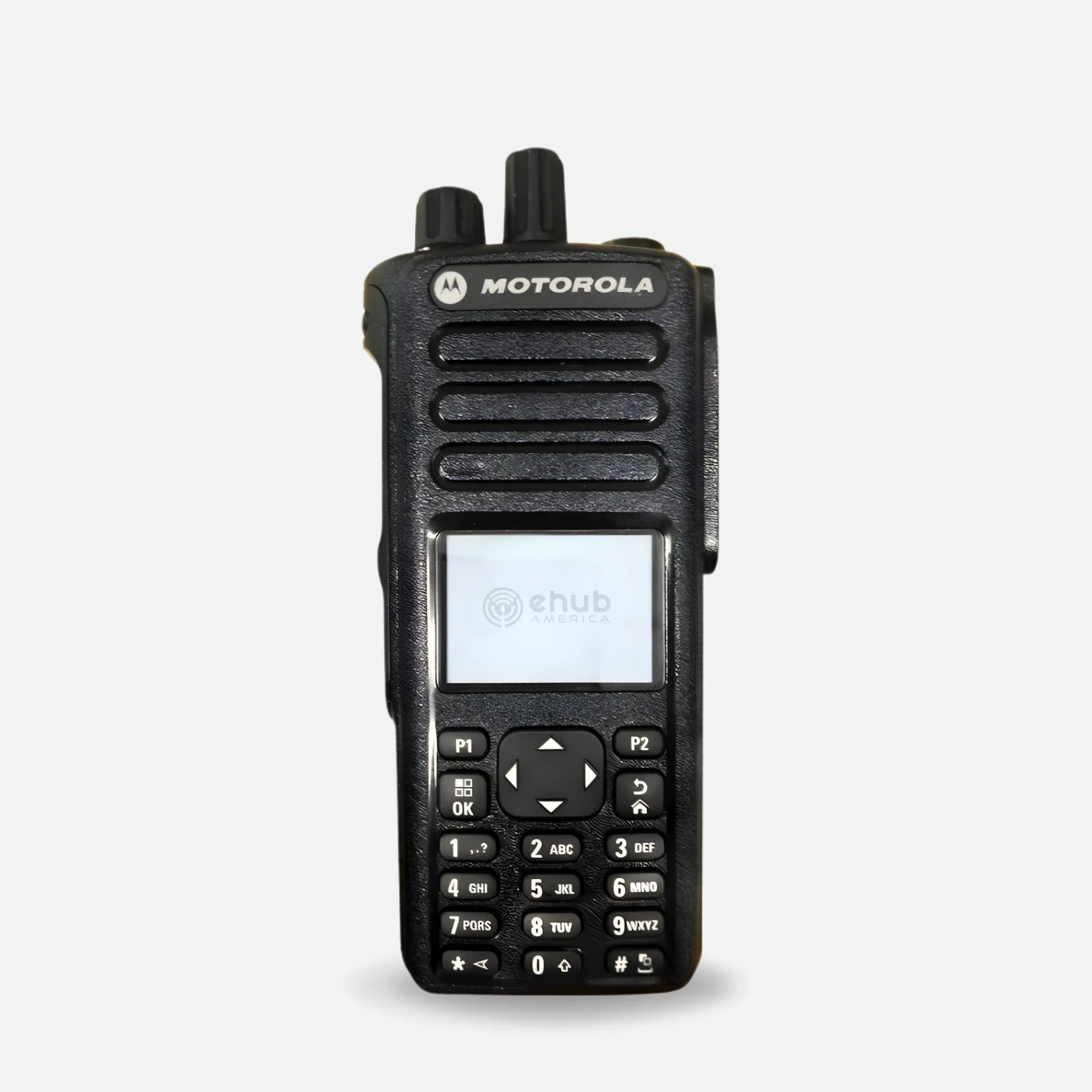

Motorola XPR7550E VHF OB Mototrbo XPR7550e VHF 136-174MHz Color Display Digital Portable OB

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Motorola MOTOTRBO XPR7550e VHF 136–174 MHz 5W Digital Portable Radio with Color Display

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Motorola MOTOTRBO XPR7550e VHF portable radio supporting analog and DMR digital operation. Features full keypad with color display, 1000 channels, integrated Wi-Fi, Bluetooth 4.0, GPS, and IP68 environmental protection for professional voice and data communications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Two-Way Radios
VHF Portable Radios

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• VHF frequency band: 136–174 MHz
• 5W high power / 1W low power output
• 1000 channel capacity
• Analog and DMR digital capable (ETSI TS 102 361-1, -2, -3)
• Full keypad (FKP) with color display
• Integrated Wi-Fi (802.11b/g/n)
• Bluetooth 4.0 (audio and data)
• Integrated GPS (GNSS)
• Over-the-air programming
• Over-the-air software updates
• Intelligent Audio and IMPRES™ audio
• Acoustic Feedback Suppressor
• User-selectable audio profiles
• Transmit Interrupt
• Integrated accelerometer for optional Man Down
• Lone Worker
• Basic and Enhanced Privacy
• Text messaging and Work Order Ticketing
• Indoor and outdoor location tracking
• IP68 dust and water protection (2 meters, 2 hours)
• Rugged to MIL-STD-810
• Hazardous location certification (when properly equipped with UL-approved battery)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
GENERAL
• Frequency Range: 136–174 MHz
• Channel Spacing: 12.5 / 25 kHz
• Channel Capacity: 1000
• Power Supply: 7.5V (nominal)
• Frequency Stability: ±0.5 ppm

RF OUTPUT
• High Power: 5W
• Low Power: 1W

RECEIVER
• Analog Sensitivity (12 dB SINAD): 0.16 µV
• Digital Sensitivity (5% BER): 0.14 µV
• Adjacent Channel Selectivity: 60 dB (12.5 kHz), 70 dB (25 kHz)
• Spurious Rejection: 70 dB

TRANSMITTER
• 4FSK Digital Modulation:
– 7K60F1D (Data)
– 7K60F1E (Voice)
– 7K60F1W (Voice & Data)
• Conducted/Radiated Emissions: -36 dBm (<1 GHz), -30 dBm (>1 GHz)
• Adjacent Channel Power: 60 dB (12.5 kHz), 70 dB (25 kHz)

AUDIO
• Digital Vocoder: AMBE+2™
• Rated Audio Output: 0.5W @ 1% distortion
• Maximum Audio Output: 2.5W
• Audio Distortion at Rated Audio: 3%
• Hum and Noise: -40 dB (12.5 kHz), -45 dB (25 kHz)

BLUETOOTH
• Version: 4.0
• Range: Class 2 (up to 10 m / 33 ft)
• Supported Profiles: HSP, SPP
• Simultaneous Connections: 1 audio accessory and 1 data device

GNSS
• Constellation Support: GPS
• Time to First Fix (Cold Start): <60 seconds
• Time to First Fix (Hot Start): <10 seconds
• Horizontal Accuracy: <5 m

WI-FI
• Standards Supported: IEEE 802.11b/g/n
• Security Protocols: WPA, WPA2, WEP
• Maximum SSIDs: 128

ENVIRONMENTAL
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Dust and Water Intrusion: IEC 60529 IP68 (2 meters for 2 hours)
• Electrostatic Discharge: IEC 61000-4-2 Level 4
• Thermal Shock / Humidity: Per MIL-STD
• Military Standards: MIL-STD-810 C/D/E/F/G

PHYSICAL
• Dimensions (H x W x D) with Slim Battery: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
• Weight with Slim Battery: 315 g (11 oz)
• Dimensions (H x W x D) with High Capacity Battery: 130 x 55 x 41 mm (5.1 x 2.2 x 1.6 in)
• Weight with High Capacity Battery: 347 g (12 oz)

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
