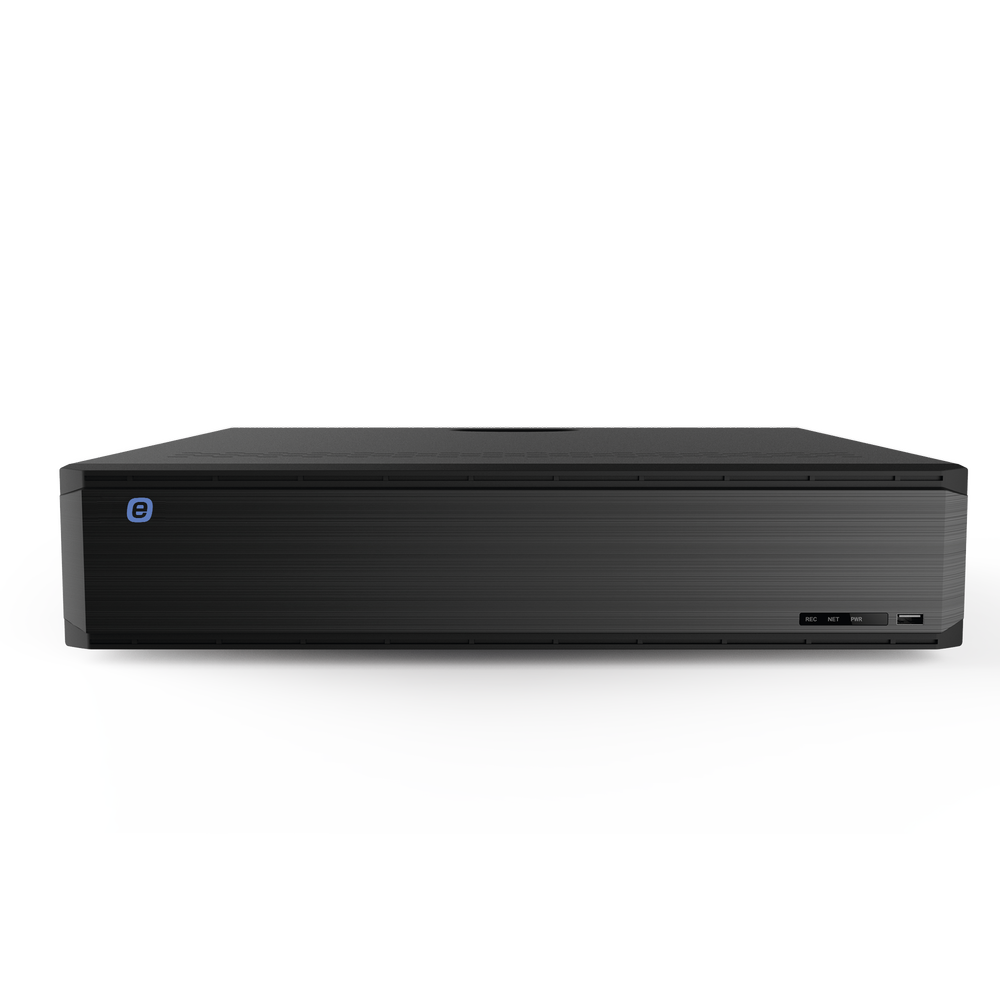

Epcom XR64/8-GEN3 [ Face Recognition ] NVR 16MP / 64 IP Channels / Supports 8 HDD / 8K video output / H.265+ / Cloud Video Recording

EPCOM

Epcom XR64/8-GEN3 64-Channel 16MP NVR H.265+ 8 HDD Bays

Product identifier
SKU XR64/8-GEN3
$657.88
Available to order

Lead time confirmed after order.

Request a quote Need help confirming fit? Talk to a specialist →
  • Product availability confirmed before fulfillment.
  • Support in English, Spanish and Portuguese.
  • 30-day returns and RMA support.

Product details

Main Features:
  • Max.resolution: 16 MP
  • Support 64 Channels IP
  • Support 8 SATA up to 10TB per HDD
  • Support USB 2.0 x 2 and USB 3.0 x 1
  • Playback : 16CH simultaneous playback
  • Support Compresion: H.265 + / H.265 / H.264
  • Support P2P
  • Multi-user online simultaneously
  • 8K ultra high definition output
  • Supports cloud recording with EpcomCloud (Licenses) (Starting 2023)
  • For cloud recording it is necessary (ADAPTERCLOUD-08)
  • Support facial recognition.
  • Supports up to 16 channels with face recognition using cameras that support face detection (XE52C-GEN3 / XB54CA-GEN3 / XB82T-GEN3 / XPTIE254-GEN3).
  • Supports up to 4 channels with face recognition using cameras that do not support face detection.
  • NDAA certified
Physical and Electrical Features:
  • Power supply: AC 100 to 240 (included)
  • Power consumption: ≤ 50W ( without HDD )
  • Dimensions (W × D × H): 17.52" x 17.16" x 3.54" (445 × 436 × 90 mm)
General Features:
  • Interface: RJ45, 10/100/1000 Mbps x 2
  • Incoming / Outgoing Bandwith: 640 Mbps / 640 Mbps
  • Rack mounting included

Software and management tools click here.

Compatible with the app e-Connect App available for iOS and Android.

Not compatible with Hik-Connect/IVMS4200

Key Features

  • Supports up to 64 IP Cameras for Large-Scale Surveillance Systems
  • 8 HDD Bays With Maximum 128 TB Total Storage Capacity
  • 4 Independent HDMI Outputs for Simultaneous Multi-Screen Monitoring
  • 4K Ultra HD Resolution at 30 fps for Crystal Clear Video Quality
  • H.265+ Compression Technology Reduces Storage Requirements by 80%
  • 256 Mbps Incoming Bandwidth for High-Density Camera Networks
