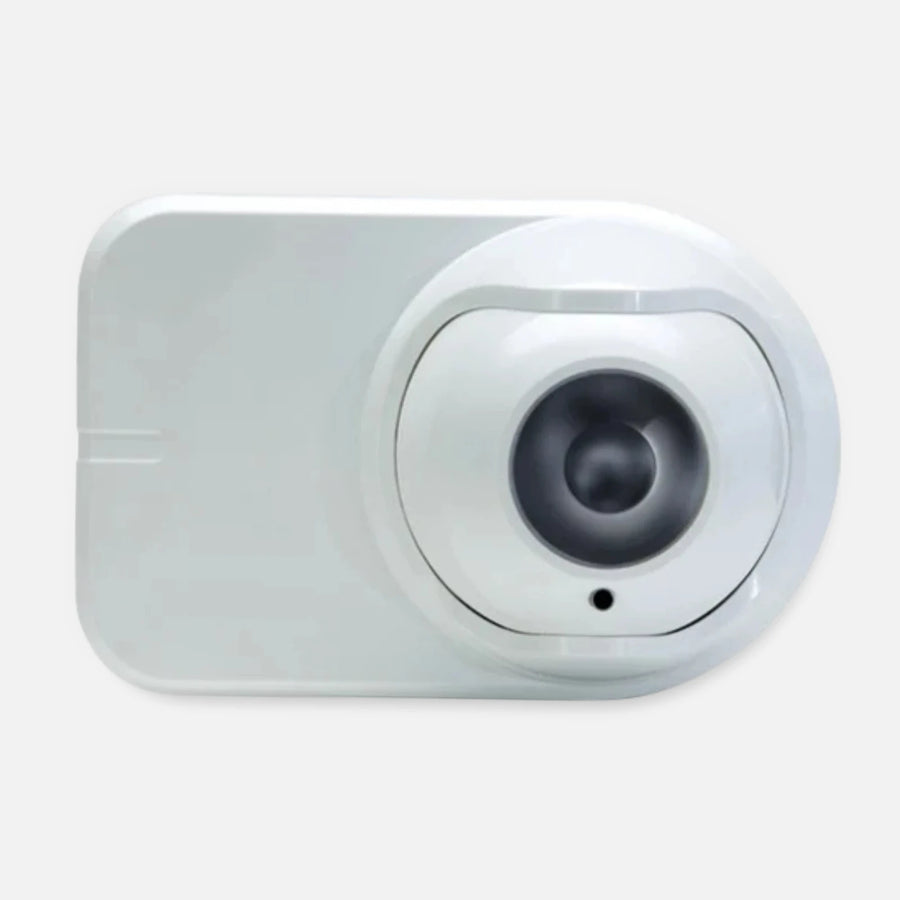

Xtralis OSI-10 OSID Imager, 7° Field of View, 24 VDC

Part number / SKU
OSI-10
  • Smoke imaging detector imager
  • Projected beam smoke imaging
  • 20 to 30 VDC, 24 VDC nominal

Works with: OSE-SP-01 battery emitter, OSE-SPW wired emitter, OSID-EHI IP66 imager housing, OSI-LS light shield, OSID-WG wire guard, OSID-INST installation kit and 3 more models Confirmed by the manufacturer


$845.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing
  • Help in English, Spanish and Portuguese

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

The Xtralis OSI-10 is the narrow field of view imager in the OSID open-area smoke imaging detection system. It watches a single OSID emitter across a long open space and signals fire and trouble through dry relay contacts to a fire alarm control panel.

Its 10° lens gives a usable field of view of 7° horizontal by 4° vertical, with a detection range of 30 to 150 m (98 to 492 ft) using an OSE-SP-01 or OSE-SPW emitter. It runs on 20 to 30 VDC (24 VDC nominal) at a typical 8 mA, and its fire and trouble relays are rated 2 A at 30 VDC. The optics enclosure is IP66 and the imager operates from -10°C to 55°C (14°F to 131°F).

Alarm thresholds are selectable at 20%, 35% or 50% obscuration, with a 65% industrial mode that is outside approved sensitivity. Xtralis states that the OSI-10 is not suited to high power emitters. Accessories include the OSID-EHI IP66 imager housing, OSI-LS light shield, OSID-WG wire guard and OSP-002 laser alignment tool.

  • Best for: long, narrow open areas covered by one OSID beam path of up to 150 m.
  • System fit: Xtralis OSID OSE-SP-01 and OSE-SPW emitters; fire alarm panel inputs via dry relay contacts.
  • Important to know: use standard power emitters only; installation and commissioning must be done by a qualified fire alarm technician per local code.

Why teams choose it

Built for fire alarm systems

  • Long range

    30 to 150 m (98 to 492 ft) with a standard power emitter.

  • Low current

    typical 8 mA at 24 VDC.

  • Panel interface

    fire and trouble relays rated 2 A at 30 VDC.

  • Selectable sensitivity

    alarm thresholds at 20%, 35% or 50%.

Specifications

Technical specifications

Ask about a spec
Product identifiers
SKUOSI-10
General
Brand Xtralis
Series OSID
Model OSI-10
Device Type Smoke imaging detector imager
Device Type Detail Open-area
Detection Type Projected beam smoke imaging
Field of View 10° lens; 7° H x 4° V usable
Coverage 30 to 150 m (98 to 492 ft) with OSE-SP-01 or OSE-SPW
Emitters 1 maximum; not suited to high power emitters
Alarm Thresholds Low 20% (0.97 dB); Medium 35% (1.87 dB); High 50% (3.01 dB); Industrial 65% (4.56 dB, unapproved)
Alignment Adjustment ±60° horizontal, ±15° vertical
Electrical
Operating Voltage 20 to 30 VDC, 24 VDC nominal
Current Draw 8 mA typical at 24 VDC with one emitter
Relays Fire alarm and trouble, NO-C-NC dry contacts, 2 A at 30 VDC
Physical
Dimensions 208 x 136 x 96 mm (8.2 x 5.4 x 3.8 in)
Weight 610 g
Environmental
IP Rating IP66 (optics enclosure)
Operating Temperature -10°C to 55°C (14°F to 131°F)
Humidity 10 to 95% RH, non-condensing
