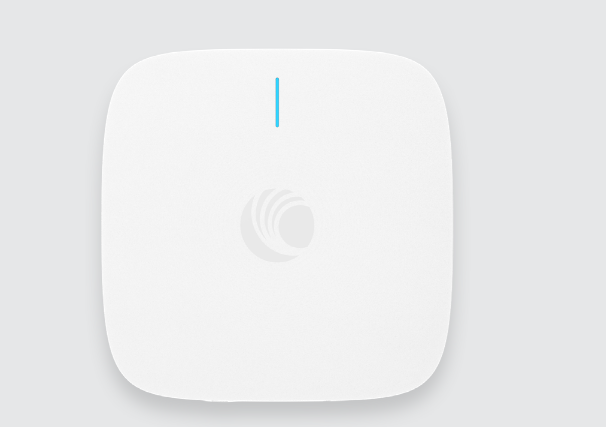

Cambium Networks XV2-21X0B00-CA XV2-21X Wi-Fi 6 Dual Radio Indoor Access Point

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Cambium Networks XV2-21X0A00-CA XV2-21X Wi-Fi 6 Dual-Radio Indoor Access Point 2x2 GbE

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Cambium Networks XV2-21X dual-radio indoor Wi-Fi 6 access point with 2x2 radios, 1 GbE connectivity, 802.3af PoE power, and support for cnMaestro and Swift management. Canadian regulatory version.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Wireless Access Points

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Dual-radio Wi-Fi 6 indoor access point
• 5 GHz 802.11a/n/ac Wave 2/ax 2x2:2 radio
• 2.4 GHz 802.11b/g/n/ax 2x2:2 radio
• 1 x IEEE 10/100/1000 Mbps Ethernet interface
• Maximum PHY rate of 2402 Mbps on 5 GHz and 573.5 Mbps on 2.4 GHz
• Supports WPA3-SAE, WPA3-Enterprise, WPA2, WPA2 Enterprise, WEP, and Open security
• Supports controller-less standalone operation and cnMaestro cloud/VM management
• Supports cnMaestro Cloud, cnMaestro X, cnMaestro on-premises, and Swift app-based management
• Supports 16 WLAN profiles per radio, 16 SSIDs, and up to 128 clients per radio
• Supports IPv4 and IPv6
• Supports 802.11r fast roaming, mesh operation, band steering, and load balancing
• Multi-color status LEDs with dimming and on/off control
• Wall, ceiling, T-bar, and ceiling tile mounting options
• Limited hardware warranty for a period of 5 years after end of sale

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Manufacturer: Cambium Networks
• Product Family: XV2-21X
• Part Number: XV2-21X0A00-CA
• Regulatory Model: XV2-21X
• Regional Version: CA
• Wireless Standard: IEEE 802.11a/b/g/n/ac Wave 2/ax
• 5 GHz Radio: 2x2:2
• 2.4 GHz Radio: 2x2:2
• Maximum 5 GHz PHY Rate: 2402 Mbps
• Maximum 2.4 GHz PHY Rate: 573.5 Mbps
• Ethernet Port: 1 x IEEE 10/100/1000 Mbps
• 5 GHz Antenna Gain: 6 dBi
• 2.4 GHz Antenna Gain: 5 dBi
• Maximum 5 GHz EIRP: 33 dBm
• Maximum 2.4 GHz EIRP: 32 dBm
• Power: 11W typical, 12.95W maximum
• Power Input: IEEE 802.3af powered device
• Dimensions Without Bracket: 155 x 155 x 37 mm / 6.1 x 6.1 x 1.46 in
• Dimensions With Bracket: 155 x 155 x 46 mm / 6.1 x 6.1 x 1.81 in
• Weight: 475 g / 1.05 lb
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage Temperature: -40°C to 70°C / -40°F to 158°F
• Humidity: 95% RH non-condensing
• Estimated MTBF: 1,980,244 hours at 50°C ambient
• Mounting: Wall, ceiling, T-bar with included locking bracket, ceiling tile plate
• Compliance: Passpoint 3.0, FCC, IC, ETSI, CE, EN 60601-1-2, IEC60950, UL2043, EN 61373
• WLAN Capacity: 16 WLAN profiles per radio, 128 clients per radio, 16 SSIDs
• IP Support: IPv4, IPv6
• Channel Widths: 20/40/80/160 MHz

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed as an indoor Wi-Fi 6 access point for wireless network deployments. Supports wall, ceiling, ceiling tile, junction box, and compatible T-bar installation methods.
