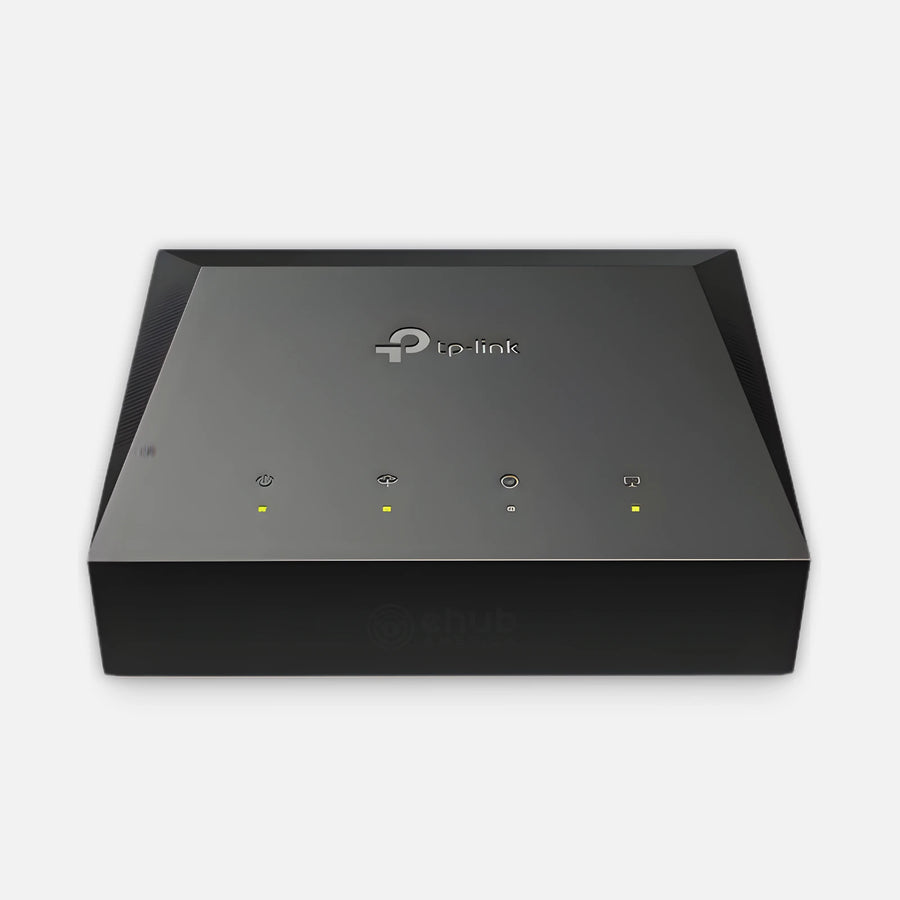

Tp-Link XZ000-G3 GPON Terminal 1-Full Gigabit Port Ideal for Fiber-to-the-Home

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
TP-Link XZ000-G3 GPON Terminal 1-Port Gigabit ONT

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
TP-Link XZ000-G3 is a GPON terminal designed for fiber-to-the-home (FTTH) deployments. It features one SC/APC GPON port and one Gigabit Ethernet port, supporting up to 2.488 Gbps downstream and 1.244 Gbps upstream data rates.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking / Fiber

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• Model: XZ000-G3
• 1 × 10/100/1000 Mbps RJ45 LAN port
• 1 × SC/APC GPON port
• GPON Class B+ optical module
• Data rates: 2.488 Gbps downstream / 1.244 Gbps upstream
• Supports ITU-T G.984.x and G.988 standards
• OMCI remote management support
• VLAN support (802.1Q, translation, trunk, transparent modes)
• AES encryption and VLAN-based packet filtering
• IGMP v1/v2/v3 support
• Dynamic Bandwidth Allocation (DBA) support
• Optical diagnostics and power detection
• Dying Gasp and terminal silent mechanism
• Reset button and web-based management

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Interfaces:
• 1 × 10/100/1000 Mbps RJ45
• 1 × SC/APC GPON Port
• 1 × RESET Button

GPON Standards:
• ITU-T G.988
• ITU-T G.984.1 / G.984.2 / G.984.3 / G.984.4

Optical:
• Optical Class: B+
• Transmitter: DFB Laser
• Receiver: Super-TIA
• Wavelength: 1310 nm (Upstream) / 1490 nm (Downstream)
• Maximum Distance: 0–20 km

Networking Standards:
• IEEE 802.3, 802.3u, 802.1p, 802.1Q

Software & Management:
• Web, OMCI, and Telnet management
• Real-time statistics and optical diagnostics
• SN/password authentication
• Up to 16 T-CONTs and 256 GEM ports
• Upstream/Downstream FEC

Power & Physical:
• Power Supply: 9VDC / 0.6A
• Dimensions: 95.0 × 75.0 × 29.3 mm
• Weight: 0.51 lb

Environmental:
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%–90% non-condensing

Certifications:
• CE
• FCC
• RoHS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
