Yealink CP935W-BASE HD Touch Wireless Conference Phone 4-inch Display

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄
Yealink CP935W-BASE HD Wireless Conference Phone W70B 4in Touch DECT WiFi Bluetooth

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Yealink CP935W-BASE wireless conference phone system with W70B DECT base, 4-inch touchscreen, six-microphone 360° pickup, built-in battery, Wi-Fi, Bluetooth 4.2, HD audio, and 5-way conferencing.

𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
VoIP

𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒

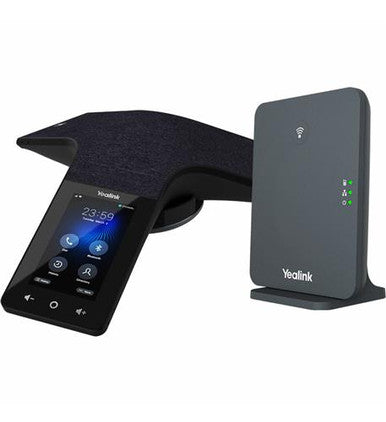

• CP935W wireless conference phone with W70B DECT base station
• Designed for small to medium conference rooms
• 4-inch 480 x 800 capacitive multi-touch display
• Optimal HD audio with full-duplex technology
• Yealink Noise Proof Technology
• Smart Noise Filtering
• (6) built-in microphones for 360-degree voice pickup
• 20-foot (6-meter) microphone pickup range
• 56 mm, 5W integrated speaker
• Switchable DECT and Wi-Fi operating modes
• W70B DECT coverage up to 50 m indoors
• Built-in dual-band 2.4/5 GHz Wi-Fi
• Built-in Bluetooth 4.2
• Built-in 7800 mAh rechargeable battery
• Up to 20 hours talk time under ideal conditions
• Up to 167 hours standby time in DECT mode under ideal conditions
• 5-way conference calling
• Hybrid UC meeting support
• Supports optional CPW25 Bluetooth expansion microphone
• W70B supports up to 20 simultaneous calls
• W70B supports up to 10 DECT cordless handsets
• W70B supports up to 10 SIP accounts
• Acoustic fabric resistant to water, oil, and stains

𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Manufacturer: Yealink
• Model / Part Number: CP935W-BASE
• System Components: CP935W conference phone and W70B base station
• Display: 4-inch 480 x 800 capacitive touchscreen
• Voice Pickup Microphones: (6)
• Voice Pickup Range: 20 ft (6 m)
• Voice Pickup Coverage: 360 degrees
• Speaker Diameter: 56 mm
• Speaker Power: 5W
• Speaker Frequency Range: 100–20,000 Hz
• Speaker Volume: 96 dB at 0.5 m peak volume
• Speakerphone: Full-duplex with AEC
• Echo Cancellation Tail Length: Up to 320 ms
• Audio Codecs: G.722, G.722.1C, G.726, G.729, G.729A, G.723, iLBC, Opus, PCMU, PCMA, AMR
• Conference Calling: Up to 5-way
• CP935W SIP Accounts: 1
• W70B SIP Accounts: Up to 10
• W70B Simultaneous Calls: Up to 20
• W70B DECT Handsets: Up to 10
• DECT Indoor Coverage: Up to 50 m
• Wi-Fi: 2.4 GHz / 5 GHz, IEEE 802.11a/b/g/n
• Bluetooth: 4.2
• USB Interface: (1) USB 2.0 Type-C device port
• Security Slot: (1)
• Battery Capacity: 7800 mAh
• Charging Time: 4 hours
• Talk Time: Up to 20 hours under ideal conditions
• Standby Time: Up to 167 hours in DECT mode under ideal conditions
• Power Consumption: 2.2–6W
• Network Protocol: SIP v1 / v2
• Network Assignment: Static / DHCP
• Network Security: UDP / TCP / TLS
• VLAN: IEEE 802.1Q / 802.1P
• Management: Browser, phone, and auto-provisioning
• Local Phonebook: Up to 1,000 entries
• Dimensions: 288.6 x 285.2 x 63.9 mm
• Color: Black
• Operating Humidity: 10%–90%
• Storage Temperature: -10 to 40°C (14 to 104°F)
• Package Contents: Yealink CP935W IP conference phone, charger cradle, W70B base station, base stand, two Yealink power adapters, Ethernet cable, Quick Start Guide
• Optional Accessory: CPW25 wireless microphone

𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒

• Designed for small to medium conference rooms
• Wireless SIP conferencing through the included W70B DECT base station
• Supports wireless operation without network and power cabling at the conference table when operating in a DECT environment
• Hybrid UC meetings using compatible smartphones and computers through Bluetooth or USB
• Supports up to 5-way conference calls
• Supports expanded voice pickup using an optional CPW25 Bluetooth wireless microphone
