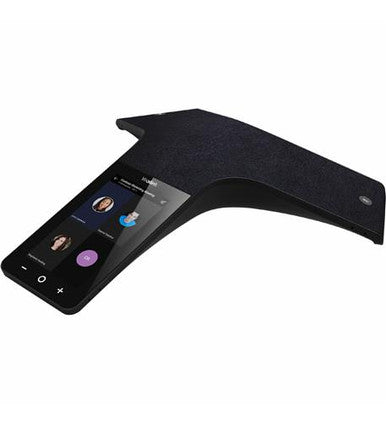

Yealink CP965-TEAMS HD IP Conference Phone 12-Mic 360° Pickup PoE

PRODUCT OVERVIEW

Yealink CP965 HD IP conference phone with 12-microphone 360° voice pickup, dedicated noise-cancellation mic, 5-inch touchscreen, Android 9.0, PoE, Wi-Fi, Bluetooth, and 10-way conferencing.

PRODUCT TYPE

IP Phones

KEY FEATURES

• Android 9.0 operating system
• 5-inch 720 x 1280 capacitive multi-touch display
• Optimal HD audio with full-duplex technology
• Yealink Noise Proof Technology
• Smart Noise Filtering
• (12) built-in microphones for 360-degree voice pickup
• (1) built-in microphone for noise cancellation
• 20-foot (6-meter) microphone pickup range
• 56 mm, 5W integrated speaker
• 10-way conference calling
• Hybrid UC meeting support
• Power over Ethernet using IEEE 802.3at Class 4
• Built-in dual-band 2.4/5 GHz Wi-Fi
• Built-in Bluetooth 4.2
• USB 2.0 Type-A and Type-C connectivity
• Supports one SIP account
• Supports star connection of up to four CP965 units over a wired network
• Supports up to two expansion microphones per CP965

TECHNICAL SPECIFICATIONS

• Brand: Yealink
• Model: CP965-TEAMS
• Product Type: IP Phones
• Manufacturer: Yealink
• Model / Part Number Provided: CP965-TEAMS
• Manufacturer Model: CP965
• Product Type: HD IP Conference Phone
• Operating System: Android 9.0
• Display: 5-inch 720 x 1280 capacitive touchscreen
• Voice Pickup Microphones: (12)
• Noise Cancellation Microphones: (1)
• Voice Pickup Range: 20 ft (6 m)
• Voice Pickup Coverage: 360 degrees
• Speaker Diameter: 56 mm
• Speaker Power: 5W
• Speaker Frequency Range: 100–20,000 Hz
• Speaker Volume: 94 dB at 0.5 m peak volume
• Speakerphone: Full-duplex with AEC
• Echo Cancellation Tail Length: Up to 320 ms
• Audio Codecs: G.722, G.722.1C, G.726, G.729, G.729A, G.723, iLBC, Opus, PCMU, PCMA
• SIP Accounts: 1
• Conference Calling: Up to 10-way
• Ethernet Interface: (1) RJ45 10/100M Ethernet port
• PoE: IEEE 802.3at Class 4
• Wi-Fi: 2.4 GHz / 5 GHz, IEEE 802.11a/b/g/n
• Bluetooth: 4.2
• USB Interfaces: (1) USB 2.0 Type-A device port, (1) USB 2.0 Type-C device port
• Security Slot: (1)
• Network Protocol: IPv4 / IPv6
• QoS: IEEE 802.1p/Q VLAN tagging, Layer 3 ToS, DSCP
• Voice Encryption: SRTP
• Transport Security: TLS 1.3

INTENDED USE / APPLICATIONS

• Designed for medium and large conference rooms
• SIP voice conferencing with up to 10-way conference calls
• Hybrid UC meetings using compatible computers and mobile devices through Bluetooth or USB
• Supports analog PSTN calls through the Yealink CPN10
• Supports expanded conference-room coverage through optional CPW25 or CPW65 wireless microphones
• Supports synchronized sound pickup and playback using a wired star connection of up to four CP965 conference phones
